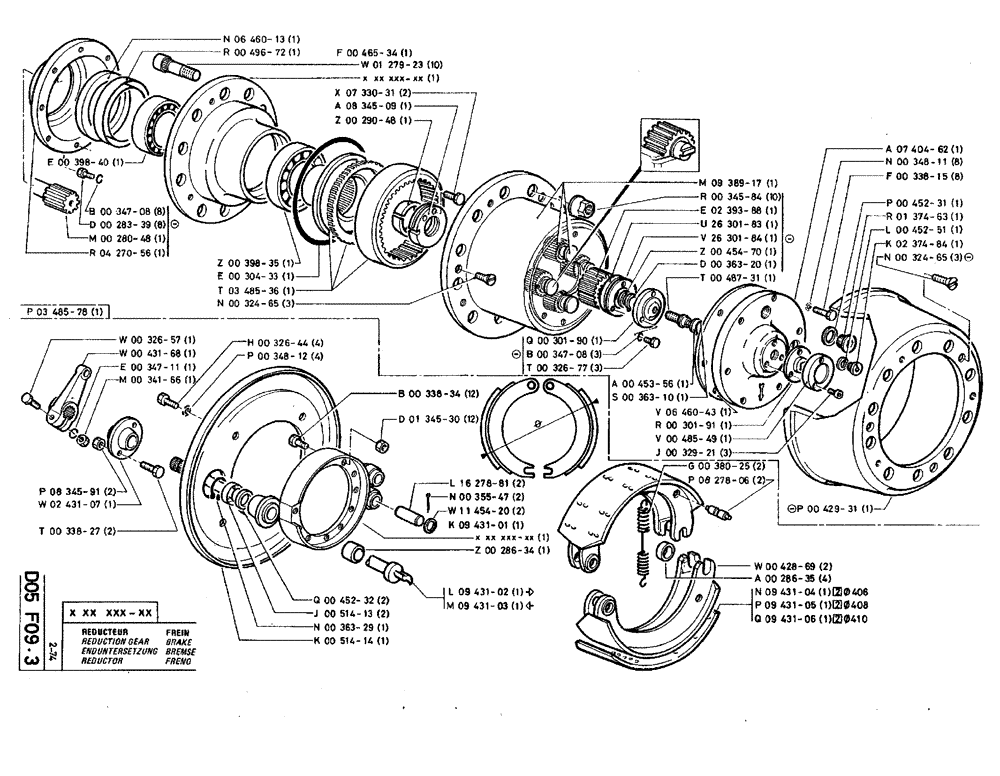

Запчасти Case TY45 (D05 F09.3) - REDUCTION GEAR - BRAKE (04) - UNDERCARRIAGE

w00326-57

C433805

SCREW,Hex, M10 x 60mm, Cl 8.8

1шт.

w00431-68

W43168

LEVER

1шт.

e00347-11

E34711

WASHER

1шт.

m00341-66

100016

NUT,M10 x 1.5, Cl 8

1шт.

p08345-91

P834591

NUT

2шт.

w02431-07

W243107

CYLINDER END CAP

1шт.

t00338-27

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

2шт.

h00326-44

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

p00348-12

P34812

WASHER

4шт.

q00452-32

Q45232

GASKET

2шт.

j00514-13

J51413

CUP

2шт.

n00363-29

N36329

RING, SNAP

RING SNAP

1шт.

k00514-14

K51414

HOOD

1шт.

b00338-34

B33834

SCREW

12шт.

d01345-30

D134530

NUT

12шт.

l16278-81

L1627881

PIN

2шт.

n00355-47

N35547

SPLIT PIN

2шт.

w11454-20

W1145420

WASHER

2шт.

k09431-01

NLS

NO LONGER SERVICED

1шт.

z00286-34

Z28634

BUSHING

1шт.

l09431-02

L943102

CAM

1шт.

Right Hand

1шт.

m09431-03

M943103

CAM

1шт.

Left Hand

1шт.

g00380-25

G38025

COIL SPRING

2шт.

p08278-06

P827806

LARGE PIN

PIN, LARGE

2шт.

w00428-69

W42869

JAW

2шт.

a00286-35

A28635

BUSHING

4шт.

n09431-04

N943104

SET OF BRAKE LININGS

Ø 406

1шт.

Kit Containing 2 Identical Parts

1шт.

p09431-05

P943105

SET OF BRAKE LININGS

Ø 408

1шт.

Kit Containing 2 Identical Parts

1шт.

q09431-06

Q943106

SET OF BRAKE LININGS

Ø 410

1шт.

Kit Containing 2 Identical Parts

1шт.

p03485-78

P348578

REDUCER

1шт.

e00398-40

E39840

BEARING

1шт.

b00347-08

B34708

WASHER

8шт.

Part Not Sold Under the Assembly Number

1шт.

d00283-39

D28339

SCREW

8шт.

Part Not Sold Under the Assembly Number

1шт.

m00280-48

M28048

SHAFT

1шт.

Part Not Sold Under the Assembly Number

1шт.

r04270-56

R427056

DEFLECTOR

1шт.

Part Not Sold Under the Assembly Number

1шт.

n06460-13

N646013

GASKET

1шт.

r00496-72

R49672

OIL SEAL

1шт.

z00398-35

Z39835

BEARING

1шт.

e00304-33

E30433

O-RING

1шт.

t03485-36

T348536

SUPPORT

1шт.

n00324-65

N32465

HEX SOC SCREW,M10 x 25mm, Cl 10.9

3шт.

f00465-34

F46534

HUB

1шт.

w01279-23

W127923

SCREW

10шт.

x07330-31

X733031

SCREW

2шт.

a08345-09

A834509

SLOTTED NUT

1шт.

z00290-48

Z29048

CONE

1шт.

q00301-90

Q30190

NUT

1шт.

Part Not Sold Under the Assembly Number

1шт.

b00347-08

B34708

WASHER

3шт.

Part Not Sold Under the Assembly Number

1шт.

t00326-77

T32677

SCREW

3шт.

Part Not Sold Under the Assembly Number

1шт.

m09389-17

M938917

PINION CARRIER

1шт.

r00345-84

R34584

NUT

10шт.

Part Not Sold Under the Assembly Number

1шт.

e02393-88

E239388

GEAR WHEEL

1шт.

Part Not Sold Under the Assembly Number

1шт.

u26301-83

U2630183

CYLINDER END CAP

1шт.

Part Not Sold Under the Assembly Number

1шт.

v26301-84

V2630184

WASHER

1шт.

Part Not Sold Under the Assembly Number

1шт.

z00454-70

Z45470

WASHER

1шт.

Part Not Sold Under the Assembly Number

1шт.

d00363-20

D36320

SNAP RING

1шт.

Part Not Sold Under the Assembly Number

1шт.

t00487-31

T48731

SCREW

1шт.

a00453-56

A45356

WASHER

1шт.

s00363-10

S36310

SNAP RING

1шт.

v06460-43

V646043

GASKET

1шт.

r00301-91

CASR30191

RETAINER

1шт.

v00485-49

V48549

END FITTING

1шт.

j00329-21

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

3шт.

a07404-62

A740462

COVER

1шт.

n00348-11

N34811

WASHER

8шт.

f00338-15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

p00452-31

P45231

COMPOSITE SEAL

1шт.

r01374-63

R137463

PLUG

1шт.

l00452-51

L45251

COMPOSITE SEAL

1шт.

k02374-84

K237484

PLUG

1шт.

n00324-65

N32465

HEX SOC SCREW,M10 x 25mm, Cl 10.9

3шт.

Part Not Sold Under the Assembly Number

1шт.

p00429-31

P42931

BRAKE DRUM

DRUM, BRAKE

1шт.

Part Not Sold Under the Assembly Number

1шт.
