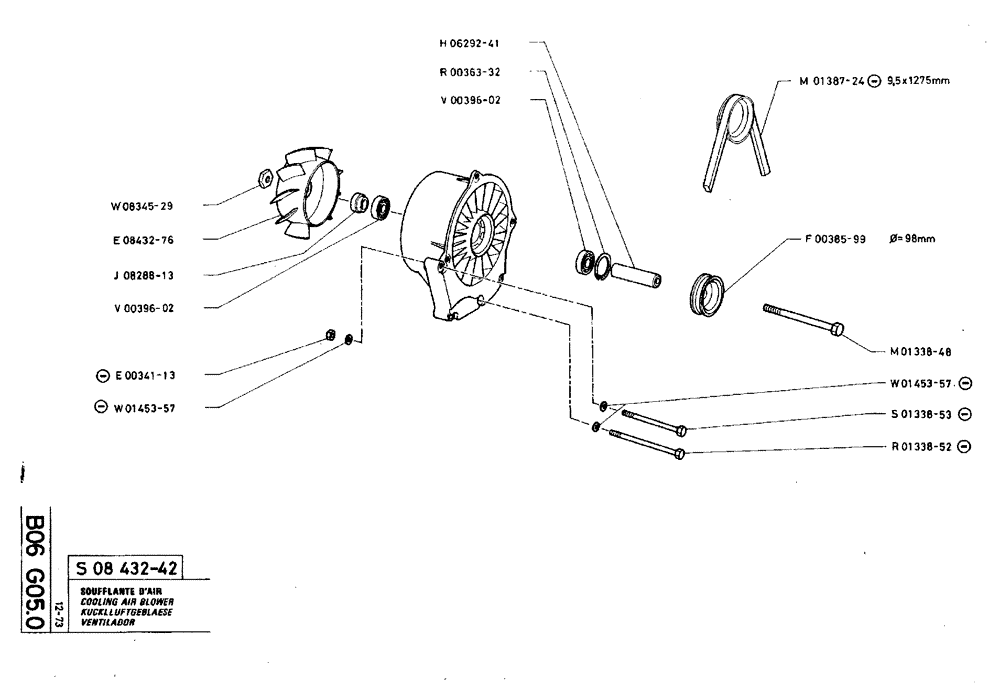

Запчасти Case TY45 (B06 G05.0) - COOLING AIR BLOWER (01) - ENGINE

s08432-42

S843242

VENTILATOR

1шт.

w08345-29

W834529

NUT

1шт.

e08432-76

E843276

VENTILATOR

1шт.

j08288-13

J828813

BUSHING, LARGE

SPARE PART

1шт.

v00396-02

VIBRO2000

CATALOG

1шт.

e00341-13

43362

NUT,M8 x 1.25, Cl 10

1шт.

Part Not Sold Under the Assembly Number

1шт.

w01453-57

W145357

WASHER

1шт.

Part Not Sold Under the Assembly Number

1шт.

h06292-41

H629241

SPACER

1шт.

r00363-32

R36332

RING, SNAP

RING SNAP

1шт.

v00396-02

V39602

BEARING

1шт.

m01387-24

M138724

BELT

9,5 x 1275 mm

1шт.

Part Not Sold Under the Assembly Number

1шт.

f00385-99

F38599

PULLEY

SPARE PART Ø 98 mm

1шт.

m01338-48

M133848

SCREW

1шт.

w01453-57

W145357

WASHER

1шт.

Part Not Sold Under the Assembly Number

1шт.

s01338-53

S133853

SCREW

1шт.

Part Not Sold Under the Assembly Number

1шт.

r01338-52

R133852

SCREW

1шт.

Part Not Sold Under the Assembly Number

1шт.
