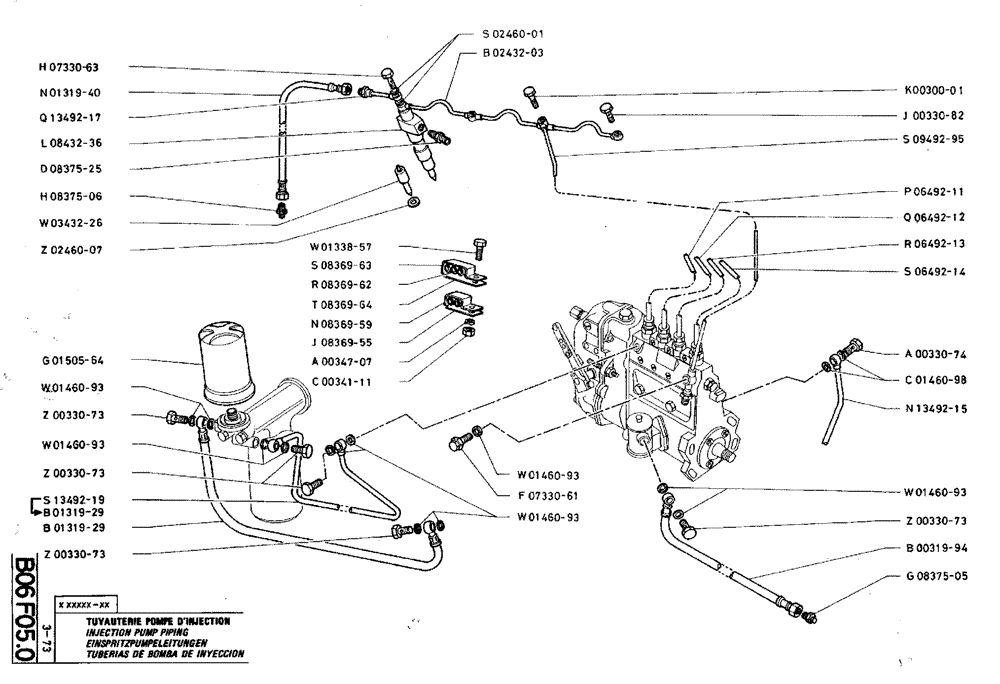

Запчасти Case TY45 (B06 F05.0) - INJECTION PUMP PIPING (01) - ENGINE

h07330-63

H733063

BANJO BOLT

1шт.

n01319-40

N131940

HOSE

1шт.

q13492-17

Q1349217

RETURN PIPE

1шт.

l08432-36

L843236

NOZZLE HOLDER

1шт.

d08375-25

D837525

FITTING

1шт.

h08375-06

H837506

FITTING

1шт.

w03432-26

W343226

NOZZLE INJECTION

1шт.

z02460-07

Z246007

RUBBER SEAL

1шт.

g01505-64

G150564

CARTRIDGE

1шт.

w01460-93

W146093

WASHER, SEALING

SEAL WASHER

1шт.

z00330-73

Z33073

BANJO BOLT

1шт.

w01460-93

W146093

WASHER, SEALING

SEAL WASHER

1шт.

z00330-73

Z33073

BANJO BOLT

1шт.

s13492-19

S1349219

RETURN PIPE

1шт.

b01319-29

B131929

HOSE

1шт.

Replaces S13492-19

1шт.

z00330-73

Z33073

BANJO BOLT

1шт.

w01338-57

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.

s08369-63

S836963

CONNECTING STRIP

1шт.

r08369-62

R836962

TRANSMISSION SLEEVE

1шт.

t08369-64

T836964

LARGE PLATE

PLATE, LARGE

1шт.

n08369-59

N836959

CONNECTING STRIP

1шт.

j08369-55

J836955

LARGE PLATE

PLATE, LARGE

1шт.

a00347-07

A34707

WASHER

1шт.

c00341-11

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

s02460-01

S246001

COPPER SEAL

1шт.

b02432-03

B243203

PIPE

1шт.

w01460-93

W146093

WASHER, SEALING

SEAL WASHER

1шт.

f07330-61

F733061

VALVE POPPET

1шт.

k00300-01

K30001

JACK SCREW

SPARE PART

1шт.

j00330-82

J33082

BANJO BOLT

1шт.

s09492-95

S949295

TUBE

1шт.

p06492-11

P649211

PIPE

1шт.

q06492-12

Q649212

PIPE

1шт.

r06492-13

R649213

PIPE

1шт.

s06492-14

S649214

PIPE

1шт.

a00330-74

A33074

BANJO BOLT

1шт.

c01460-98

C146098

GASKET

1шт.

n13492-15

N1349215

RETURN PIPE

1шт.

w0146093

W146093

WASHER, SEALING

SEAL WASHER

1шт.

z00330-73

Z33073

BANJO BOLT

1шт.

b00319-94

B31994

HOSE

1шт.

g08375-05

G837505

SUN VISOR

1шт.
