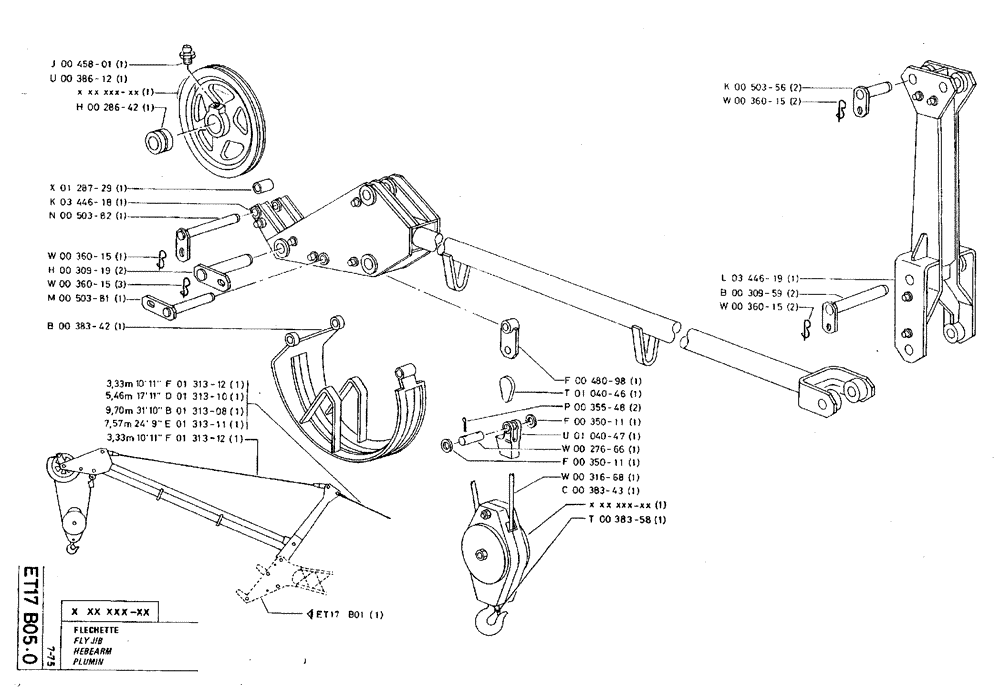

Запчасти Case TY45 (ET17 B05.0) - FLY JIB (18) - ATTACHMENT ACCESSORIES

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

1шт.

u00386-12

U38612

PULLEY

1шт.

h00286-42

H28642

BRONZE BUSHING

SPARE PART

1шт.

x01287-29

X128729

BUSHING

1шт.

k03446-18

K344618

FLY JIB

1шт.

n00503-82

N50382

LARGE PIN

PIN, LARGE

1шт.

w00360-15

W36015

SPLIT PIN/SAFETY PIN

1шт.

h00309-19

H30919

PIN

2шт.

w00360-15

W36015

SPLIT PIN/SAFETY PIN

3шт.

m00503-81

M50381

LARGE PIN

PIN, LARGE

1шт.

b00383-42

B38342

ROPE GUIDE

1шт.

f01313-12

F131312

SLING

3,33 m (10' 11")

1шт.

d01313-10

D131310

SLING

5,46 m (17' 11")

1шт.

b01313-08

B131308

SLING

9,70 m (31' 10")

1шт.

e01313-11

E131311

7,57 m (24' 9")

1шт.

f01313-12

F131312

SLING

3,33 m (10' 11")

1шт.

f00480-98

F48098

WELDABLE LUG

1шт.

t01040-46

T104046

SHANK, BUCKET TOOTH

SPARE PART

1шт.

p00355-48

P35548

SPLIT PIN/SAFETY PIN

2шт.

f00350-11

F35011

WASHER

1шт.

u01040-47

U104047

ROPE ANCHOR BOX

1шт.

w00276-66

W27666

LARGE PIN

SPARE PART

1шт.

f00350-11

F35011

WASHER

1шт.

w00316-68

W31668

CABLE

1шт.

c00383-43

C38343

PULLEY BLOCK

1шт.

t00383-58

T38358

SAFETY CATCH HOOK

1шт.

k00503-56

K50356

PIN

2шт.

w00360-15

W36015

SPLIT PIN/SAFETY PIN

2шт.

l03446-19

L344619

POLE

1шт.

b00309-59

B30959

PIN

2шт.

w00360-15

W36015

SPLIT PIN/SAFETY PIN

2шт.
