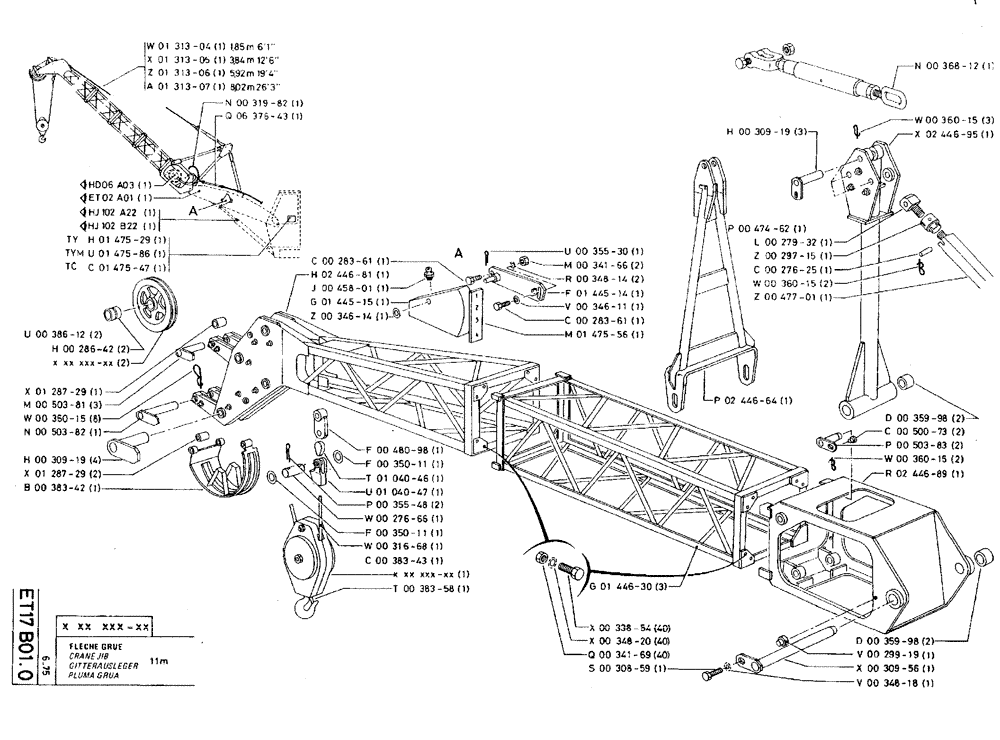

Запчасти Case TY45 (ET17 B01.0) - CRANE JIB - 11 M (18) - ATTACHMENT ACCESSORIES

w01313-04

W131304

SLING

1,85 m (6' 1")

1шт.

x01313-05

X131305

SLING

3,84 m (12' 6")

1шт.

z01313-06

Z131306

SLING

5,92 m (19' 4")

1шт.

a01313-07

A131307

SLING

8,02 m (26' 3")

1шт.

n00319-82

N31982

HYDRAULIC HOSE

1шт.

q06376-43

Q637643

PIPE

1шт.

h01475-29

H147529

ADHESIVE

TY

1шт.

u01475-86

U147586

ADHESIVE

TYM

1шт.

c01475-47

C147547

ADHESIVE

TC

1шт.

u00386-12

U38612

PULLEY

2шт.

h00286-42

H28642

BRONZE BUSHING

SPARE PART

2шт.

x01287-29

X128729

BUSHING

1шт.

m00503-81

M50381

LARGE PIN

PIN, LARGE

3шт.

w00360-15

W36015

SPLIT PIN/SAFETY PIN

8шт.

n00503-82

N50382

LARGE PIN

PIN, LARGE

1шт.

h00309-19

H30919

PIN

4шт.

x01287-29

X128729

BUSHING

2шт.

b00383-42

B38342

ROPE GUIDE

1шт.

c00283-61

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

h02446-81

H244681

JIB HEAD SECTION

1шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

1шт.

g01445-15

G144515

SECTOR

1шт.

z00346-14

Z34614

WASHER

1шт.

f00480-98

F48098

WELDABLE LUG

1шт.

f00350-11

F35011

WASHER

1шт.

t01040-46

T104046

SHANK, BUCKET TOOTH

SPARE PART

1шт.

u01040-47

U104047

ROPE ANCHOR BOX

1шт.

p00355-48

P35548

SPLIT PIN/SAFETY PIN

2шт.

w00276-66

W27666

LARGE PIN

SPARE PART

1шт.

f00350-11

F35011

WASHER

1шт.

w00316-68

W31668

CABLE

1шт.

c00383-43

C38343

PULLEY BLOCK

1шт.

t00383-58

T38358

SAFETY CATCH HOOK

1шт.

u00355-30

U35530

SPLIT PIN

1шт.

m00341-66

100016

NUT,M10 x 1.5, Cl 8

2шт.

r00348-14

R34814

WASHER

2шт.

f01445-14

F144514

SUPPORT

1шт.

v00346-11

V34611

WASHER

1шт.

c00283-61

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

m01475-56

M147556

ADHESIVE

1шт.

g01446-30

G144630

ELEMENT

3шт.

x00338-54

X33854

SCREW,Hex, M16 x 50, 8.8

40шт.

x00348-20

X34820

WASHER

40шт.

q00341-69

Q34169

NUT

40шт.

s00308-59

S30859

SCREW

1шт.

h00309-19

H30919

PIN

3шт.

p00474-62

P47462

TRUSS ROD

1шт.

l00279-32

L27932

CYLINDER END CAP

1шт.

z00297-15

Z29715

COUPLING

1шт.

c00276-25

NLS

NO LONGER SERVICED

SPARE PART

1шт.

w00360-15

W36015

SPLIT PIN/SAFETY PIN

2шт.

z00477-01

Z47701

BODY

1шт.

p02446-64

P244664

ARM

1шт.

n00368-12

N36812

CLEVIS COUPLING

1шт.

w00360-15

W36015

SPLIT PIN/SAFETY PIN

3шт.

x02446-95

X244695

TRUSS ROD

1шт.

d00359-98

D35998

BUSHING

2шт.

c00500-73

C50073

SHAFT LOCK

2шт.

p00503-83

P50383

LARGE PIN

PIN, LARGE

2шт.

w00360-15

W36015

SPLIT PIN/SAFETY PIN

2шт.

r02446-89

R244689

JIB FOOT SECTION

1шт.

d00359-98

D35998

BUSHING

2шт.

v00299-19

V29919

FELT SEAL

1шт.

x00309-56

X30956

PIN

1шт.

v00348-18

V34818

WASHER

1шт.
