(ET17 A01.0) - HOOK ADAPTION - BACKHOE STICK, BOOM, STICK, GRAB DIPPERSTICK

Запчасти Case TY45 (ET17 A01.0) - HOOK ADAPTION - BACKHOE STICK, BOOM, STICK, GRAB DIPPERSTICK (18) - ATTACHMENT ACCESSORIES

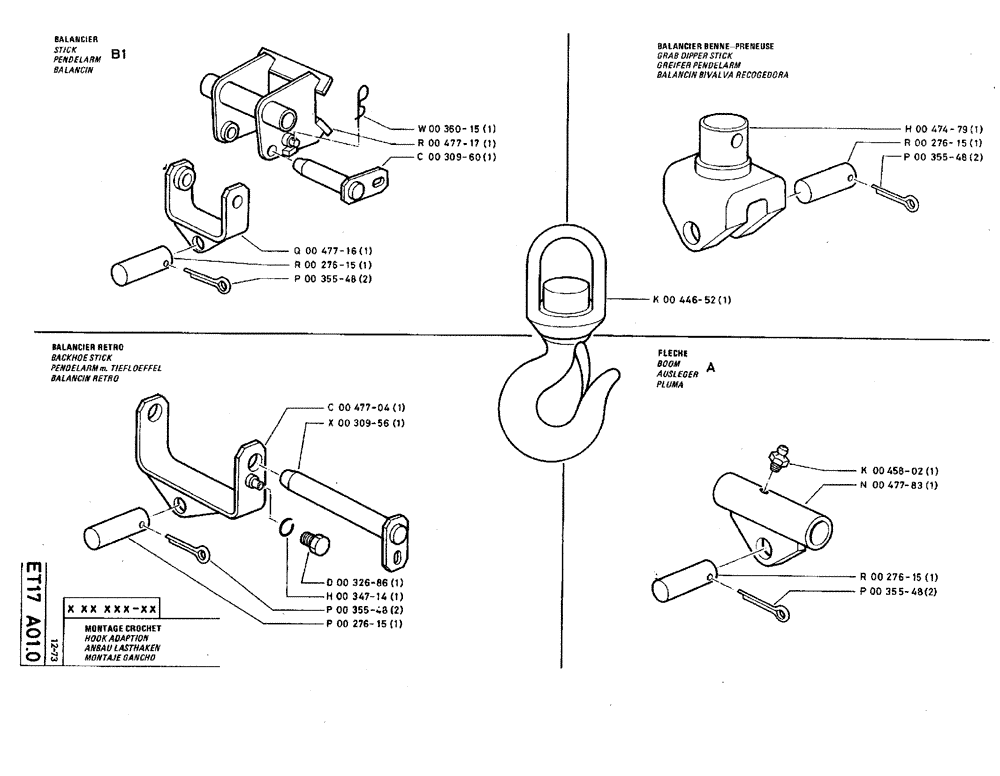

Схема запчастей Case TY45 - (ET17 A01.0) - HOOK ADAPTION - BACKHOE STICK, BOOM, STICK, GRAB DIPPERSTICK (18) - ATTACHMENT ACCESSORIES
k00446-52
q00477-16
r00276-15
r00276-15
p00355-48
k00458-02
c00477-04
p00355-48
r00477-17
n00477-83
w00360-15
d00326-86
p00355-48
h00474-79
x00309-56
c00309-60
h00347-14
p00276-15
p00355-48
r00276-15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

c00477-04

C47704

CLEVIS

backhoe stick

1шт.

x00309-56

X30956

PIN

1шт.

d00326-86

86509597

BOLT,Hex, M30 x 14mm, Cl 8.8

1шт.

h00347-14

H34714

WASHER

1шт.

p00355-48

P35548

SPLIT PIN/SAFETY PIN

2шт.

p00276-15

P27615

PIN

1шт.

k00458-02

K45802

LUBE NIPPLE

1шт.

n00477-83

N47783

CLEVIS

boom

1шт.

r00276-15

R27615

PIN

1шт.

p00355-48

P35548

SPLIT PIN/SAFETY PIN

2шт.

w00360-15

W36015

SPLIT PIN/SAFETY PIN

1шт.

b00477-17

B47717

SPARE PART stick

1шт.

c00309-60

C30960

PIN

1шт.

q00477-16

Q47716

CLEVIS

1шт.

r00276-15

R27615

PIN

1шт.

p00355-48

P35548

SPLIT PIN/SAFETY PIN

2шт.

h00474-79

H47479

CLEVIS

grab dipperstick

1шт.

r00276-15

R27615

PIN

1шт.

p00355-48

P35548

SPLIT PIN/SAFETY PIN

2шт.

k00446-52

K44652

SWIVEL HOOK

1шт.
