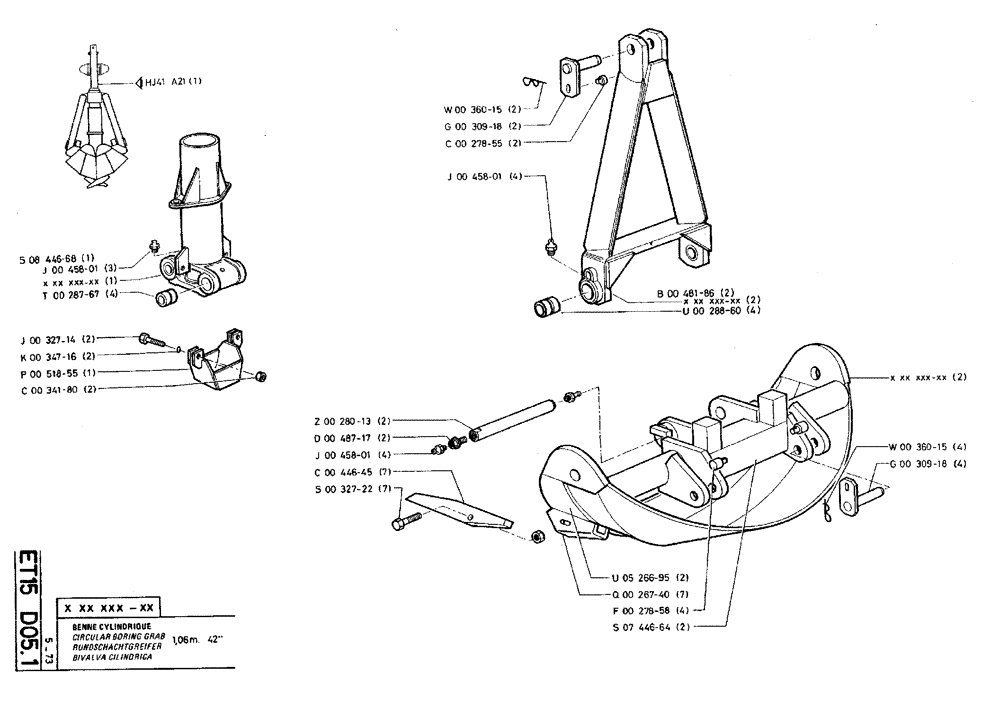

Запчасти Case TY45 (ET15 D05.1) - CIRCULAR BORING GRAB - 1,06 M (42") (18) - ATTACHMENT ACCESSORIES

s08446-68

S844668

LINKAGE YOKE

1шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

3шт.

t00287-67

T28767

BUSHING,40.2mm ID x 55mm OD x 45mm L

4шт.

j00327-14

E433830

BOLT,Hex, M18 x 40

2шт.

k00347-16

NLS

NO LONGER SERVICED

2шт.

p00518-55

P51855

PROTECTOR

1шт.

c00341-80

C34180

NUT

2шт.

z00280-13

Z28013

PIN

2шт.

d00487-17

D48717

SCREW

2шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

4шт.

c00446-45

C44645

TOOTH

7шт.

s00327-22

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

7шт.

w00360-15

W36015

SPLIT PIN/SAFETY PIN

2шт.

g00309-18

G30918

PIN

2шт.

c00278-55

C27855

SHAFT LOCK

2шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

4шт.

b00481-86

B48186

ARM

2шт.

u00288-60

U28860

BUSHING

4шт.

u05266-95

U526695

BLADE

2шт.

q00267-40

Q26740

CASE

7шт.

f00278-58

F27858

SHAFT LOCK

4шт.

s07446-64

S744664

BEAM

2шт.

w00360-15

W36015

SPLIT PIN/SAFETY PIN

4шт.

g00309-18

G30918

PIN

4шт.
