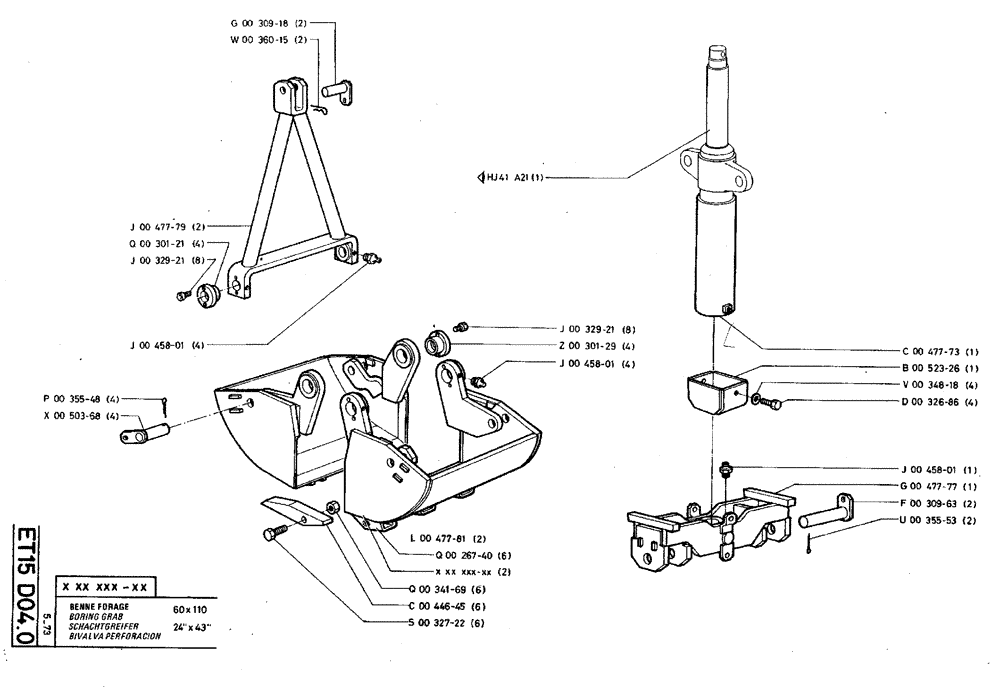

Запчасти Case TY45 (ET15 D04.0) - BORING GRAB - 60 X 110 (24" X 43") (18) - ATTACHMENT ACCESSORIES

g00309-18

G30918

PIN

2шт.

w00360-15

W36015

SPLIT PIN/SAFETY PIN

2шт.

j00477-79

J47779

ARM

2шт.

q00301-21

Q30121

BUSHING

4шт.

j00329-21

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

8шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

4шт.

p00355-48

P35548

SPLIT PIN/SAFETY PIN

4шт.

x00503-68

X50368

PIN

4шт.

l00477-81

L47781

SHELL

2шт.

q00267-40

Q26740

CASE

6шт.

q00341-69

Q34169

NUT

6шт.

c00446-45

C44645

TOOTH

6шт.

s00327-22

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

6шт.

j00329-21

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

8шт.

z00301-29

Z30129

BUSHING

4шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

4шт.

c00477-73

C47773

PROTECTOR

1шт.

b00523-26

B52326

PROTECTOR

1шт.

v00348-18

V34818

WASHER

4шт.

d00326-86

P33869

BOLT,Hex, M14 x 30

4шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

1шт.

g00477-77

G47777

LINKAGE YOKE

1шт.

f00309-63

F30963

PIN

2шт.

u00355-53

U35553

SPLIT PIN/SAFETY PIN

2шт.
