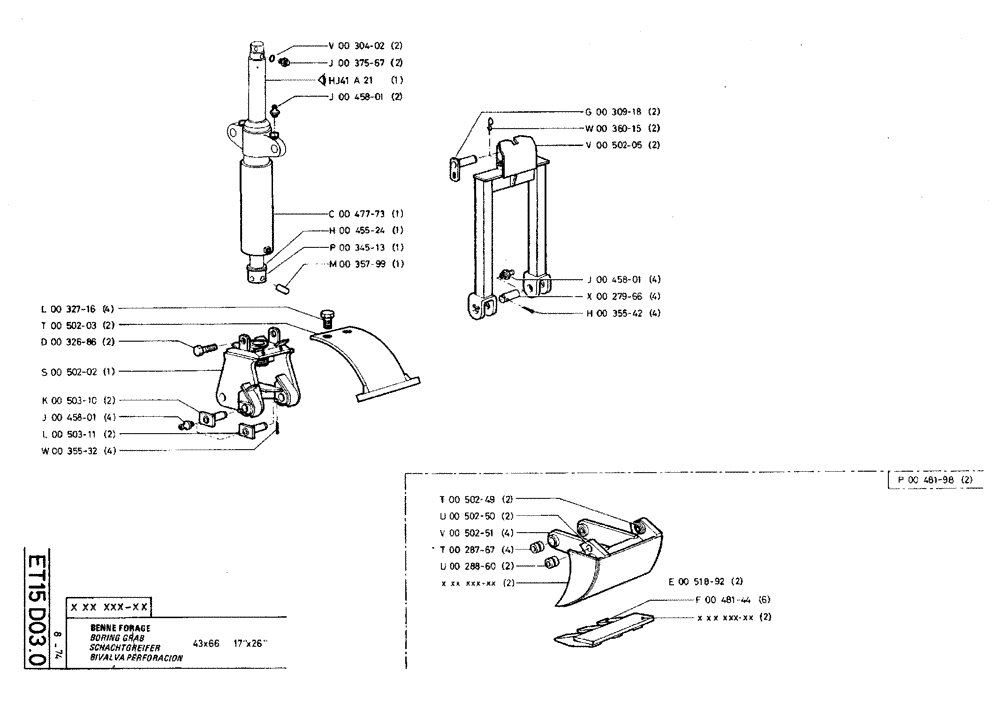

Запчасти Case TY45 (ET15 D03.0) - BORING GRAB - 43 X 66 (17" X 26") (18) - ATTACHMENT ACCESSORIES

l00327-16

L32716

SCREW

4шт.

t00502-03

T50203

KNOCKER

2шт.

d00326-86

86509597

BOLT,Hex, M30 x 14mm, Cl 8.8

2шт.

s00502-02

S50202

LINKAGE YOKE

1шт.

k00503-10

K50310

PIN

2шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

4шт.

l00503-11

L50311

PIN

2шт.

w00355-32

W35532

SPLIT PIN/SAFETY PIN

4шт.

v00304-02

V30402

O-RING,2.5mm Thk x 22.5mm ID, 80 Duro

2шт.

j00375-67

J37567

SUN VISOR

2шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

c00477-73

C47773

PROTECTOR

1шт.

h00455-24

H45524

WASHER

1шт.

p00345-13

P34513

SLOTTED NUT

1шт.

m00357-99

M35799

SPLIT PIN/SAFETY PIN

1шт.

g00309-18

G30918

PIN

2шт.

w00360-15

W36015

SPLIT PIN/SAFETY PIN

2шт.

v00502-05

V50205

ARM

2шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

4шт.

x00279-66

X27966

PIN

4шт.

h00355-42

H35542

SPLIT PIN

4шт.

p00481-98

P48198

SHELL

2шт.

t00502-49

T50249

WELDABLE LUG

2шт.

u00502-50

U50250

WELDABLE LUG

2шт.

v00502-51

V50251

BOLT

4шт.

t00287-67

T28767

BUSHING,40.2mm ID x 55mm OD x 45mm L

4шт.

u00288-60

U28860

BUSHING

2шт.

e00518-92

E51892

BLADE

2шт.

f00481-44

F48144

TOOTH

6шт.
