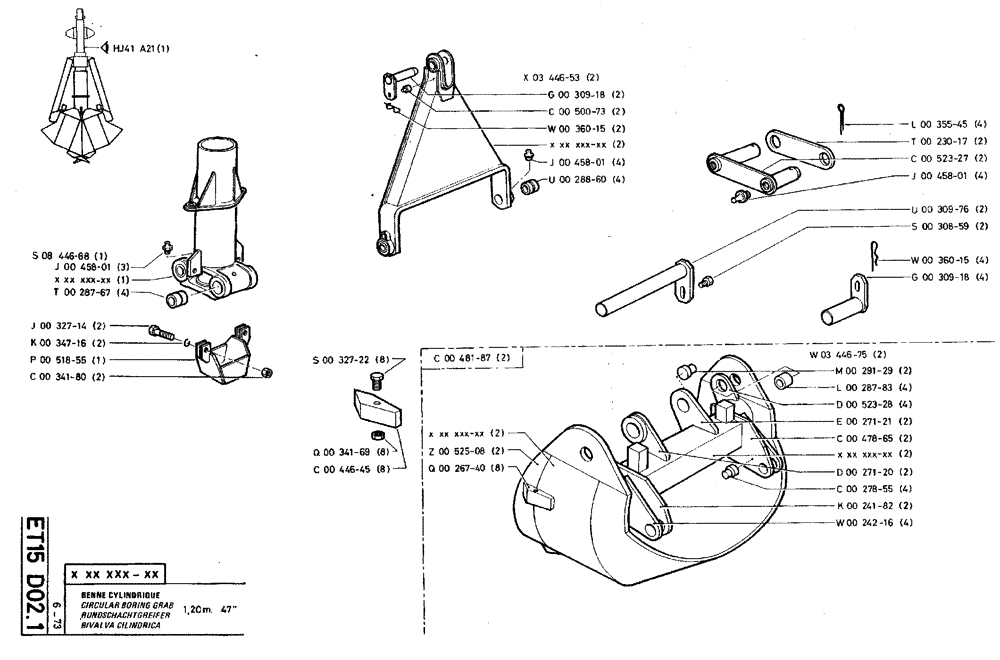

Запчасти Case TY45 (ET15 D02.1) - CIRCULAR BORING GRAB - 1,20 M (47") (18) - ATTACHMENT ACCESSORIES

s08446-68

S844668

LINKAGE YOKE

1шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

3шт.

t00287-67

T28767

BUSHING,40.2mm ID x 55mm OD x 45mm L

4шт.

j00327-14

E433830

BOLT,Hex, M18 x 40

2шт.

k00347-16

NLS

NO LONGER SERVICED

2шт.

p00518-55

P51855

PROTECTOR

1шт.

c00341-80

C34180

NUT

2шт.

s00327-22

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

8шт.

q00341-69

Q34169

NUT

8шт.

c00446-45

C44645

TOOTH

8шт.

x03446-53

X344653

ARM

2шт.

g00309-18

G30918

PIN

2шт.

c00500-73

C50073

SHAFT LOCK

2шт.

w00360-15

W36015

SPLIT PIN/SAFETY PIN

2шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

4шт.

u00288-60

U28860

BUSHING

4шт.

l00355-45

CASL35545

CAPSCREW

4шт.

t00230-17

T23017

PLATE

2шт.

c00523-27

C52327

PITMAN

2шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

4шт.

u00309-76

U30976

PIN

2шт.

s00308-59

S30859

SCREW

2шт.

w00360-15

W36015

SPLIT PIN/SAFETY PIN

4шт.

g00309-18

G30918

PIN

4шт.

c00481-87

C48187

SHELL

2шт.

z00525-08

Z52508

BLADE

2шт.

q00267-40

Q26740

CASE

8шт.

w03446-75

W344675

BEAM

2шт.

m00291-29

M29129

SHAFT LOCK

2шт.

l00287-83

L28783

BUSHING

4шт.

d00523-28

D52328

WELDABLE LUG

4шт.

e00271-21

E27121

WELDABLE LUG

2шт.

c00478-65

C47865

WELDABLE LUG

2шт.

d00271-20

D27120

WELDABLE LUG

2шт.

c00278-55

C27855

SHAFT LOCK

4шт.

k00241-82

K24182

WELDABLE LUG

2шт.

w00242-16

W24216

WELDABLE LUG

4шт.
