(ET15 D01.1) - CIRCULAR BORING GRAB - 0,90 M (36")

Запчасти Case TY45 (ET15 D01.1) - CIRCULAR BORING GRAB - 0,90 M (36") (18) - ATTACHMENT ACCESSORIES

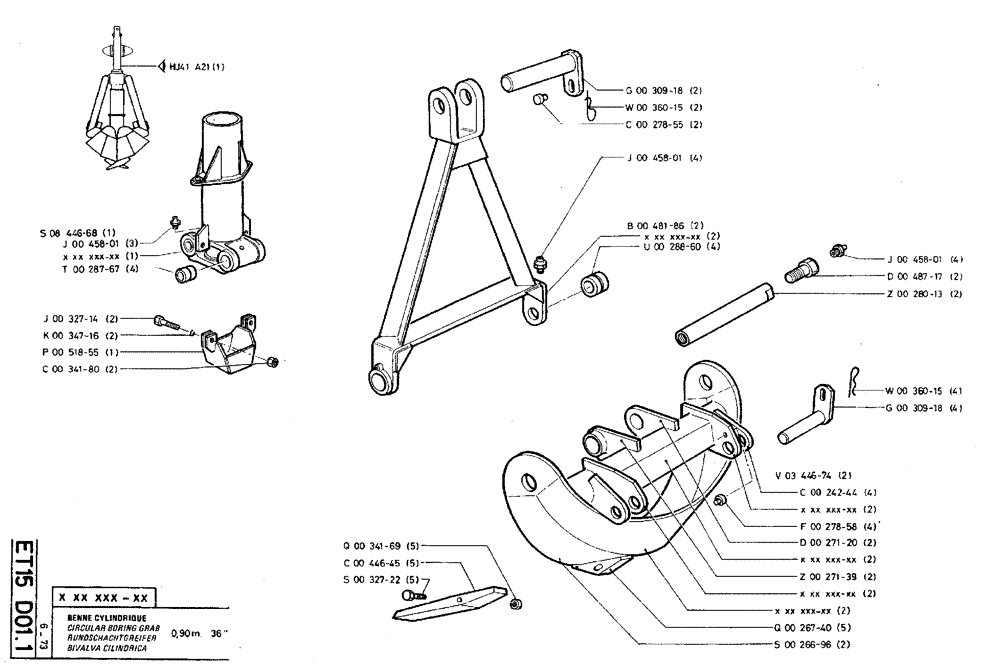

Схема запчастей Case TY45 - (ET15 D01.1) - CIRCULAR BORING GRAB - 0,90 M (36") (18) - ATTACHMENT ACCESSORIES
s00327-22
j00458-01
g00309-18
w00360-15
j00458-01
t00287-67
z00271-39
s00266-96
c00341-80
g00309-18
q00267-40
d00487-17
s08446-68
b00481-86
q00341-69
j00458-01
d00271-20
p00518-55
v03446-74
k00347-16
w00360-15
z00280-13
u00288-60
c00242-44
c00278-55
j00327-14
c00446-45
f00278-58
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

s08446-68

S844668

LINKAGE YOKE

1шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

3шт.

t00287-67

T28767

BUSHING,40.2mm ID x 55mm OD x 45mm L

4шт.

j00327-14

E433830

BOLT,Hex, M18 x 40

2шт.

k00347-16

NLS

NO LONGER SERVICED

2шт.

p00518-55

P51855

PROTECTOR

1шт.

c00341-80

C34180

NUT

2шт.

q00341-69

Q34169

NUT

5шт.

c00446-45

C44645

TOOTH

5шт.

s00327-22

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

5шт.

g00309-18

G30918

PIN

2шт.

w00360-15

W36015

SPLIT PIN/SAFETY PIN

2шт.

c00278-55

C27855

SHAFT LOCK

2шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

4шт.

b00481-86

B48186

ARM

2шт.

u00288-60

U28860

BUSHING

4шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

4шт.

d00487-17

D48717

SCREW

2шт.

z00280-13

Z28013

PIN

2шт.

w00360-15

W36015

SPLIT PIN/SAFETY PIN

4шт.

g00309-18

G30918

PIN

4шт.

v03446-74

V344674

BEAM

2шт.

c00242-44

C24244

WELDABLE LUG

4шт.

f00278-58

F27858

SHAFT LOCK

4шт.

d00271-20

D27120

WELDABLE LUG

2шт.

z00271-39

Z27139

WELDABLE LUG

2шт.

q00267-40

Q26740

CASE

5шт.

s00266-96

S26696

BLADE

2шт.
