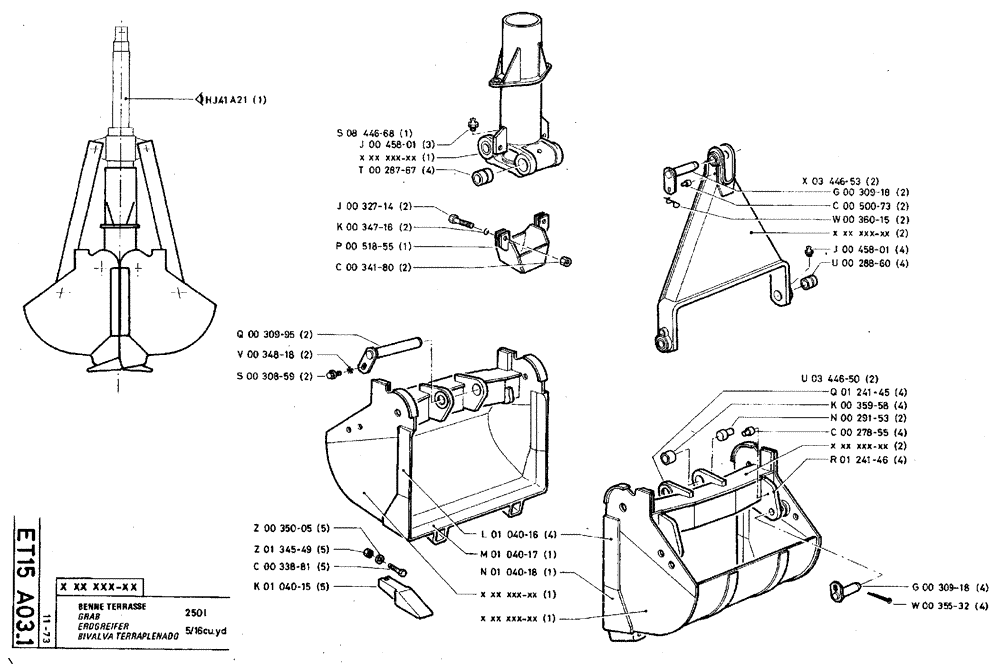

Запчасти Case TY45 (ET15 A03.1) - GRAB - 250 L (5/16 CU. YD.) (18) - ATTACHMENT ACCESSORIES

s08446-68

S844668

LINKAGE YOKE

1шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

3шт.

t00287-67

T28767

BUSHING,40.2mm ID x 55mm OD x 45mm L

4шт.

j00327-14

E433830

BOLT,Hex, M18 x 40

2шт.

k00347-16

NLS

NO LONGER SERVICED

2шт.

p00518-55

P51855

PROTECTOR

1шт.

c00341-80

34180

SPARE PART

2шт.

q00309-95

Q30995

PIN

2шт.

v00348-18

V34818

WASHER

2шт.

s00308-59

S30859

SCREW

2шт.

z00350-05

Z35005

WASHER

5шт.

z01345-49

Z134549

NUT

5шт.

c00338-81

86523012

BOLT,Hex, M14 x 2 x 60mm, Cl 8.8

5шт.

k01040-15

K104015

TOOTH

5шт.

l01040-16

L104016

STIFFENER

4шт.

m01040-17

M104017

BLADE

1шт.

n01040-18

N104018

BLADE

1шт.

x03446-53

X344653

ARM

2шт.

g00309-18

G30918

PIN

2шт.

c00500-73

C50073

SHAFT LOCK

2шт.

w00360-15

W36015

SPLIT PIN/SAFETY PIN

2шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

4шт.

u00288-60

U28860

BUSHING

4шт.

u03446-50

U344650

BEAM

2шт.

q01241-45

Q124145

WELDABLE LUG

4шт.

k00359-58

K35958

BUSHING

4шт.

n00291-53

N29153

SHAFT LOCK

2шт.

c00278-55

C27855

SHAFT LOCK

4шт.

r01241-46

R124146

WELDABLE LUG

4шт.

g00309-18

G30918

PIN

4шт.

w00355-32

W35532

SPLIT PIN/SAFETY PIN

4шт.
