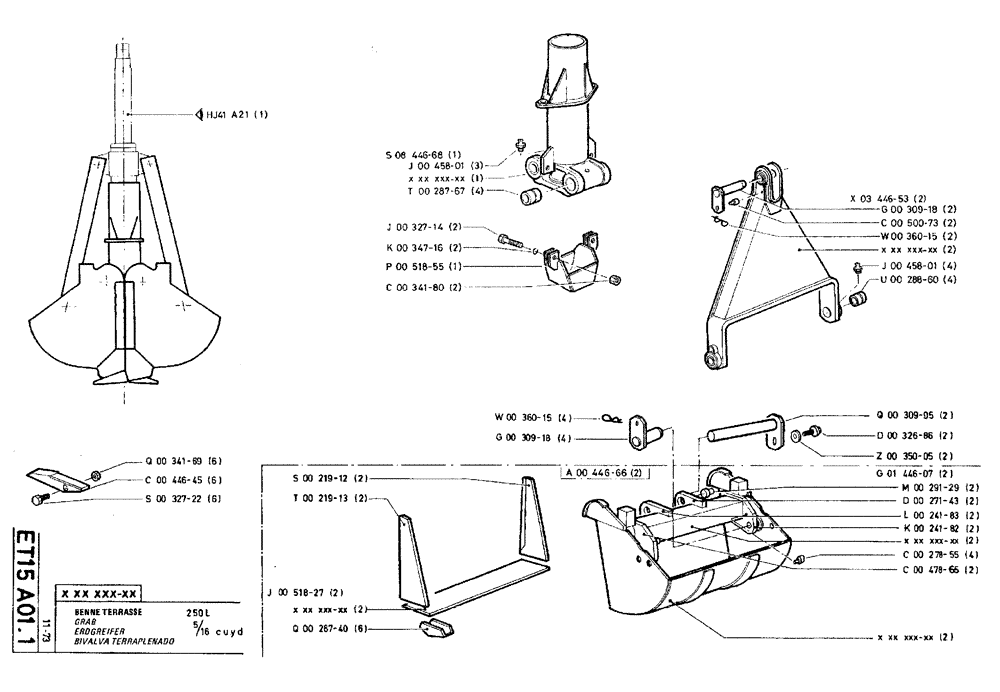

Запчасти Case TY45 (ET15 A01.1) - GRAB - 250 L (5/16 CU. YD.) (18) - ATTACHMENT ACCESSORIES

q00341-69

Q34169

NUT

6шт.

c00446-45

C44645

TOOTH

6шт.

s00327-22

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

6шт.

s08446-68

S844668

LINKAGE YOKE

1шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

3шт.

t00287-67

T28767

BUSHING,40.2mm ID x 55mm OD x 45mm L

4шт.

j00327-14

E433830

BOLT,Hex, M18 x 40

2шт.

k00347-16

NLS

NO LONGER SERVICED

2шт.

p00518-55

P51855

PROTECTOR

1шт.

c00341-80

C34180

NUT

2шт.

w00360-15

W36015

SPLIT PIN/SAFETY PIN

4шт.

g00309-18

G30918

PIN

4шт.

x03446-53

X344653

ARM

2шт.

g00309-18

G30918

PIN

2шт.

c00500-73

C50073

SHAFT LOCK

2шт.

w00360-15

W36015

SPLIT PIN/SAFETY PIN

2шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

4шт.

u00288-60

U28860

BUSHING

4шт.

q00309-95

Q30995

PIN

2шт.

d00326-86

P33869

BOLT,Hex, M14 x 30

2шт.

z00350-05

Z35005

WASHER

2шт.

a00446-66

A44666

SHELL

2шт.

s00219-12

S21912

BLADE

2шт.

t00219-13

T21913

BLADE

2шт.

j00518-27

J51827

BLADE

2шт.

q00267-40

Q26740

CASE

6шт.

g01446-07

G144607

BEAM

2шт.

m00291-29

M29129

SHAFT LOCK

2шт.

d00271-43

D27143

WELDABLE LUG

2шт.

l00241-83

L24183

WELDABLE LUG

SPARE PART

2шт.

k00241-82

K24182

WELDABLE LUG

2шт.

c00278-55

C27855

SHAFT LOCK

4шт.

c00478-65

C47865

WELDABLE LUG

2шт.
