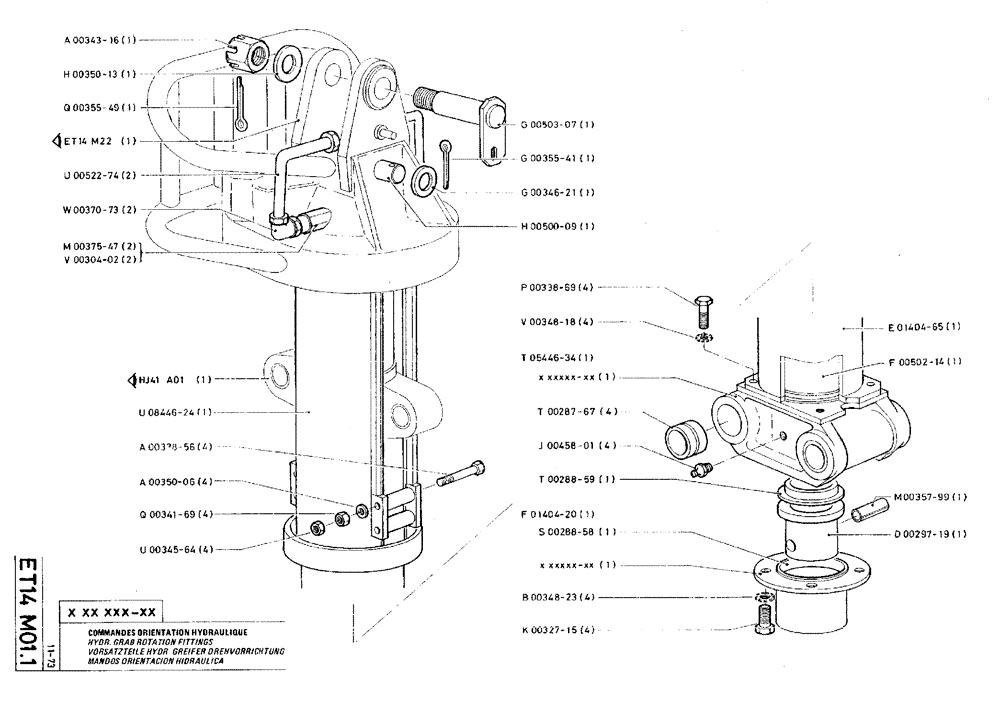

Запчасти Case TY45 (ET14 M01.1) - HYDR. GRAB ROTATION FITTINGS (18) - ATTACHMENT ACCESSORIES

a00343-16

A34316

BRACKET

1шт.

h00350-13

H35013

WASHER

1шт.

q00355-49

Q35549

SPLIT PIN

1шт.

u00522-74

U52274

PIPE

SPARE PART

2шт.

w00370-73

W37073

ELBOW-CONNECTION

ELBOW-CONECTION

2шт.

m00375-47

M37547

FITTING

SPARE PART

2шт.

Union N°

1шт.

v00304-02

V30402

O-RING,2.5mm Thk x 22.5mm ID, 80 Duro

2шт.

Seal N°

1шт.

u08446-24

U844624

GUIDE

SPARE PART

1шт.

a00338-56

814-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

4шт.

a00350-06

A35006

WASHER

4шт.

q00341-69

Q34169

NUT

4шт.

u00345-64

U34564

NUT

4шт.

g00503-07

G50307

PIN

1шт.

g00355-41

G35541

SPLIT PIN

1шт.

g00346-21

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

h00500-09

H50009

PIN

1шт.

p00338-69

86509597

BOLT,Hex, M30 x 14mm, Cl 8.8

4шт.

v00348-18

V34818

WASHER

4шт.

t05446-34

T544634

LINKAGE YOKE

1шт.

t00287-67

T28767

BUSHING,40.2mm ID x 55mm OD x 45mm L

4шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

4шт.

t00288-59

T28859

BRONZE BUSHING

BRONZE BUSH

1шт.

f01404-20

F140420

CAP

SPARE PART

1шт.

s00288-58

S28858

BRONZE BUSHING

SPARE PART

1шт.

b00348-23

B34823

WASHER

4шт.

k00327-15

K32715

SCREW

4шт.

e01404-65

E140465

PROTECTOR

SPARE PART

1шт.

f00502-14

F50214

SPACER

1шт.

m00357-99

M35799

SPLIT PIN/SAFETY PIN

1шт.

d00297-19

D29719

SLOTTED NUT

1шт.
