Запчасти Case TY45 (B00 B32.2) - FITTED ENGINE (01) - ENGINE

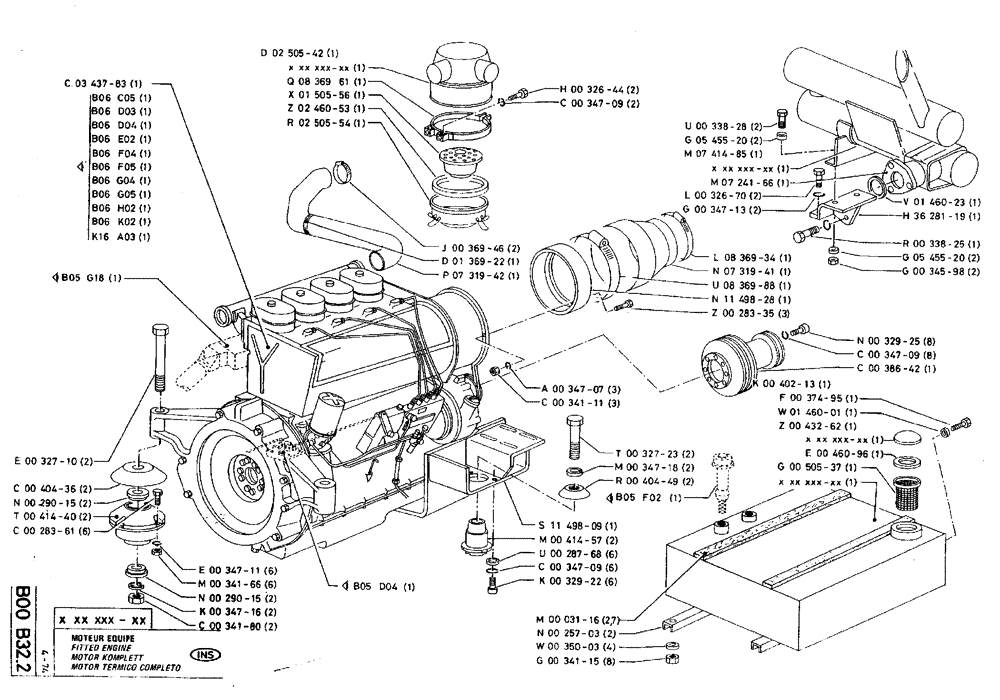

Схема запчастей Case TY45 - (B00 B32.2) - FITTED ENGINE (01) - ENGINE
g00345-98
r00404-49
k00402-13
g00505-37
d02505-42
g00347-13
m00031-16
c00386-42
a00347-07
v01460-23
u08369-88
u00338-28
h36281-19
l08369-34
c03437-83
z00283-35
n00329-25
n00257-03
q08369-61
m00347-18
r0338-25
n00290-15
u00287-68
z02460-53
n07319-41
e00327-10
t00327-23
s11498-09
j00369-46
f00374-95
k00329-22
g05455-20
n00290-15
l00326-70
z00432-62
m07241-66
c00347-09
m00414-57
t00414-40
e00347-11
d01369-22
g05455-20
g00341-15
h00326-44
m00341-66
w00350-03
c00341-80
e00460-96
w01460-01
c00347-09
p07319-42
c00347-09
c00283-61
r02505-54
m07414-85
n11498-28
x01505-56
c00341-11
k00347-16
c00404-36

Артикул

Название

Примечание

Количество

c03437-83

C343783

ENGINE

1шт.

e00327-10

E32710

SCREW

2шт.

c00404-36

C40436

DEFLECTOR

2шт.

n00290-15

N29015

BUSHING, LARGE

SPARE PART

2шт.

t00414-40

T41440

SUPPORT

2шт.

c00283-61

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

6шт.

e00347-11

E34711

WASHER

6шт.

m00341-66

100016

NUT,M10 x 1.5, Cl 8

6шт.

n00290-15

N29015

BUSHING, LARGE

SPARE PART

2шт.

k00347-16

NLS

NO LONGER SERVICED

2шт.

c00341-80

C34180

NUT

2шт.

d02505-42

D250542

AIR CLEANER

1шт.

q08369-61

Q836961

CLAMP

1шт.

x01505-56

X150556

FILTER CARTRIDGE

1шт.

z02460-53

Z246053

GASKET

1шт.

r02505-54

R250554

CUP

1шт.

j00369-46

J36946

COLLAR CLAMP

2шт.

d01369-22

PD136922

COLLAR

1шт.

p07319-42

P731942

LARGE HOSE

SPARE PART

1шт.

h00326-44

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

c00347-09

C34709

WASHER

2шт.

a00347-07

A34707

WASHER

3шт.

c00341-11

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

3шт.

s11498-09

S1149809

CROSSBAR

1шт.

m00414-57

M41457

CUSHION

2шт.

u00287-68

U28768

BUSHING, LARGE

BUSHING,LARGE

6шт.

c00347-09

C34709

WASHER

6шт.

k00329-22

Q732909

BOLT,Hex, M8 x 25, 8.8

6шт.

m00031-16

M3116

FELT

SPARE PART

2,7шт.

n00257-03

N25703

SHIN

2шт.

w00350-03

W35003

WASHER

4шт.

g00341-15

100016

NUT,M10 x 1.5, Cl 8

8шт.

t00327-23

T32723

SCREW

SPARE PART

2шт.

m00347-18

M34718

WASHER

2шт.

r00404-49

R40449

DEFLECTOR

SPARE PART

2шт.

u00338-28

56653

BOLT,Hex, M8 x 35mm, Cl 8.8

2шт.

g05455-20

G545520

WASHER

2шт.

m07414-85

M741485

MUFFLER

1шт.

m07241-66

M724166

SHIN

1шт.

l00326-70

L32670

2шт.

g00347-13

G34713

WASHER

2шт.

l08369-34

L836934

COLLAR CLAMP

1шт.

n07319-41

N731941

LARGE HOSE

HOSE,LARGE

1шт.

u08369-88

U836988

COLLAR CLAMP

1шт.

n11498-28

N1149828

SUPPORT

SPARE PART

1шт.

z00283-35

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

3шт.

v01460-23

V146023

GASKET

1шт.

h36281-19

H3628119

SUPPORT

SPARE PART

1шт.

r00338-25

R33825

CAM FOLLOWER

1шт.

g05455-20

G545520

WASHER

2шт.

g00345-98

G34598

SAFETY NUT

2шт.

n00329-25

N32925

SCREW

8шт.

c00347-09

C34709

WASHER

8шт.

c00386-42

C38642

PULLEY

1шт.

k00402-13

K40213

FUEL TANK

1шт.

f00374-95

F37495

PLUG

1шт.

w01460-01

W146001

SEAL

SEAL WASHER

1шт.

z00432-62

Z43262

PLUG

1шт.

e00460-96

P46096

WASHER, SEALING

SEAL WASHER

1шт.

g00505-37

G50537

FILTER BOWL

1шт.

Выбрано товаров: 60
