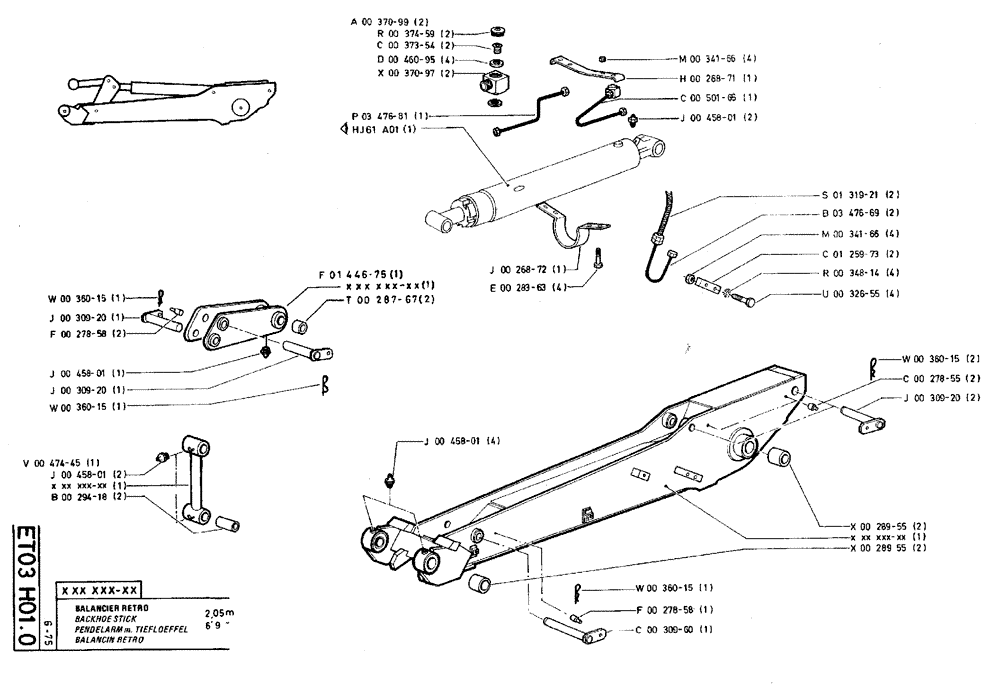

Запчасти Case TY45 (ET03 H01.0) - BACKHOE STICK - 2,05 M (6 9") (14) - DIPPERSTICKS

w00360-15

W36015

SPLIT PIN/SAFETY PIN

1шт.

j00309-20

J30920

PIN

1шт.

f00278-58

F27858

SHAFT LOCK

2шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

1шт.

j00309-20

J30920

PIN

1шт.

w00360-15

W36015

SPLIT PIN/SAFETY PIN

1шт.

v00474-45

V47445

CONNECTING ROD

1шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

b00294-18

B29418

BUSHING

2шт.

a00370-99

A37099

FUEL FILTER

2шт.

r00374-59

R37459

PLUG

2шт.

c00373-54

C37354

END FITTING

2шт.

d00460-95

D46095

BUSHING

4шт.

x00370-97

X37097

FITTING

2шт.

p03476-81

P347681

PIPE

1шт.

f01446-75

F144675

LINKAGE YOKE

1шт.

t00287-67

T28767

BUSHING,40.2mm ID x 55mm OD x 45mm L

2шт.

j00268-72

J26872

CLAMP

SPARE PART

1шт.

e00283-63

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

4шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

4шт.

m00341-66

100016

NUT,M10 x 1.5, Cl 8

4шт.

h00268-71

H26871

HALF-COLLAR

SPARE PART

1шт.

c00501-65

C50165

PIPE

1шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

s01319-21

S131921

HYDRAULIC HOSE,12.70 mm ID

2шт.

b03476-69

B347669

PIPE

SPARE PART

2шт.

m00341-66

100016

NUT,M10 x 1.5, Cl 8

4шт.

c01259-73

C125973

CLAMP

2шт.

r00348-14

R34814

WASHER

4шт.

u00326-55

8900127036

BOLT,Hex, M10 x 45mm, Cl 8.8

4шт.

w00360-15

W36015

SPLIT PIN/SAFETY PIN

2шт.

c00278-55

C27855

SHAFT LOCK

2шт.

j00309-20

J30920

PIN

2шт.

x00289-55

X28955

BUSHING

2шт.

w00360-15

W36015

SPLIT PIN/SAFETY PIN

1шт.

f00278-58

F27858

SHAFT LOCK

1шт.

c00309-60

C30960

PIN

1шт.
