(HJ61 A01.2) - CYLINDER - 65 X 95 C610

Запчасти Case TY45 (HJ61 A01.2) - CYLINDER - 65 X 95 C610 (07) - HYDRAULIC SYSTEM

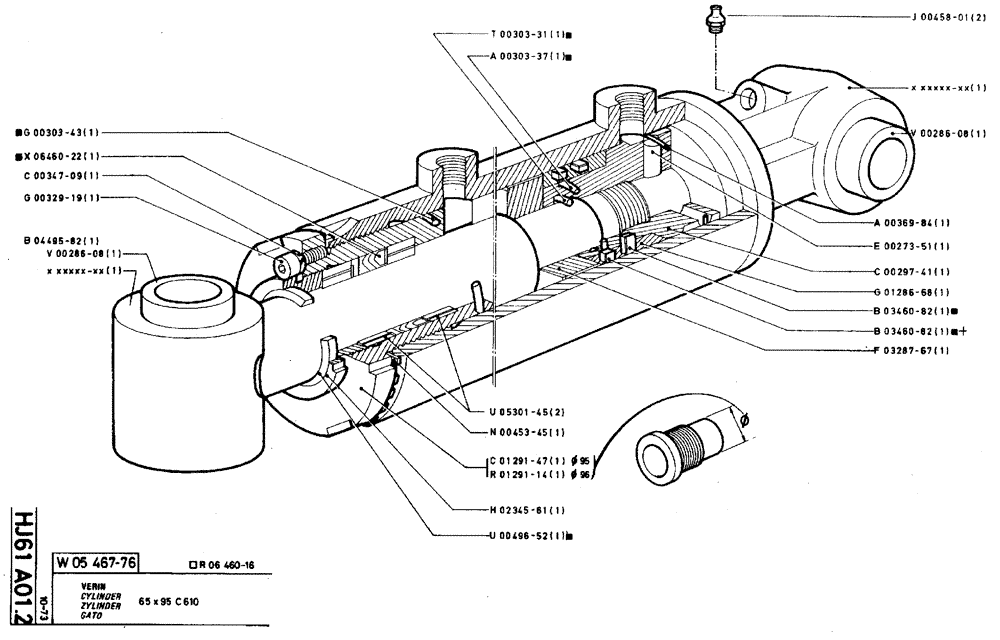

Схема запчастей Case TY45 - (HJ61 A01.2) - CYLINDER - 65 X 95 C610 (07) - HYDRAULIC SYSTEM
r01291-14
u00496-52
e00273-51
c00297-41
n00453-45
g00329-19
u05301-45
g01286-68
c01291-47
v00286-08
f03287-67
v00286-08
b04495-82
c00347-09
x06460-22
a00303-37
t00303-31
b03460-82
j00458-01
b03460-82
g00303-43
r06460-16
a00369-84
h02345-61
w05467-76
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

w05467-76

W546776

CYLINDER ASSY.

1шт.

r06460-16

R646016

SEAL PACKAGE

1шт.

Repair Kit

1шт.

g00303-43

G30343

O-RING

1шт.

Included in Repair Kit

1шт.

x06460-22

X646022

LINING

1шт.

Included in Repair Kit

1шт.

c00347-09

C34709

WASHER

1шт.

g00329-19

G33197

TUBE,30.82" L

1шт.

b04495-82

B449582

PISTON ROD

SPARE PART

1шт.

v00286-08

V28608

BRONZE BUSHING

BRONZE BUSH

1шт.

t00303-31

T30331

O-RING

1шт.

Included in Repair Kit

1шт.

a00303-37

A30337

O-RING

1шт.

Included in Repair Kit

1шт.

u05301-45

U530145

BRONZE BUSHING,65mm ID x 80mm OD x 20mm

2шт.

n00453-45

N45345

WASHER

1шт.

c01291-47

C129147

CYLINDER END CAP

Ø 95

1шт.

r01291-14

R129114

CYLINDER END CAP

SPARE PART Ø 96

1шт.

h02345-61

H234561

NUT

1шт.

u00496-52

U49652

WIPER SEAL

1шт.

Included in Repair Kit

1шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

v00286-08

V28608

BRONZE BUSHING

BRONZE BUSH

1шт.

a00369-84

A36984

SPECIAL RING

1шт.

e00273-51

E27351

LARGE PIN

PIN, LARGE

1шт.

c00297-41

C29741

NUT

1шт.

g01286-68

G128668

BRONZE BUSHING

BRONZE BUSH

1шт.

b03460-82

B346082

SPECIAL MAT. SEAL

1шт.

Included in Repair Kit

1шт.

b03460-82

B346082

SPECIAL MAT. SEAL

1шт.

Part Added to New Model

1шт.

Included in Repair Kit

1шт.

f03287-67

F328767

WASHER

1шт.
