(HJ44 A01.2) - CYLINDER - 52 X 95 C440

Запчасти Case TY45 (HJ44 A01.2) - CYLINDER - 52 X 95 C440 (07) - HYDRAULIC SYSTEM

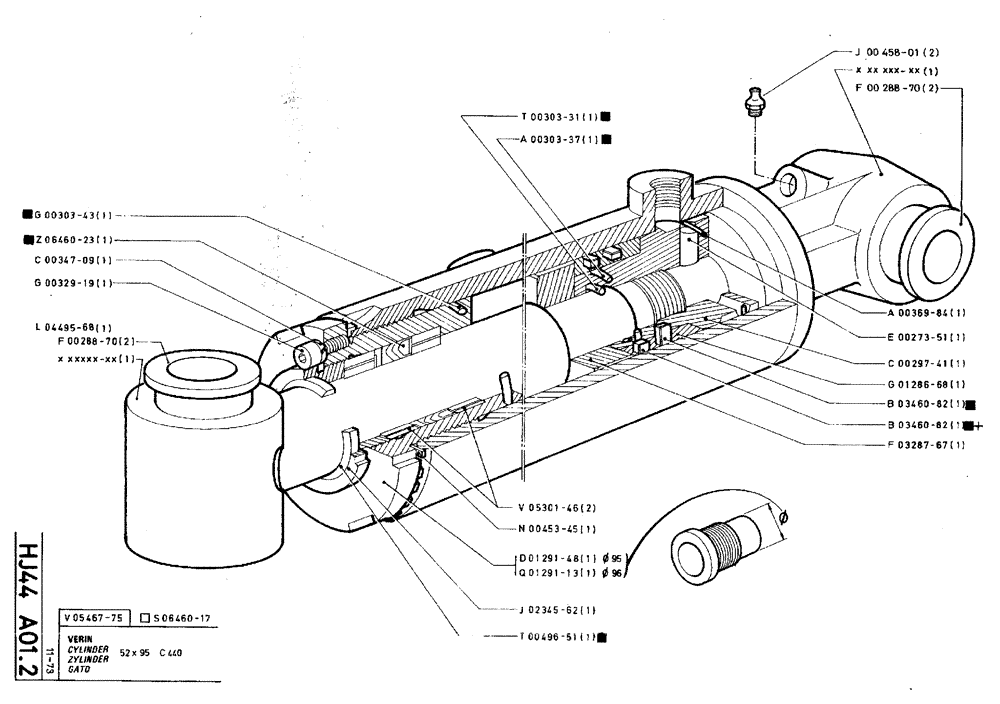

Схема запчастей Case TY45 - (HJ44 A01.2) - CYLINDER - 52 X 95 C440 (07) - HYDRAULIC SYSTEM
d01291-48
e00273-51
g01286-68
n00453-45
b03460-82
v05467-75
s06460-17
f00288-70
g00303-43
f03287-67
j00458-01
c00347-09
v05301-46
g00329-19
b03460-82
t00496-51
l04495-68
z06460-23
q01291-13
c00297-41
a00303-37
a00369-84
j02345-62
f00288-70
t00303-31
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

v05467-75

V546775

CYLINDER ASSY.

1шт.

s06460-17

S646017

SEAL PACKAGE

1шт.

Repair Kit

1шт.

g00303-43

G30343

O-RING

1шт.

Included in Repair Kit

1шт.

z06460-23

Z646023

LINING

1шт.

Included in Repair Kit

1шт.

c00347-09

C34709

WASHER

1шт.

g00329-19

G32919

SCREW,Hex Skt Hd, M8 x 10mm

1шт.

l04495-68

L449568

PISTON ROD

1шт.

f00288-70

F28870

BRONZE BUSHING

BRONZE BUSH

2шт.

t00303-31

T30331

O-RING

1шт.

Included in Repair Kit

1шт.

a00303-37

A30337

O-RING

1шт.

Included in Repair Kit

1шт.

v05301-46

V530146

BEARING LINER

2шт.

n00453-45

N45345

WASHER

1шт.

d01291-48

D129148

CYLINDER END CAP

Ø 95

1шт.

q01291-13

Q129113

CYLINDER END CAP

Ø 96

1шт.

j02345-62

J234562

NUT

1шт.

t00496-51

T49651

WIPER SEAL

1шт.

Included in Repair Kit

1шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

f00288-70

F28870

BRONZE BUSHING

BRONZE BUSH

2шт.

a00369-84

A36984

SPECIAL RING

1шт.

e00273-51

E27351

LARGE PIN

PIN, LARGE

1шт.

c00297-41

C29741

NUT

1шт.

g01286-68

G128668

BRONZE BUSHING

BRONZE BUSH

1шт.

b03460-82

B346082

SPECIAL MAT. SEAL

1шт.

Included in Repair Kit

1шт.

b03460-82

B346082

SPECIAL MAT. SEAL

1шт.

Part Added to New Model

1шт.

Included in Repair Kit

1шт.

f03287-67

F328767

WASHER

1шт.
