(HJ41 A01.1) - CYLINDER - 90 X 110 X 75 C415

Запчасти Case TY45 (HJ41 A01.1) - CYLINDER - 90 X 110 X 75 C415 (07) - HYDRAULIC SYSTEM

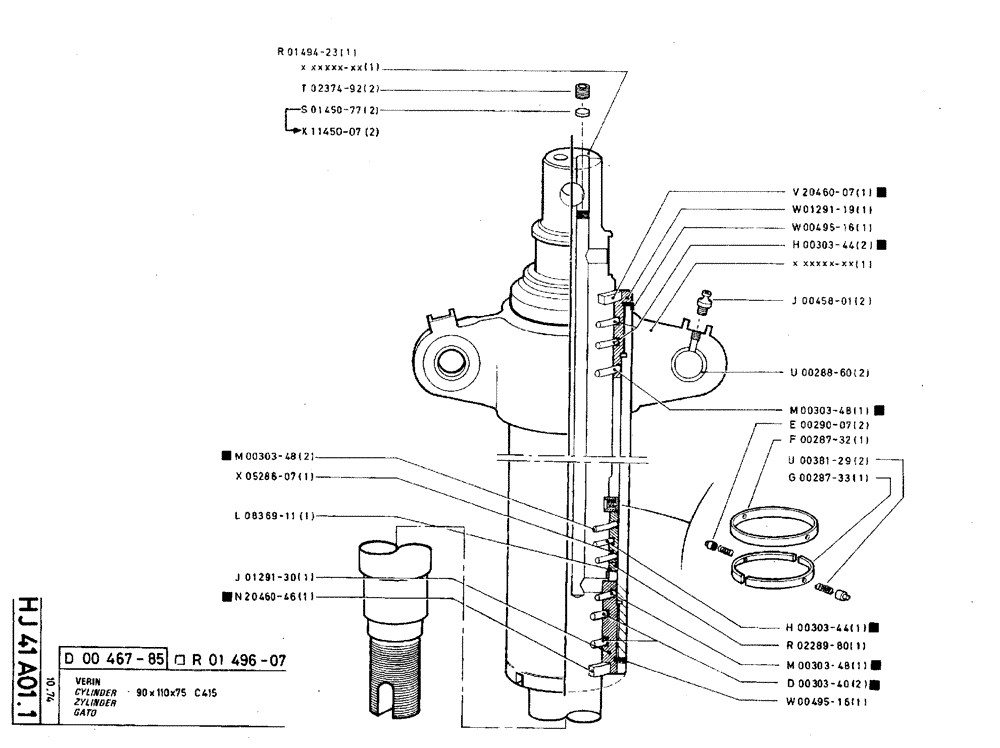

Схема запчастей Case TY45 - (HJ41 A01.1) - CYLINDER - 90 X 110 X 75 C415 (07) - HYDRAULIC SYSTEM
m00303-48
w00495-16
m00303-48
l08369-11
x05286-07
e00290-07
m00303-48
g00287-33
h00303-44
r01496-07
r01494-23
j00458-01
d00467-85
w00495-16
x11450-07
d00303-40
r02289-80
f00287-32
u00288-60
v20460-07
t02374-92
w01291-19
j01291-30
s01450-77
h00303-44
n20460-46
u00381-29
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

d00467-85

D46785

CYLINDER ASSY.

1шт.

r01496-07

R149607

SEAL PACKAGE

1шт.

Repair Kit

1шт.

r01494-23

R149423

STEM

1шт.

t02374-92

T237492

PLUG

2шт.

s01450-77

S145077

HOLE PLUG BUTTON

2шт.

x11450-07

X1145007

HOLE PLUG BUTTON

2шт.

Replaces S01450-77

1шт.

m00303-48

M30348

O-RING

2шт.

Included in Repair Kit

1шт.

x05286-07

X528607

BUSHING

1шт.

l08369-11

L836911

SPECIAL RING

1шт.

j01291-30

J129130

CYLINDER END CAP

1шт.

n20460-46

N2046046

SEAL,75mm ID x 85mm OD x 10mm Thk

1шт.

Included in Repair Kit

1шт.

v20460-07

V2046007

WIPER SEAL

1шт.

Included in Repair Kit

1шт.

w01291-19

W129119

CYLINDER END CAP

1шт.

w00495-16

W49516

SEALING RING

1шт.

h00303-44

H30344

O-RING

2шт.

Included in Repair Kit

1шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

u00288-60

U28860

BUSHING

2шт.

m00303-48

M30348

O-RING

1шт.

Included in Repair Kit

1шт.

e00290-07

E29007

SMALL PIN

2шт.

f00287-32

F28732

RING

1шт.

u00381-29

U38129

COMPRESSION SPRING

2шт.

g00287-33

G28733

BUSHING

1шт.

h00303-44

H30344

O-RING

1шт.

Included in Repair Kit

1шт.

r02289-80

R228980

WASHER

1шт.

m00303-48

M30348

O-RING

1шт.

Included in Repair Kit

1шт.

d00303-40

D30340

O-RING

2шт.

Included in Repair Kit

1шт.

w00495-16

W49516

SEALING RING

1шт.
