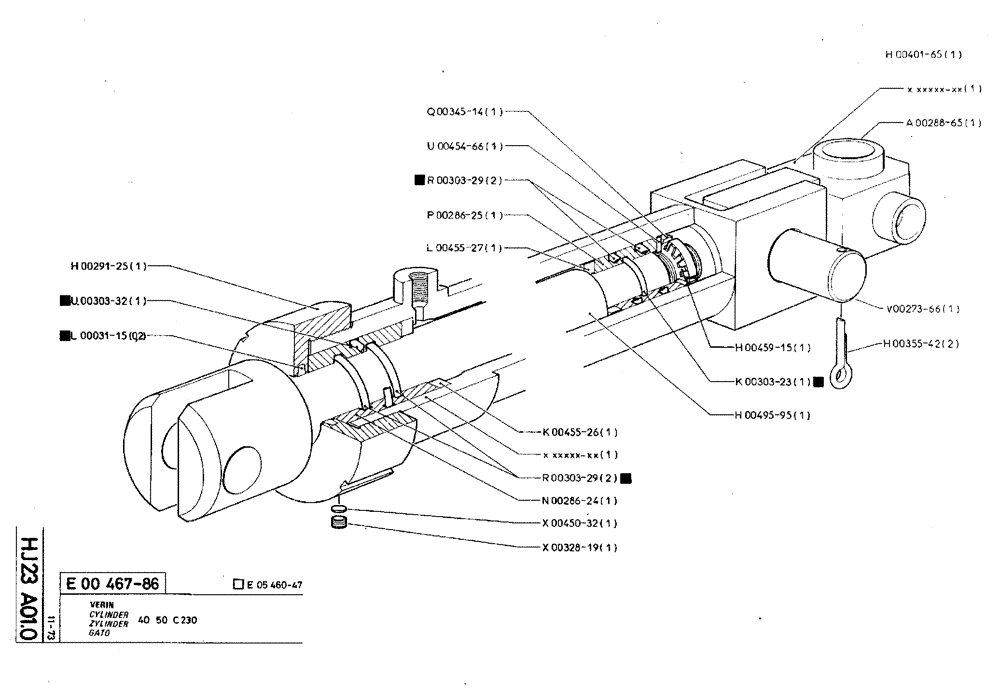

Запчасти Case TY45 (HJ23 A01.0) - CYLINDER - 40 50 C230 (07) - HYDRAULIC SYSTEM

e00467-86

E46786

CYLINDER ASSY.

1шт.

e05460-47

E546047

SEAL PACKAGE

1шт.

Repair Kit

1шт.

h00291-25

H29125

COVER

1шт.

u00303-32

U30332

O-RING

1шт.

Included in Repair Kit

1шт.

l00031-15

L3115

FELT

1шт.

Included in Repair Kit

1шт.

q00345-14

Q34514

SLOTTED NUT

1шт.

u00454-66

U45466

WASHER

1шт.

r00303-29

R30329

O-RING

2шт.

Included in Repair Kit

1шт.

p00286-25

P28625

BRONZE BUSHING

BRONZE BUSH

1шт.

l00455-27

L45527

WASHER

1шт.

k00455-26

K45526

WASHER

1шт.

r00303-29

R30329

O-RING

2шт.

Included in Repair Kit

1шт.

n00286-24

N28624

BRONZE BUSHING

BRONZE BUSH

1шт.

x00450-32

X45032

HOLE PLUG BUTTON

1шт.

x00328-19

X32819

SCREW

1шт.

h00459-15

H45915

SPECIAL WASHER

1шт.

k00303-23

K30323

SEAL

1шт.

Included in Repair Kit

1шт.

h00495-95

H49595

PISTON ROD

1шт.

h00401-65

H40165

COUPLING

1шт.

a00288-65

A28865

BRONZE BUSHING

BRONZE BUSH

1шт.

v00273-66

V27366

PIN

1шт.

h00355-42

H35542

SPLIT PIN

2шт.
