(HJ22 A01.0) - CYLINDER - 31 X 75 C228

Запчасти Case TY45 (HJ22 A01.0) - CYLINDER - 31 X 75 C228 (07) - HYDRAULIC SYSTEM

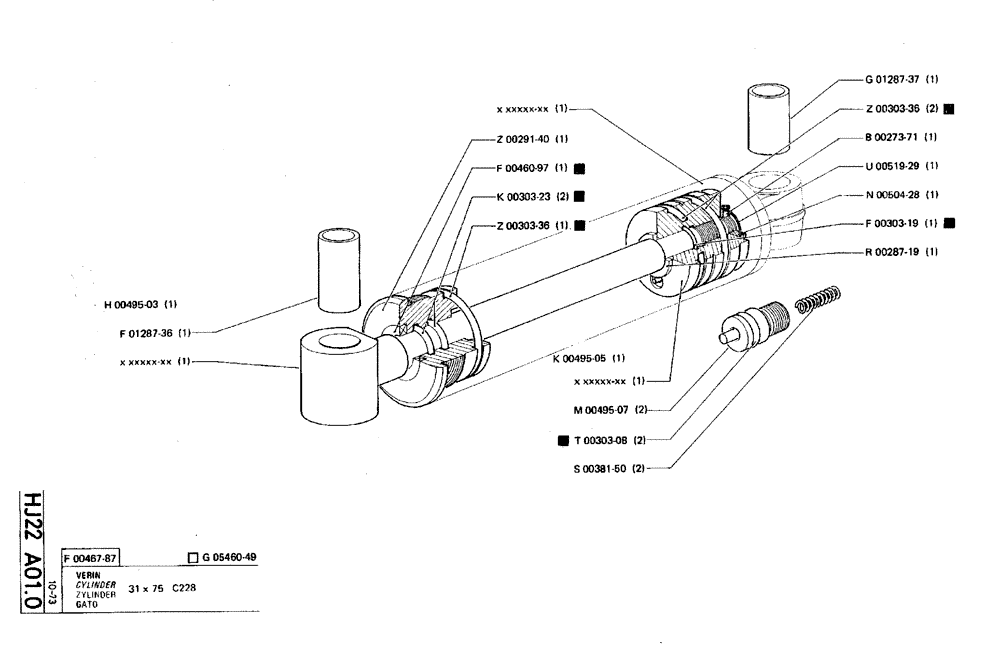

Схема запчастей Case TY45 - (HJ22 A01.0) - CYLINDER - 31 X 75 C228 (07) - HYDRAULIC SYSTEM
z00303-36
f00303-19
b00273-71
g01287-37
k00303-23
h00495-03
r00287-19
z00291-40
t00303-08
f00460-97
z00303-36
u00519-29
m00495-07
g05460-49
n00504-28
f00467-87
s00381-50
f01287-36
k00495-05
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

f00467-87

F46787

CYLINDER ASSY.

1шт.

g05460-49

G546049

SEAL PACKAGE

1шт.

Repair Kit

1шт.

h00495-03

H49503

PISTON ROD

1шт.

f01287-38

F128738

1шт.

z00291-40

Z29140

COVER

1шт.

f00460-97

F46097

OIL SEAL

1шт.

Included in Repair Kit

1шт.

k00303-23

K30323

SEAL

2шт.

Included in Repair Kit

1шт.

z00303-36

Z30336

O-RING

1шт.

Included in Repair Kit

1шт.

k00495-05

K49505

BUSHING

1шт.

m00495-07

M49507

VALVE POPPET

2шт.

t00303-08

T30308

SEAL,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

2шт.

Included in Repair Kit

1шт.

s00381-50

S38150

COMPRESSION SPRING

2шт.

g01287-37

G128737

BUSHING

1шт.

z00303-36

Z30336

O-RING

2шт.

Included in Repair Kit

1шт.

b00273-71

B27371

PIN

1шт.

u00519-29

U51929

RING

1шт.

n00504-28

N50428

ROUND NUT

1шт.

f00303-19

F30319

SEAL

1шт.

Included in Repair Kit

1шт.

r00287-19

R28719

BUSHING

1шт.
