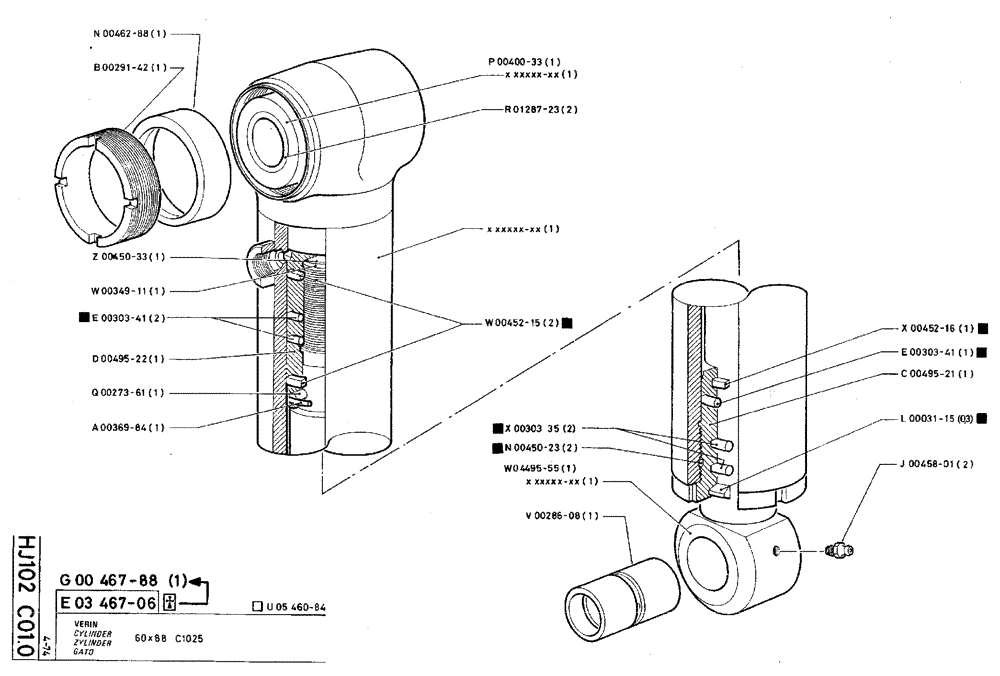

Запчасти Case TY45 (HJ102 C01.0) - CYLINDER - 60 X 88 C1025 (07) - HYDRAULIC SYSTEM

e03467-06

E346706

CYLINDER ASSY.

1шт.

No Longer Sold

1шт.

g00467-88

G46788

CYLINDER ASSY.

1шт.

Replaces E03467-06

1шт.

u05460-84

U546084

SEAL PACKAGE

1шт.

Repair Kit

1шт.

n00462-88

N46288

SEAT

1шт.

b00291-42

B29142

NUT

SPARE PART

1шт.

z00450-33

Z45033

DISC

1шт.

w00349-11

W34911

RUBBER WASHER

1шт.

e00303-41

E30341

O-RING

2шт.

Included in Repair Kit

1шт.

d00495-22

D49522

PISTON

1шт.

q00273-61

Q27361

LARGE PIN

PIN, LARGE

1шт.

a00369-84

A36984

SPECIAL RING

1шт.

p00400-33

P40033

BALL JOINT

1шт.

r01287-23

R128723

BUSHING

2шт.

w00452-15

W45215

BUSHING

2шт.

Included in Repair Kit

1шт.

x00303-35

X30335

O-RING

2шт.

Included in Repair Kit

1шт.

n00450-23

N45023

HOLE PLUG BUTTON

2шт.

Included in Repair Kit

1шт.

w04495-55

W449555

PISTON ROD

1шт.

v00286-08

V28608

BRONZE BUSHING

BRONZE BUSH

1шт.

x00452-16

X45216

WIPER SEAL

1шт.

Included in Repair Kit

1шт.

e00303-41

E30341

O-RING

1шт.

Included in Repair Kit

1шт.

c00495-21

C49521

BEARING LINER

SPARE PART

1шт.

l00031-15

L3115

FELT

1шт.

Included in Repair Kit

1шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

2шт.
