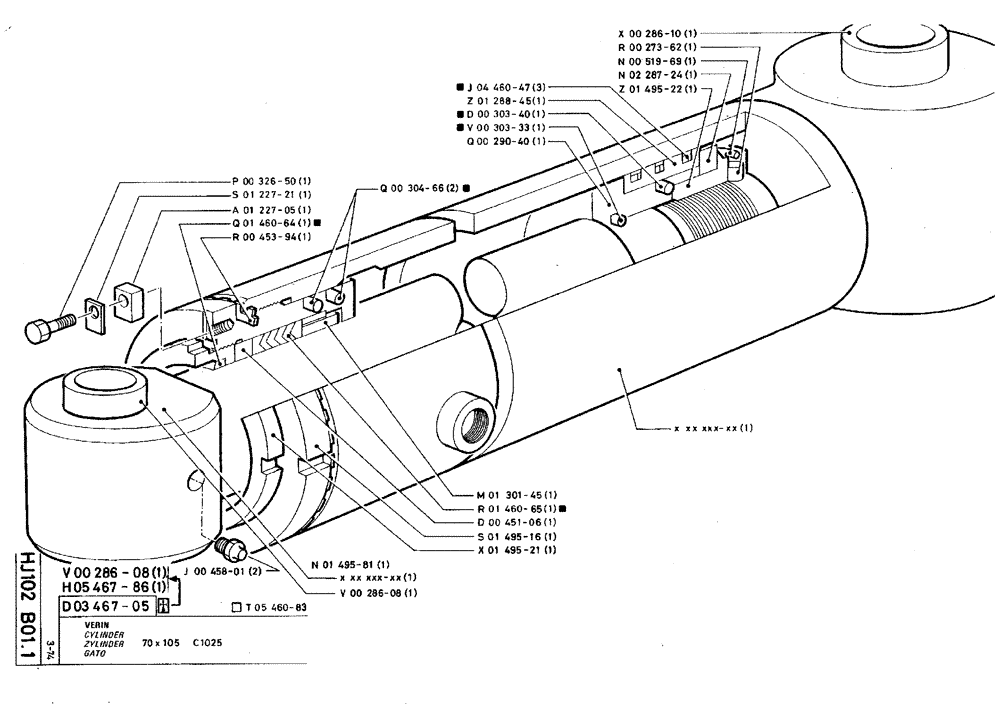

Запчасти Case TY45 (HJ102 B01.1) - CYLINDER - 70 X 105 C1025 (07) - HYDRAULIC SYSTEM

d03467-05

D346705

CYLINDER ASSY.

1шт.

No Longer Sold

1шт.

v00286-08

V28608

BRONZE BUSHING

BRONZE BUSH

1шт.

Replaces D03467-05

1шт.

h05467-86

H546786

CYLINDER ASSY.

1шт.

Replaces D03467-05

1шт.

t05460-83

T546083

SEAL PACKAGE

1шт.

Repair Kit

1шт.

p00326-50

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

s01227-21

S122721

BRAKE

1шт.

a01227-05

A122705

COVER PLATE

1шт.

q01460-64

Q146064

WIPER SEAL

1шт.

Included in Repair Kit

1шт.

r00453-94

R45394

WASHER

1шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

q00304-66

Q30466

O-RING,103mm ID x 4mm Width

2шт.

Included in Repair Kit

1шт.

j04460-47

J446047

SPECIAL MAT. SEAL

3шт.

Included in Repair Kit

1шт.

z01288-45

Z128845

BUSHING

1шт.

d00303-40

D30340

O-RING

1шт.

Included in Repair Kit

1шт.

v00303-33

V30333

O-RING

1шт.

Included in Repair Kit

1шт.

q00290-40

Q29040

PISTON

1шт.

n01495-81

N149581

PISTON ROD

1шт.

v00286-08

V28608

BRONZE BUSHING

BRONZE BUSH

1шт.

m01301-45

M130145

BEARING LINER

1шт.

r01460-65

R146065

LINING

1шт.

Included in Repair Kit

1шт.

d00451-06

D45106

BRONZE WASHER

1шт.

s01495-16

S149516

CYLINDER END CAP

SPARE PART

1шт.

x01495-21

X149521

NUT

1шт.

x00286-10

X28610

BRONZE BUSHING

BRONZE BUSH

1шт.

r00273-62

R27362

LARGE PIN

PIN, LARGE

1шт.

n00519-69

N51969

SPECIAL MAT. SEAL

1шт.

n02287-24

N228724

WASHER

1шт.

z01495-22

Z149522

NUT

1шт.
