(HJ102 A01.2) - CYLINDER - 60 X 88 C1025

Запчасти Case TY45 (HJ102 A01.2) - CYLINDER - 60 X 88 C1025 (07) - HYDRAULIC SYSTEM

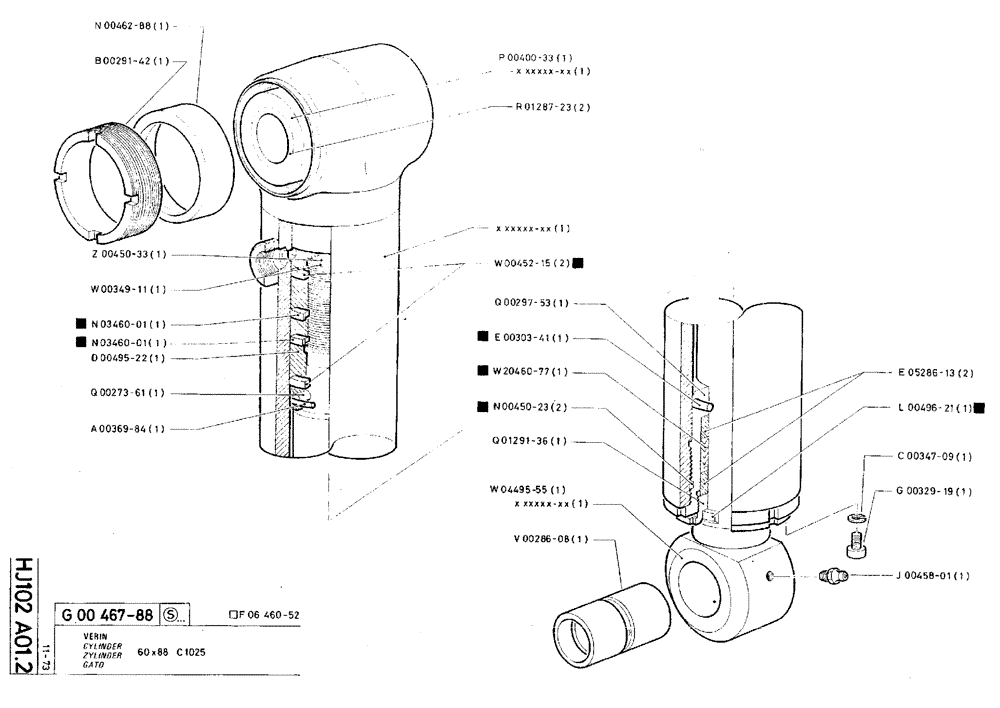

Схема запчастей Case TY45 - (HJ102 A01.2) - CYLINDER - 60 X 88 C1025 (07) - HYDRAULIC SYSTEM
z00450-33
w20460-77
q01291-36
n03460-01
w04495-55
b00291-42
q00273-61
v00286-08
p00400-33
n00462-88
c00347-09
w00349-11
r01287-23
e00303-41
j00458-01
n00450-23
g00467-88
n03460-01
w00452-15
l00496-21
q00297-53
f06460-52
a00369-84
d00495-22
e05286-13
g00329-19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

g00467-88

G46788

CYLINDER ASSY.

1шт.

f06460-52

F646052

SEAL PACKAGE

1шт.

Repair Kit

1шт.

n00462-88

N46288

SEAT

1шт.

b00291-42

B29142

NUT

SPARE PART

1шт.

z00450-33

Z45033

DISC

1шт.

w00349-11

W34911

RUBBER WASHER

1шт.

n03460-01

N346001

SPECIAL MAT. SEAL

1шт.

Included in Repair Kit

1шт.

d00495-22

D49522

PISTON

1шт.

q00273-61

Q27361

LARGE PIN

PIN, LARGE

1шт.

a00369-84

A36984

SPECIAL RING

1шт.

p00400-33

P40033

BALL JOINT

1шт.

r01287-23

R128723

BUSHING

2шт.

w00452-15

W45215

BUSHING

2шт.

Included in Repair Kit

1шт.

q00297-53

Q29753

CYLINDER END CAP

1шт.

e00303-41

E30341

O-RING

1шт.

Included in Repair Kit

1шт.

w20460-77

W2046077

LINING

1шт.

Included in Repair Kit

1шт.

n00450-23

N45023

HOLE PLUG BUTTON

2шт.

Included in Repair Kit

1шт.

q01291-36

Q129136

NUT

SPARE PART

1шт.

w04495-55

W449555

PISTON ROD

1шт.

v00286-08

V28608

BRONZE BUSHING

BRONZE BUSH

1шт.

e05286-13

E528613

BUSHING, LARGE

SPARE PART

2шт.

l00496-21

L49621

WIPER SEAL

1шт.

Included in Repair Kit

1шт.

c00347-09

C34709

WASHER

1шт.

g00329-19

G32919

SCREW,Hex Skt Hd, M8 x 10mm

1шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

1шт.
