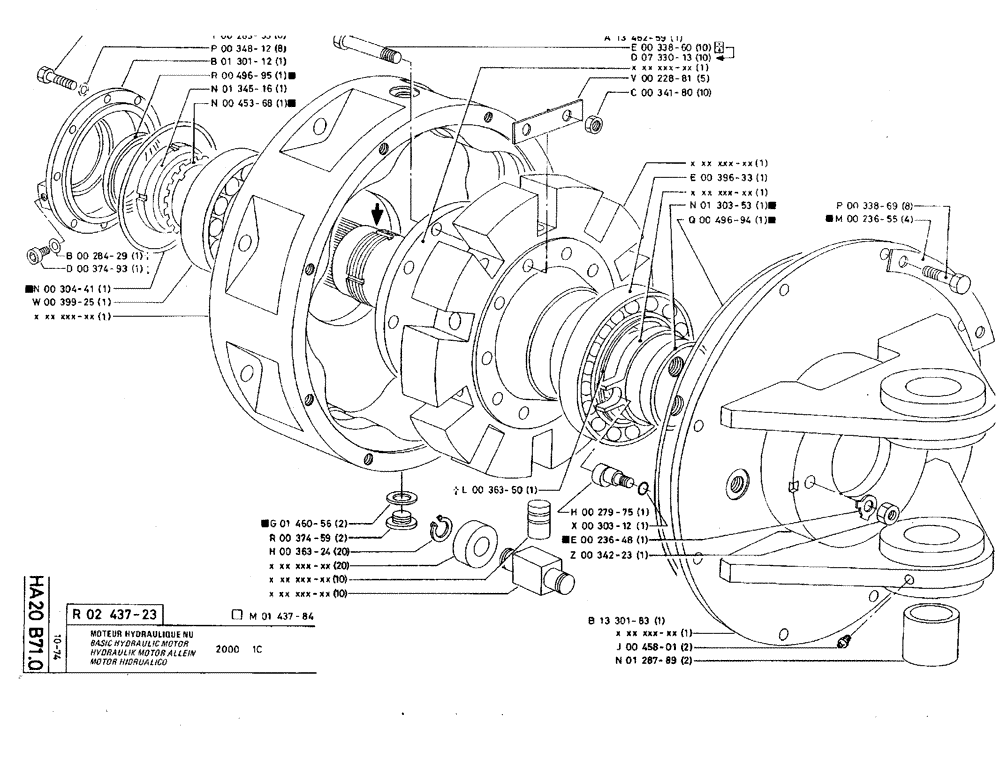

Запчасти Case TY45 (HA20 B71.0) - BASIC HYDRAULIC MOTOR - 2000 1C (07) - HYDRAULIC SYSTEM

r02437-23

R243723

MOTOR, HYDRAULIC

SPARE PART

1шт.

m01437-84

M143784

SPARE PART SET

1шт.

Repair Kit

1шт.

b00284-29

B28429

COMPOSITE SEAL

1шт.

Not Existing on New Model

1шт.

d00374-93

D37493

PLUG

1шт.

Not Existing on New Model

1шт.

n00304-41

N30441

O-RING,190mm ID x 3mm Width

1шт.

Included in Repair Kit

1шт.

w00399-25

W39925

BEARING

1шт.

p00348-12

P34812

WASHER

8шт.

b01301-12

B130112

CAP

1шт.

r00496-95

R49695

OIL SEAL

1шт.

Included in Repair Kit

1шт.

n01345-16

N134516

SLOTTED NUT

1шт.

n00453-68

N45368

SPECIAL WASHER

1шт.

Included in Repair Kit

1шт.

a13462-59

A1346259

SHAFT

1шт.

e00338-60

E33860

SCREW

10шт.

No Longer Sold

1шт.

d07330-13

D733013

SCREW

10шт.

Replaces E00338-60

1шт.

v00228-81

V22881

PAWL

5шт.

c00341-80

C34180

NUT

10шт.

e00396-33

E39633

BEARING

1шт.

n01303-53

N130353

O-RING

1шт.

Included in Repair Kit

1шт.

q00496-94

Q49694

O-RING,490mm ID x 3mm Width

1шт.

Included in Repair Kit

1шт.

p00338-69

P33869

BOLT,Hex, M14 x 30

8шт.

m00236-55

M23655

BRAKE

4шт.

Included in Repair Kit

1шт.

g01460-56

G146056

COMPOSITE SEAL

2шт.

Included in Repair Kit

1шт.

r00374-59

R37459

PLUG

2шт.

h00363-24

H36324

CIRCLIP

20шт.

l00363-50

REFERENCE

SPARE PART

RING SNAP

1шт.

Not Existing on New Model

1шт.

h00279-75

H27975

FINGER

SPARE PART

1шт.

x00303-12

X30312

RING

1шт.

e00236-48

E23648

BRAKE

1шт.

Included in Repair Kit

1шт.

z00342-23

Z34223

NUT

1шт.

b13301-83

B1330183

COVER

1шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

n01287-89

N128789

BUSHING

2шт.
