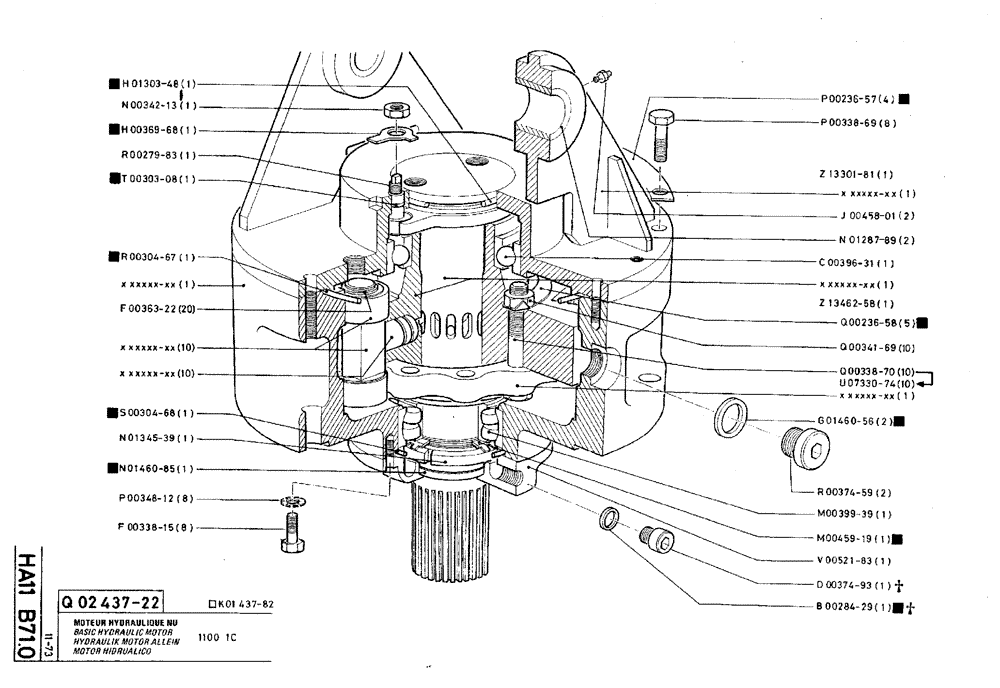

Запчасти Case TY45 (HA11 B71.0) - BASIC HYDRAULIC MOTOR - 1100 1C (07) - HYDRAULIC SYSTEM

q02437-22

Q243722

MOTOR, HYDRAULIC

1шт.

k01437-82

K143782

SPARE PART SET

1шт.

h01303-48

H130348

O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro

1шт.

Included in Repair Kit

1шт.

n00342-13

N34213

NUT

1шт.

h00369-68

H36968

BRAKE

1шт.

Included in Repair Kit

1шт.

r00279-83

R27983

FINGER

1шт.

t00303-08

T30308

SEAL,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

1шт.

Included in Repair Kit

1шт.

r00304-67

R30467

O-RING,366mm ID x 2.5mm Width

1шт.

Included in Repair Kit

1шт.

f00363-22

F36322

RING, SNAP

RING SNAP

20шт.

s00304-68

S30468

O-RING,160mm ID x 2mm Width

1шт.

Included in Repair Kit

1шт.

n01345-39

N134539

SLOTTED NUT

1шт.

n01460-85

N146085

OIL SEAL

1шт.

Included in Repair Kit

1шт.

p00348-12

P34812

WASHER

8шт.

f00338-15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

p00236-57

P23657

BRAKE

4шт.

Included in Repair Kit

1шт.

p00338-69

86509597

BOLT,Hex, M30 x 14mm, Cl 8.8

8шт.

z13301-81

Z1330181

COVER

1шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

n01287-89

N128789

BUSHING

2шт.

c00396-31

C39631

BEARING

1шт.

z13462-58

Z1346258

SHAFT

1шт.

q00236-58

Q23658

BRAKE

5шт.

Included in Repair Kit

1шт.

q00341-69

Q34169

NUT

10шт.

q00338-70

Q33870

SCREW

10шт.

u07330-74

U733074

SCREW

10шт.

Replaces Q00338-70

1шт.

g01460-56

G146056

COMPOSITE SEAL

2шт.

Included in Repair Kit

1шт.

r00374-59

R37459

PLUG

2шт.

m00399-39

M39939

BEARING

1шт.

m00459-19

M45919

SPECIAL WASHER

1шт.

Included in Repair Kit

1шт.

v00521-83

V52183

CAP

1шт.

d00374-93

D37493

PLUG

1шт.

Not Existing on New Model

1шт.

b00284-29

B28429

COMPOSITE SEAL

1шт.

Not Existing on New Model

1шт.

Included in Repair Kit

1шт.
