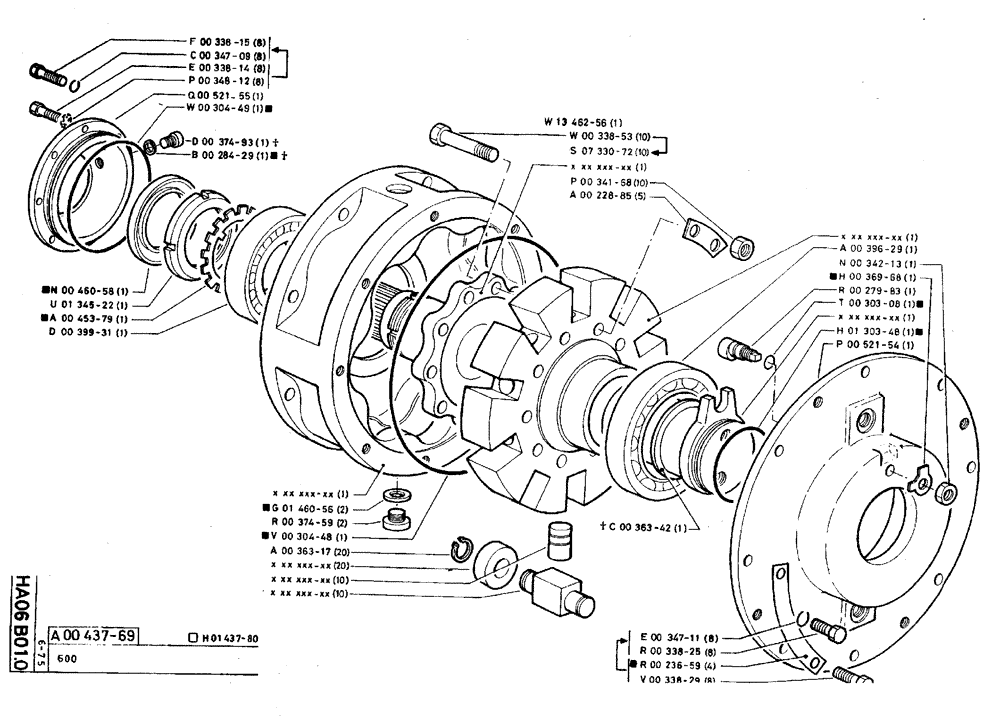

Запчасти Case TY45 (HA06 B01.0) - BASIC HYDRAULIC MOTOR - 600 (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
a00437-69
A43769
ENGINE
1шт.
h01437-80
H143780
SPARE PART SET
1шт.
Repair Kit
1шт.
n00460-58
N46058
OIL SEAL
1шт.
Included in Repair Kit
1шт.
u01345-22
U134522
SLOTTED NUT
1шт.
a00453-79
NLS
NO LONGER SERVICED
1шт.
Included in Repair Kit
1шт.
d00399-31
NLS
NO LONGER SERVICED
1шт.
f00338-15
43127
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
8шт.
Replaces E00338-14 and P00348-12
1шт.
c00347-09
C34709
WASHER
8шт.
Replaces E00338-14 and P00348-12
1шт.
p00348-12
P34812
WASHER
8шт.
q00521-55
Q52155
CAP
1шт.
w00304-49
W30449
O-RING
1шт.
Included in Repair Kit
1шт.
d00374-93
D37493
PLUG
1шт.
Not Existing on New Model
1шт.
b00284-29
B28429
COMPOSITE SEAL
1шт.
Not Existing on New Model
1шт.
Included in Repair Kit
1шт.
g01460-56
G146056
COMPOSITE SEAL
2шт.
Included in Repair Kit
1шт.
r00374-59
R37459
PLUG
2шт.
v00304-48
V30448
O-RING
1шт.
Included in Repair Kit
1шт.
a00363-17
A36317
RING, SNAP
RING SNAP
20шт.
w13462-56
W1346256
SHAFT
1шт.
w00338-53
W33853
SCREW
10шт.
s07330-72
S733072
SCREW
10шт.
Replaces W00338-53
1шт.
p00341-68
P34168
NUT
10шт.
a00228-85
A22885
BRAKE
5шт.
c00363-42
C36342
RING, SNAP
RING SNAP
1шт.
Not Existing on New Model
1шт.
e00347-11
E34711
WASHER
8шт.
Replaces R00236-59 and V00338-29
1шт.
r00338-25
R33825
CAM FOLLOWER
8шт.
Replaces R00236-59 and V00338-29
1шт.
r00236-59
R23659
BRAKE
4шт.
Included in Repair Kit
1шт.
v00338-29
614-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
8шт.
a00396-29
A39629
BEARING
1шт.
n00342-13
N34213
NUT
1шт.
h00369-68
H36968
BRAKE
1шт.
Included in Repair Kit
1шт.
r00279-83
R27983
FINGER
1шт.
t00303-08
T30308
SEAL,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro
1шт.
Included in Repair Kit
1шт.
h01303-48
H130348
O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro
1шт.
Included in Repair Kit
1шт.
p00521-54
P52154
COVER
1шт.
Выбрано товаров: 54
