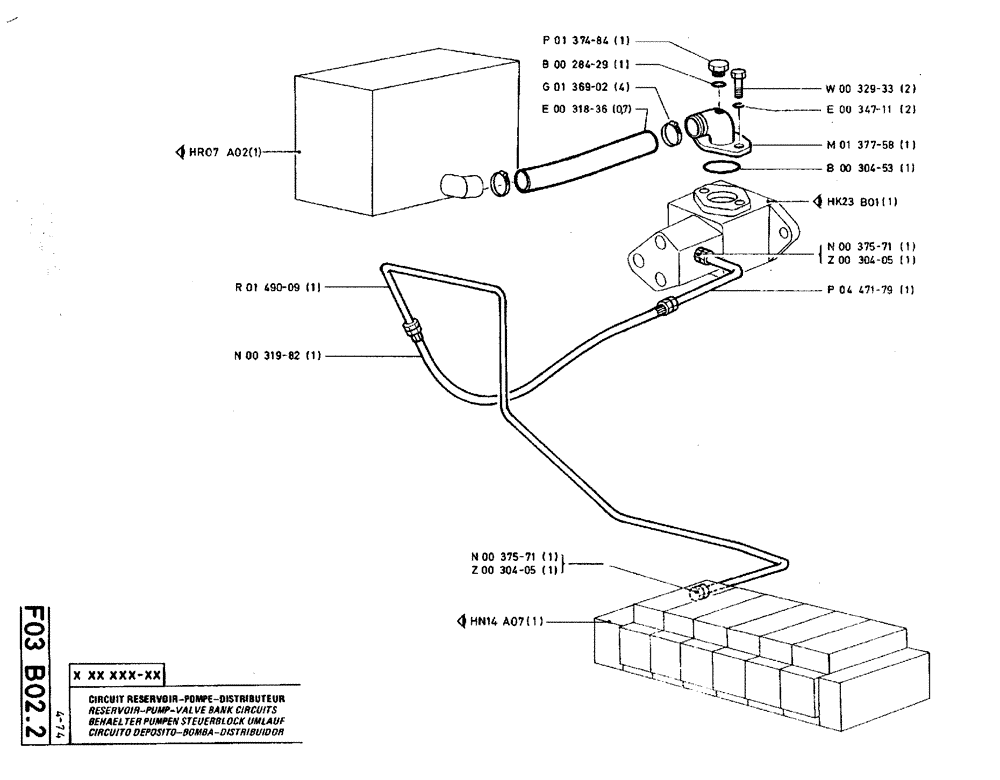

Запчасти Case TY45 (F03 B02.2) - RESERVOIR, PUMP, VALVE BANK CIRCUITS (07) - HYDRAULIC SYSTEM

r01490-09

R149009

PIPE

1шт.

n00319-82

N31982

HYDRAULIC HOSE

1шт.

p01374-84

P137484

PLUG

SPARE PART

1шт.

b00284-29

B28429

COMPOSITE SEAL

1шт.

g01369-02

G136902

COLLAR CLAMP

4шт.

e00318-36

E31836

LARGE HOSE

HOSE,LARGE

1шт.

n00375-71

N37571

UNION

1шт.

Union N°

1шт.

z00304-05

Z30405

O-RING

1шт.

Seal N°

1шт.

w00329-33

14420221

HEX SOC SCREW,M10 x 30mm, Cl 8.8

2шт.

e00347-11

E34711

WASHER

2шт.

m01377-58

M137758

ORIFICE RING

SPARE PART

1шт.

b00304-53

B30453

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

n00375-71

N37571

UNION

1шт.

Union N°

1шт.

z00304-05

Z30405

O-RING

1шт.

Seal N°

1шт.

p04471-79

P447179

PIPE

SPARE PART

1шт.
