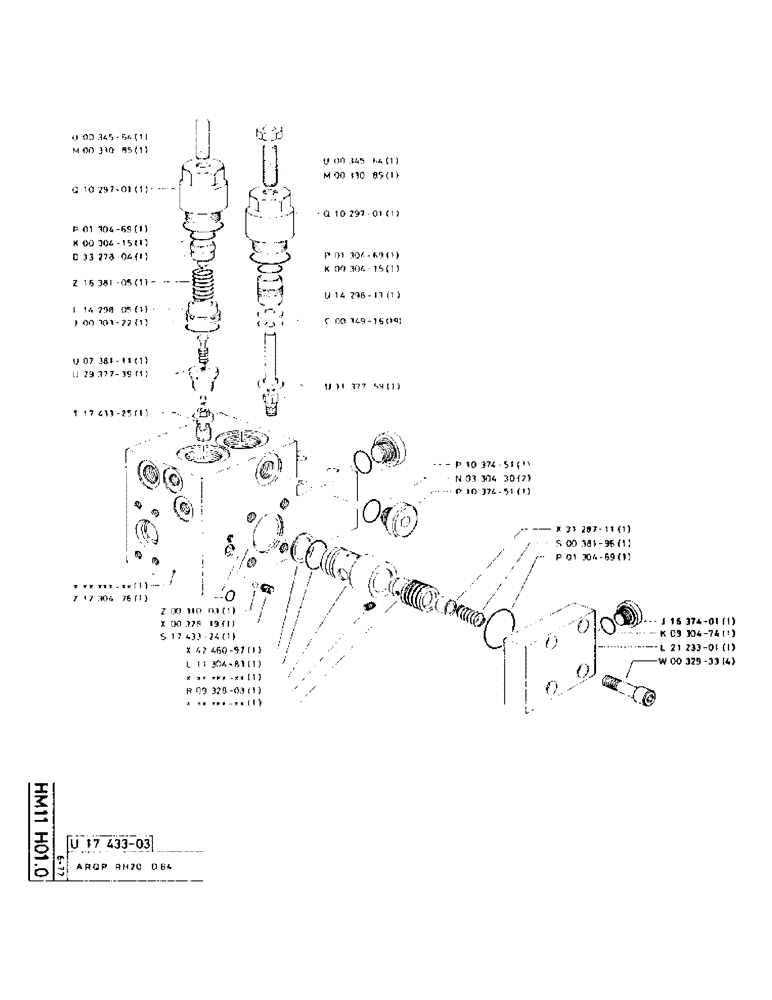

Запчасти Case 75P (109) - NO DESCRIPTION PROVIDED (07) - HYDRAULIC SYSTEM

P34564

NUT

1шт.

P33085

SCREW

M16 x 40

1шт.

P1029701

CAP

1шт.

P130469

O-RING,40.95MM ID x 2.62MM Width

2.62 x 40.94-80

1шт.

P30415

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

2.62 x 20.29-80

1шт.

P3327804

TAPPET

PUSHER

1шт.

P1638105

SPARE PART SPRING

1шт.

P1429805

1шт.

P30322

SEAL

3.6 x 29.3

1шт.

P738111

1шт.

P2937739

1шт.

P1743325

1шт.

P1230476

O-RING

2.62 x 7.59-80

1шт.

P31003

BALL

1шт.

P32819

SCREW

M8 x 8

1шт.

P1743324

1шт.

P4246097

BACK-UP RING

JOINT 3 x 25.81-90

1шт.

P1130483

O-RING

3.53 x 24.99-80

1шт.

P932803

1шт.

P34564

NUT

1шт.

P33085

SCREW

M16 x 40

1шт.

P1029701

CAP

1шт.

P130469

O-RING,40.95MM ID x 2.62MM Width

2.62 x 40.94-80

1шт.

P30415

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

2.62 x 20.29-80

1шт.

P1429813

TAPPET

PUSHER

1шт.

P34916

RUBBER WASHER

spring 25 x 12.2 x 1.5

19шт.

P1137759

SPARE PART ASSY.

1шт.

P1037451

PLUG

1шт.

P330430

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

2.62 x 21.89-80

2шт.

P1037451

PLUG

1шт.

P3128711

BLOCK

SHIM

1шт.

P38196

COMPRESSION SPRING

1шт.

P130469

O-RING,40.95MM ID x 2.62MM Width

2.62 x 40.94-80

1шт.

P1637401

PLUG

1шт.

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2.62 x 15.54-80

1шт.

P2123301

LARGE PLATE

PLATE, LARGE

1шт.

P32933

SCREW

M10 x 30

4шт.
