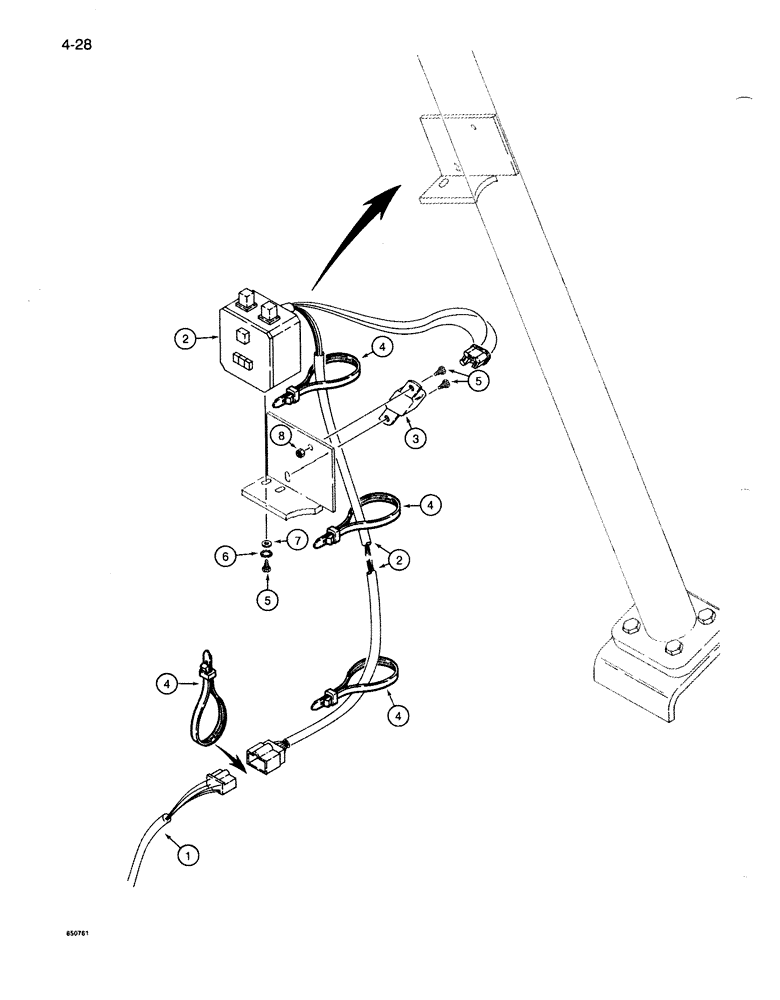

Запчасти Case 1086B (4-028) - TURN SIGNAL SWITCH AND HARNESS (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HARNESS - cab wiring, see Fig 4-22 for correct harness

1шт.

2

S515400

SWITCH

HARNESS ASSEMBLY - with switch, turn signal

1шт.

3

S242262

FLASHER UNIT

FLASHER - turn signal

1шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

5

276-20510

SELF-TAP SCREW,Hex Hd, #10 x 5/8"

SCREW - self-tapping, hex head, No. 10 NC x 5/8 inch

3шт.

6

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

1шт.

7

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch

1шт.

8

86632551

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

1шт.
