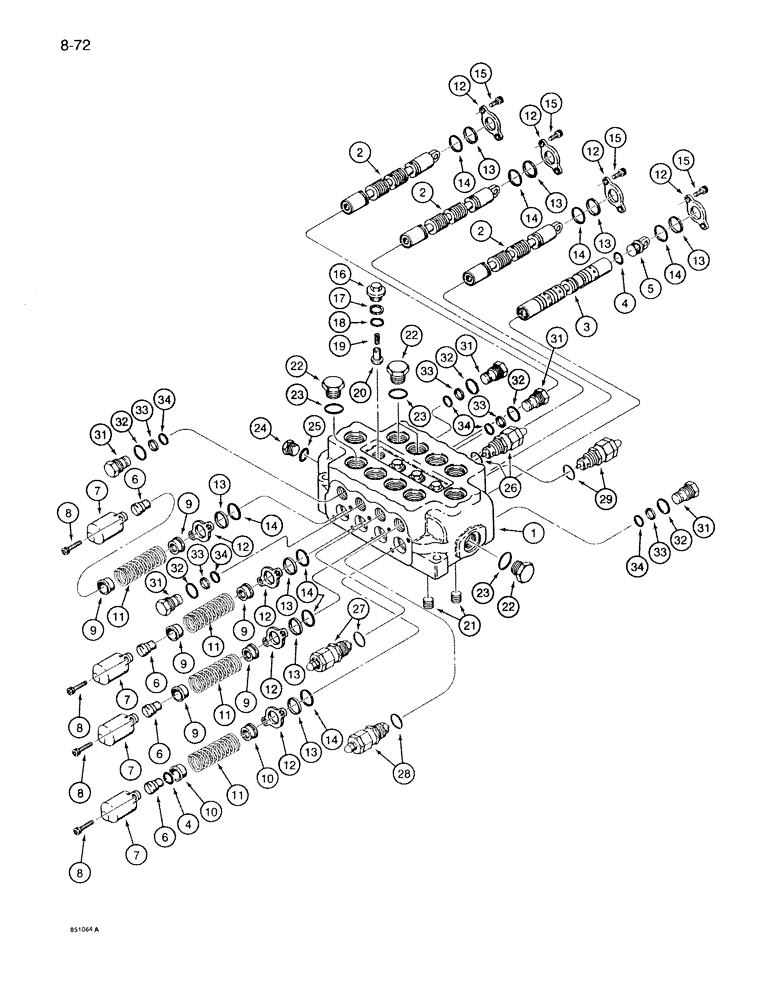

Запчасти Case 1086B (8-072) - 1086B FOUR SPOOL VALVE - OUTSIDE (08) - HYDRAULICS

S516927

VALVE

ASSEMBLY - control, outside, 1086B, Includes: Ref. 1 - 34

1шт.

S606891

VALVE

ASSEMBLY - control, basic valve without relief valves, Includes: Ref. 1 - 34

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - left-hand and center

3шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - right hand only

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, RH spool ends

2шт.

5

S62289

END

EYE - right-hand spool

1шт.

6

S62290

BOLT

- special, spool ends

4шт.

7

S62278

CAP

- spool

4шт.

8

61-616

HEX SOC SCREW,3/8"-16 x 1"

BOLT - hex socket head, 3/8 NC x 1 inch

8шт.

9

S62288

SEAT

- spring, left-hand and center spools

6шт.

10

S107817

SEAT

- spring, right-hand spool

2шт.

11

S109959

SPRING

- spool centering

4шт.

12

S13829

PLATE

- seal retaining

8шт.

13

S62092

WIPER

- spool

8шт.

14

N13282

O-RING,0.984" ID x 0.139" Width

O-RING - spool

8шт.

15

61-68

HEX SOC SCREW,3/8"-16 x 1/2"

BOLT - hex socket head, 3/8 NC x 1/2 inch

8шт.

S105062

PLUG

ASSEMBLY - check valve, Includes: Ref. 16 - 18

4шт.

16

S105094

PLUG

- check valve

1шт.

17

S105095

RING

- backup, plug O-ring

1шт.

18

238-5215

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

- 1-1/16 ID x 1/8 inch

1шт.

19

S13715

SPRING

- check valve

4шт.

20

S13716

VALVE POPPET

POPPET - check valve

4шт.

21

221-843

PLUG,Hex Soc, 3/8"-18

- hex socket, 3/8 inch PT

2шт.

22

273916

PLUG,Hex, 1-5/16" - 12 ORB

RH end port, Includes Ref. 23 Hex Hd, 1 5/16"-12 ORB

4шт.

23

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

24

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

- hex, 1-5/8-12 inch O-ring boss, Includes: Ref. 25

1шт.

25

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Elbow

1шт.

26

S616869

VALVE, PRESSURE RELI

VALVE - circuit relief, parts list Figure 8-76

1шт.

27

S616864

VALVE, PRESSURE RELI

VALVE - circuit relief, parts list Figure 8-76

1шт.

28

S616867

VALVE

- circuit relief, parts list Figure 8-76

1шт.

29

S616862

VALVE

- circuit relief, parts list Figure 8-76

1шт.

S81690

PLUG

ASSEMBLY - relief port, Includes: Ref. 31 - 34

5шт.

31

NSS

NOT SOLD SEPARAT

PLUG - body

1шт.

32

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch, outer

1шт.

33

S93829

BACK-UP RING,0.609" ID x 0.052" Width

- backup, inner O-ring

1шт.

34

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

Inner -113, Cl 7, .549" ID x .103" Thk

1шт.
