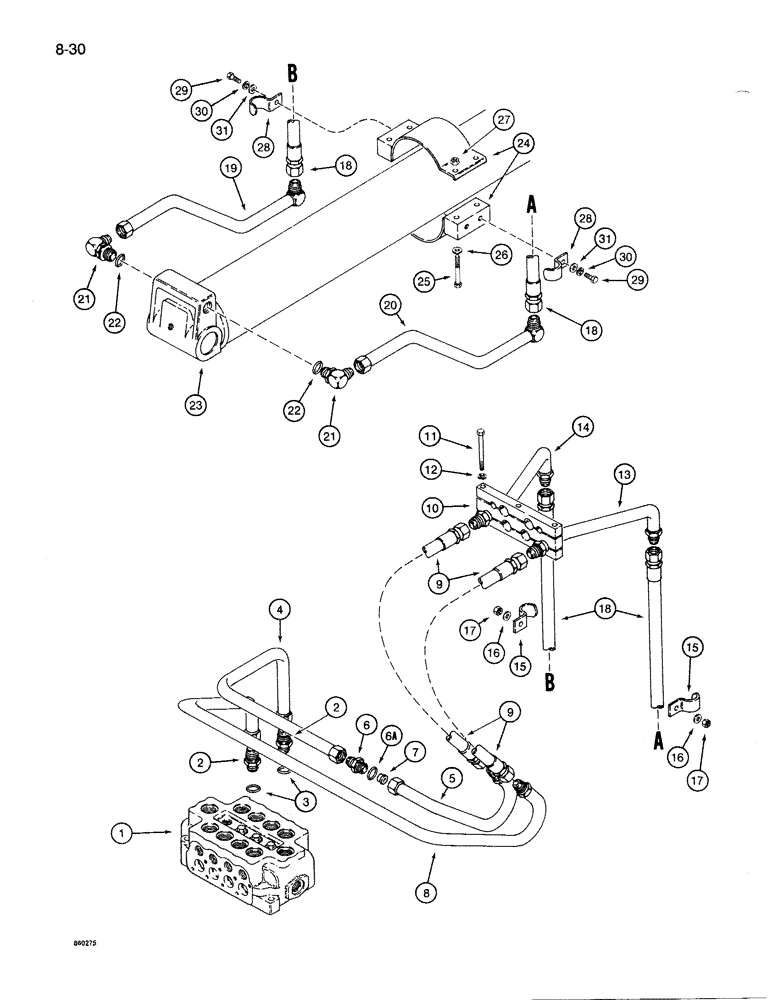

Запчасти Case 1086B (8-030) - BOOM CYLINDER CIRCUIT, USED WITH 1086B LOGGER BOOM (08) - HYDRAULICS

1

S516927

VALVE

ASSEMBLY - outside, 4 spool, parts list Fig. 8-072

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

4

S517004

TUBE ASSY.,31.75 mm OD

TUBE - boom cylinder, closed end, at valve

1шт.

5

S517002

TUBE ASSY.,31.75 mm OD

TUBE - boom cylinder, closed end, at valve

1шт.

6

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 6A

1шт.

6a

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

7

S79252

REGULATOR

RESTRICTOR - boom cylinder, closed end

1шт.

8

S517001

TUBE ASSY.,31.75 mm OD

TUBE - boom cylinder, rod end, at valve

1шт.

9

S8628

HOSE

- 36 inch (914 mm) long, to boom cylinder, at boom

2шт.

10

S242746

CLAMP

- tube, at lower boom

1шт.

11

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

3шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

13

S242742

TUBE ASSY.,31.75 mm OD x 375, 110 mm L

TUBE - boom cylinder, rod end, at boom

1шт.

14

S242741

TUBE ASSY.,31.75 mm OD

TUBE - boom cylinder, closed end, at boom

1шт.

15

S87573

CLAMP

- hose, at boom side

2шт.

16

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

2шт.

17

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

2шт.

18

S235936

HOSE

- 49 inch (1245 mm) long, to boom cylinder, at cylinder

2шт.

19

S242740

TUBE ASSY.,31.75 mm OD x 660, 228 mm L

TUBE - boom cylinder, closed end, at cylinder

1шт.

20

S242739

TUBE ASSY.,31.75 mm OD x 660, 228 mm L

TUBE - boom cylinder, rod end, at cylinder

1шт.

21

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss, Incl. Ref. 22

2шт.

22

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

23

S956920

CYLINDER

ASSEMBLY - logger boom, parts list Fig. 8-096

1шт.

24

S242743

CLAMP

- tube, at boom cylinder

2шт.

25

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

4шт.

26

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

4шт.

27

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

4шт.

28

S87573

CLAMP

- hose to boom cylinder

2шт.

29

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

30

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

31

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

2шт.
