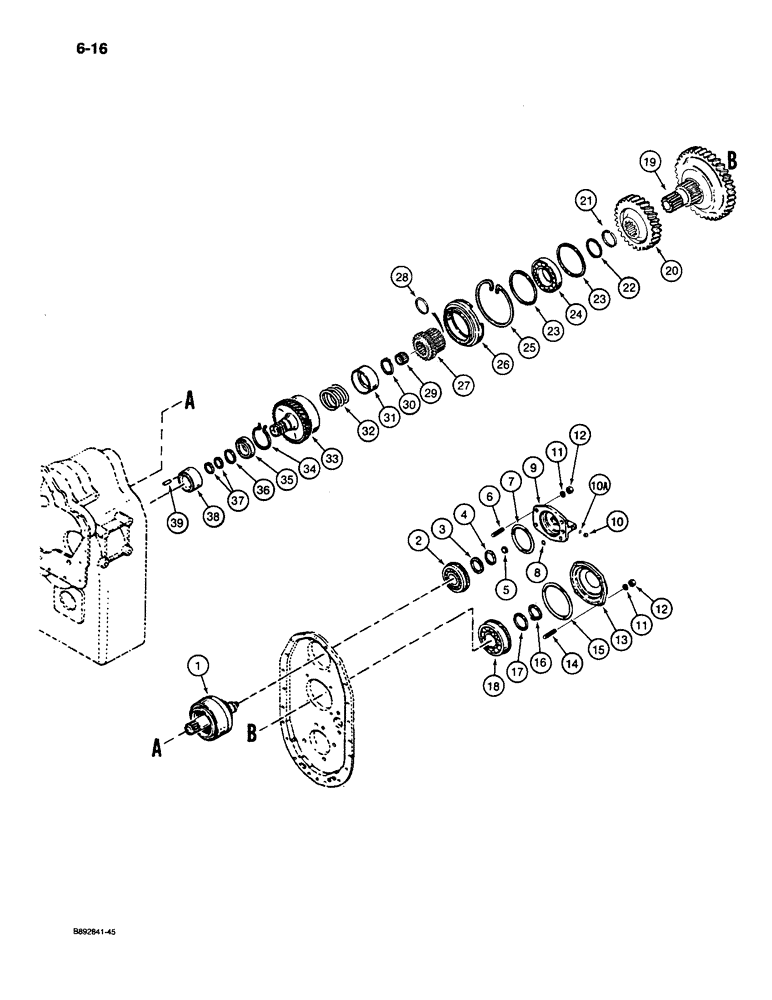

Запчасти Case 1085C (6-16) - TRANSMISSION, LOW AND THIRD SPEED CLUTCHES, GEARS, SHAFTS AND BEARINGS (06) - POWER TRAIN

S619636

TRANSMISSION

ASSEMBLY - Includes: Ref. 1 - 39 this figure, 1 - 42 figure 6-14, 1 - 40 figure 6-18, 1 - 37A figure 6-20, 1 - 30 figure 6-22, 1 - 34 figure 6-24, and 1 - 35 figure 6-26

1шт.

1

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - low speed, parts list Figure: 6-24

1шт.

2

N7276

BALL BEARING,50mm ID x 110mm OD x 27mm W

BEARING - ball, low speed shaft

1шт.

3

E114268

BEARING WASHER

WASHER - special, bearing support

1шт.

4

E114334

CLIP

RING - retaining, bearing

1шт.

5

N7260

RING

- piston, low shaft

1шт.

6

N7209

BEARING CAP

STUD - bearing cap

4шт.

7

N8134

O-RING

- bearing cap

1шт.

8

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- bearing cap, small

1шт.

D142544

COVER ASSY

CAP ASSEMBLY - low shaft bearing, Includes: Ref. 9 - 10A

1шт.

9

NSS

NOT SOLD SEPARAT

CAP - low shaft bearing

1шт.

10

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Includes Ref. 10A Hex Hd, 3/8"-24 ORB

1шт.

10a

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

11

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

12

25-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

8шт.

13

E114365

BEARING CAP

CAP - idler shaft bearing

1шт.

14

N7209

BEARING CAP

STUD - bearing cap

4шт.

15

A27384

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

- bearing cap

1шт.

16

E114367

CLIP

RING - retaining, bearing

1шт.

17

E114368

WASHER, THRUST

WASHER - special, bearing support

1шт.

18

S300101

BALL BEARING,55.001 mm ID x 120 mm OD x 29 mm

BEARING - ball, idler shaft

1шт.

19

S301105

SHAFT

- idler

1шт.

20

N14392

GEAR

- idler shaft

1шт.

21

A55775

OIL SEAL

RING - snap, idler gear

1шт.

22

E114345

RING

- retaining, bearing

1шт.

23

E114346

O-RING

RING - bearing locating

2шт.

24

E114347

BEARING

- ball, third clutch disc hub

1шт.

25

E114349

RING, SNAP

RING - snap, bearing carrier

1шт.

26

E114350

BEARING CARRIER

CARRIER - bearing

1шт.

27

N8418

GEAR WHEEL

GEAR AND HUB ASSEMBLY - third clutch, Includes: Ref. 28

1шт.

28

N13129

RING

- retaining, third gear

1шт.

29

N7216

NEEDLE BEARING,1.125" ID x 1.5012" OD x 1"

BEARING - roller, pilot, third clutch shaft

1шт.

30

E114328

RING, SNAP

RING - snap, spring

1шт.

31

E114332

RETAINER

- spring

1шт.

32

E114331

SPRING

- piston return

1шт.

33

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - third, parts list Figure: 6-24

1шт.

34

S114352

RING

- snap, bearing

1шт.

35

S89657

BEARING

- third clutch shaft

1шт.

36

49478

TABLE

Ring, Snap, #196, Ext, bearing

1шт.

37

A17925

SPRING

RING - piston, third clutch shaft

2шт.

38

E114353

BEARING, ROLLER

RACE - bearing

1шт.

39

E114354

AXLE PIN

PIN - roll, race

1шт.
