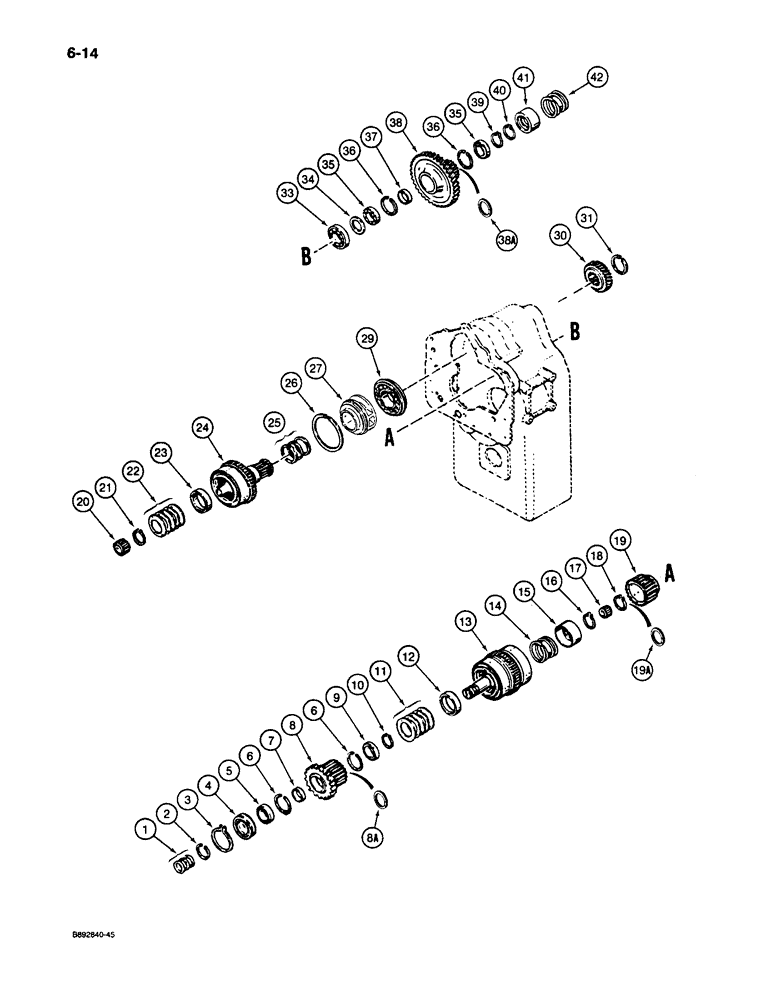

Запчасти Case 1085C (6-14) - TRANSMISSION, FORWARD, REVERSE AND SECOND SPEED CLUTCHES, GEAR, SHAFTS AND BEARINGS (06) - POWER TRAIN

S619636

TRANSMISSION

ASSEMBLY - Includes: Ref. 1 - 42 this figure, 1 - 39 figure 6-16, 1 - 40 figure 6-18, 1 - 37A figure 6-20, 1 - 30 figure 6-22, 1 - 34 figure 6-24, and 1 - 35 figure 6-26

1шт.

1

A17925

SPRING

RING - sealing, reverse and second shaft

3шт.

2

L33512

RING

- retaining, bearing

1шт.

3

S89652

RING

- snap, bearing

1шт.

4

S89654

BALL BEARING,40mm ID x 90mm OD x 23mm W

BEARING - ball, reverse and second shaft

1шт.

5

A28236

BALL BEARING,1.5743" ID x 2.6772" OD x 0.5906"

BEARING - ball, reverse gear, outer

1шт.

6

E114325

RING, SNAP

RING - retaining, bearing

2шт.

7

E114326

SPACER

- reverse gear

1шт.

8

N7270

GEAR

AND HUB ASSEMBLY - reverse clutch, Includes: Ref. 8A

1шт.

8a

N13129

RING

- oil retaining, reverse clutch

1шт.

The oil retaining ring is an internal part of the gear and it is recommended that the ring should not be removed.

1шт.

9

L33513

BALL BEARING,1.6748" ID x 2.6772" OD x 0.5906"

BEARING - ball, reverse gear, inner

1шт.

10

D87257

RING

- snap, spring

1шт.

11

D87249

SPRING

- Belleville, piston return

5шт.

12

N7215

SPACER

- spring

1шт.

13

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - reverse and second, parts list Figure: 6-24

1шт.

14

E114331

SPRING

- piston return

1шт.

15

E114332

RETAINER

- spring

1шт.

16

E114328

RING, SNAP

RING - snap, spring

1шт.

17

N7216

NEEDLE BEARING,1.125" ID x 1.5012" OD x 1"

BEARING - roller, reverse and second shaft

1шт.

18

E114334

CLIP

RING - retaining, second clutch disc hub

1шт.

19

N8749

GEAR

- second clutch disc hub, Includes: Ref. 19A

1шт.

19a

N13129

RING

- oil retaining, second clutch disc hub

1шт.

The oil retaining ring is an internal part of the gear and it is recommended that the ring should not be removed.

1шт.

20

E114339

NEEDLE BEARING,44.44mm ID x 54.02mm OD x 19.05mm W

BEARING - roller, forward shaft pilot

1шт.

21

D87257

RING

- snap, spring

1шт.

22

D87249

SPRING

- Belleville, piston return

5шт.

23

N7215

SPACER

- piston return spring

1шт.

24

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - forward, parts list Figure: 6-24

1шт.

25

A55824

SEAL

RING - piston, forward shaft

3шт.

26

E114355

RING

- retaining, piston sleeve

1шт.

27

E114356

BUSHING

SLEEVE - piston

1шт.

29

N9442

BALL BEARING

BEARING - ball, forward shaft

1шт.

30

N13325

GEAR WHEEL

GEAR - forward shaft

1шт.

31

S117877

RING

- retaining, gear

1шт.

33

E114340

BALL BEARING

BEARING - ball, low speed clutch shaft

1шт.

34

E114341

SPACER

- bearing

1шт.

35

S89657

BEARING

- ball, low speed gear

2шт.

36

S89658

RING

- bearing locating

2шт.

37

N7213

SPACER

- low speed gear

1шт.

38

N13326

CYLINDER END CAP

HUB - low gear, Includes: Ref. 38A

1шт.

38a

N13129

RING

- oil retaining, low gear hub

1шт.

The oil retaining ring is an internal part of the gear and it is recommended that the ring should not be removed.

1шт.

39

E114334

CLIP

RING - retaining, low gear bearing

1шт.

40

E114328

RING, SNAP

RING - snap, spring retainer

1шт.

41

E114332

RETAINER

- spring

1шт.

42

E114331

SPRING

- piston return

1шт.
