(6-12) - TRANSMISSION OIL FILTER

Запчасти Case 1085C (6-12) - TRANSMISSION OIL FILTER (06) - POWER TRAIN

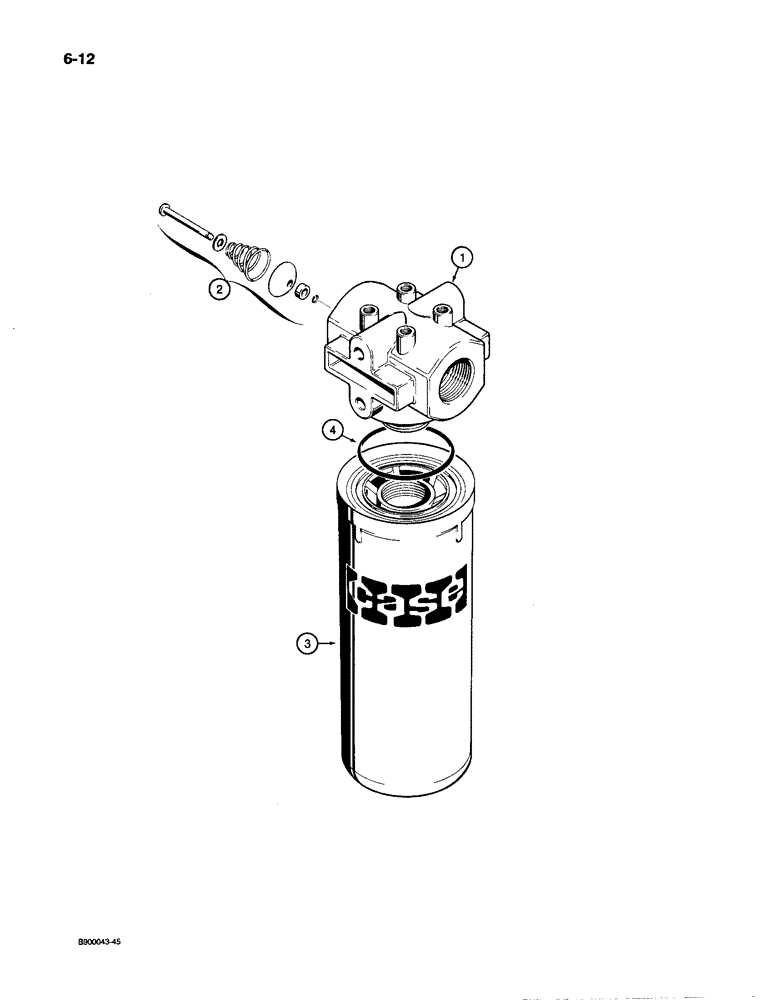

Схема запчастей Case 1085C - (6-12) - TRANSMISSION OIL FILTER (06) - POWER TRAIN
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

R50518

FILTER

ASSEMBLY - transmission hydraulic circuit, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - bypass

1шт.

N9025

HYDRAULIC OIL FILTER

ELEMENT ASSEMBLY - filter, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

4

70923815

O-RING,-230, 70 Duro, 2.484" ID x .139" Thk

-, Serial Range: element-head

1шт.
