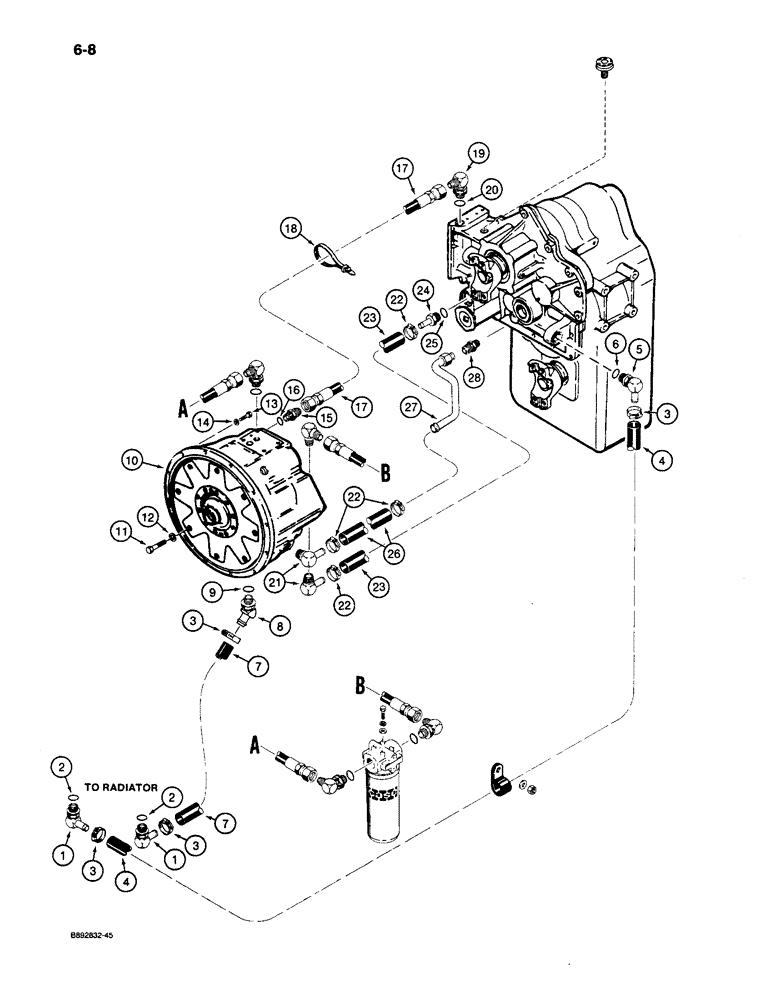

Запчасти Case 1085C (6-08) - TRANSMISSION HYDRAULICS, TORQUE CONVERTER AND TRANSMISSION LINES (06) - POWER TRAIN

1

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

- stem, 90 deg, 3/4 hose ID x 7/8-14 inch adj O-ring, Includes: Ref. 2

2шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

3

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

- adj. #16, 0.81/1.50 Type F Worm

4шт.

4

S120622

HYDRAULIC HOSE,0.75" ID x 112.00", SAE 100R3 Class H

- Radiator to transmission, Cut from S118382, See below 0.75" ID x 112.00", SAE 100R3 Class H

1шт.

5

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 90 degree, 3/4 stem end x 1-1/16-12 inch O-ring, Incl. Ref. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

7

S119452

HOSE,0.75" ID x 70.00", SAE 100R3 Class H

Radiator to Torque Converter, Cut from Bulk, See below 0.75" ID x 70.00", SAE 100R3 Class H

1шт.

8

217-315

FITTING,45 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 45 degree, adj, 3/4 stem end x 1-1/16-12 inch O-ring, Includes: Ref. 9

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

10

S619354

CONVERTER

ASSEMBLY - torque, parts list Figures: 6-02 through 6-06

1шт.

11

414-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- hex, 3/8 NF x 1-3/4 inch

8шт.

12

492-11038

LOCK WASHER,3/8"

8шт.

13

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10 mm - 1.5 x 40 mm

12шт.

14

892-11010

LOCK WASHER,M10

12шт.

15

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 16

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

S11230

HOSE

- 28 inch (711 mm) long, torque, Serial Range: converter-transmission

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

19

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adj, 3/4-16 inch flare x O-ring boss, Includes: Ref. 20

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

21

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

- 90 degree, 1 inch stem end x PT

2шт.

22

214-378

CLAMP,1.40"-1.56", T-Bolt

- adj, 1-13/32 to 1-9/16 inch dia

4шт.

23

S121069

HYDRAULIC HOSE,1.00" ID x 32.00", SAE 100R3 Class H

- 1 (25) x 1-1/2 (38) inch (813 mm) long, Torque converter to transmission, Cut from S118383, See below

1шт.

24

217-316

FITTING,45 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

ELBOW - 45 degree, 1 stem end x 1-5/16-12 inch adj O-ring, Includes: Ref. 25

1шт.

25

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

26

S120214

HOSE,1.00" ID x 34.00", SAE 100R3 Class H

- Torque converter to transmission, Cut from S118383, See below 1.00" ID x 34.00", SAE 100R3 Class H

1шт.

27

S517788

TUBE

- at transmission

1шт.

28

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

ADAPTER - straight, 1-5/16-12 flare x 1 inch PT

1шт.

S118382

HOSE,0.75" ID x 240.00", SAE 100R4

0.75" ID x 240.00" Bulk, SAE 100R4

1шт.

S118383

HOSE,1.00" ID x 192.00", SAE 100R3

1.00" ID x 192.00" Bulk, SAE 100R3

1шт.
