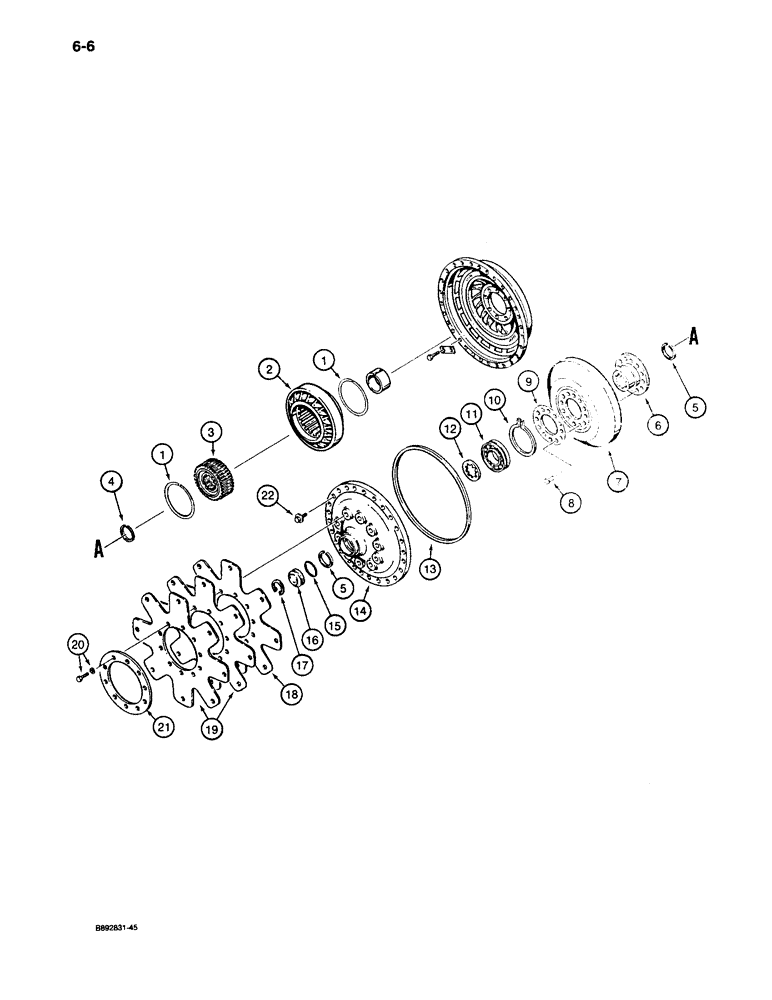

Запчасти Case 1085C (6-06) - TORQUE CONVERTER, IMPELLER, PLATES AND COVERS (06) - POWER TRAIN

S619354

CONVERTER

ASSEMBLY - torque, parts list Figures: 6-02 through 6-06, Includes: Ref. 1 - 22

1шт.

1

N7262

RING, SNAP

RING - snap, reaction member

2шт.

2

N7377

MEMBER

STATOR - torque converter

1шт.

3

N7686

CLUTCH ASSEMBLY

CLUTCH - freewheel, service as an assembly only

1шт.

4

E114286

CIRCLIP

RING - retaining, bearing, small

1шт.

5

E114288

RING

- retaining, hub and cover

2шт.

6

N7378

BRACKET

HUB - turbine

1шт.

7

N7379

TURBINE

- torque converter

1шт.

8

D142272

LOCK BOLT,Locking, Hex, 3/8" - 24 x 3/4", Gr 8

BOLT - special, Serial Range: turbine-hub

12шт.

9

D142273

WASHER

RING - retainer, Serial Range: turbine-hub

1шт.

10

E114290

RING

- bearing locating

1шт.

11

E114291

BALL BEARING

BEARING - ball, turbine hub

1шт.

12

E114292

WASHER

- bearing retaining

1шт.

13

T42352

SEALING RING,Square, 2.69mm Thk x 64.52mm ID

- impeller cover

1шт.

14

N7380

COVER

- impeller

1шт.

15

A62193

O-RING,1.424" ID x 1.63" OD

- plug

1шт.

16

E114296

PLUG

- bore

1шт.

17

K621779

SNAP RING,1.688, Int, #168

Ring, Snap, 1.688", Int, #168, bore plug

1шт.

D142271

KIT

- flex plate drive, Includes: Ref. 18 - 21

1шт.

Anytime this kit is ordered for the 1085c using the S619354 torque converter the N14753 flex plate kit should be supplied.

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE - flex, drive, threaded bolt holes

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE - flex, drive

2шт.

20

CAS11447

BOLT

- with lock washer

10шт.

21

E114300

PLATE

RING - flex plate

1шт.

22

D58177

CAPTIVE WASHER SCREW,3/8" - 16 x 1"

BOLT - includes lockwasher

24шт.
