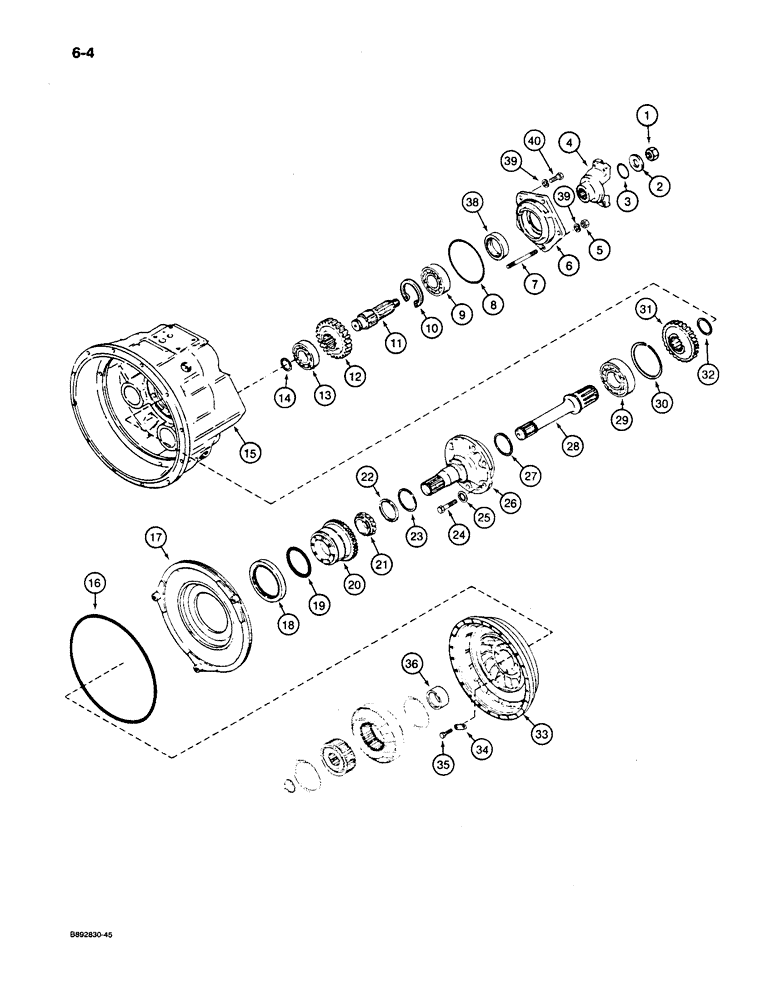

Запчасти Case 1085C (6-04) - TORQUE CONVERTER, SHAFTS, GEARS AND BEARINGS (06) - POWER TRAIN

S619354

CONVERTER

ASSEMBLY - torque, parts list Figures: 6-02 through 6-06, Includes: Ref. 1 - 40

1шт.

1

A55863

LOCK NUT

- flange, special

1шт.

2

A17938

WASHER

- flange

1шт.

3

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- flange

1шт.

4

S301083

FLANGE

- output, Serial Range: driveshaft-transmission

1шт.

5

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

2шт.

6

S105583

FLANGE

RETAINER - bearing

1шт.

7

A18008

STUD

- retainer

2шт.

8

N6597

O-RING

- retainer

1шт.

9

ST436

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

BEARING - ball, output shaft, outer, yoke end

1шт.

10

D47486

SNAP RING

RING - snap, bearing retaining

1шт.

11

S89538

SHAFT

- output

1шт.

12

S301084

GEAR

- output shaft

1шт.

13

S105779

BALL BEARING

BEARING - ball, output shaft, front

1шт.

14

S89771

SEAL

RING - retaining

1шт.

15

L30341

HOUSING

- torque converter

1шт.

16

S5871

O-RING,11.984" ID x 12.262" OD x 0.139"

- oil baffle

1шт.

17

N6561

BAFFLE

- oil

1шт.

18

S117841

OIL SEAL

- oil baffle

1шт.

19

E114281

O-RING,3.63mm Thk x 92.89mm ID, 75 Duro

- impeller hub

1шт.

20

S117842

GEAR

- impeller hub

1шт.

21

D77034

BEARING, ROLLER, CYL,49.99mm ID x 72.1mm OD x 16mm W

BEARING - roller, impeller hub

1шт.

22

D87244

RING,Locking, 67.31mm ID x 72.14mm OD x 3.05mm Thk

- sealing

1шт.

23

D87245

RING

SPRING - expander

1шт.

24

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

6шт.

25

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

6шт.

26

S117843

SUPPORT

- stator

1шт.

27

A18012

RING,Locking, 54.74mm ID x 60.33mm OD x 3.15mm Thk

- sealing, turbine shaft

1шт.

28

S117844

SHAFT

- turbine

1шт.

29

N7486

BALL BEARING,1.9685" ID x 4.3307" OD x 1.063"

BEARING - ball, turbine shaft

1шт.

30

A17997

RING

- bearing retainer

1шт.

31

S301085

GEAR

- turbine shaft

1шт.

32

A27089

SNAP RING,2.36mm Thk, Ext

RING - retainer

1шт.

33

S117845

IMPELLER

- torque converter

1шт.

34

E114283

LOCK

TAB - lock, impeller bolts

4шт.

35

28-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 8

- hex, 3/8 NF x 3/4 inch, grade 8

8шт.

36

N13028

SPACER

- freewheel

1шт.

37

S89927

CAP

PLUG - center output hole, if used, not shown

1шт.

38

L30014

OIL SEAL

- oil, output shaft

1шт.

39

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

5шт.

40

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

3шт.
