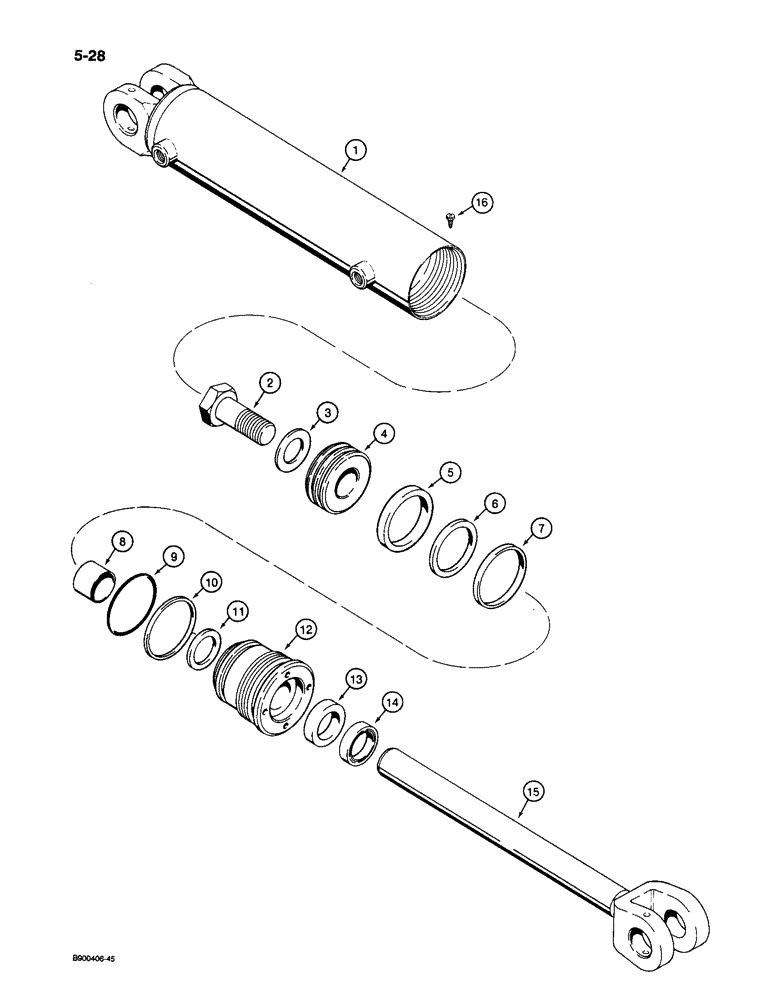

Запчасти Case 1085C (5-28) - STEERING CYLINDER (05) - STEERING

1978348C3

JACK BODY

CYLINDER ASSEMBLY - 2-3/4 (70) ID x 10 inch (255 mm) stroke steering, Includes: Ref. 1 - 15

2шт.

1

1978352C1

HYD TUBE

TUBE - cylinder

1шт.

2

28-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 8

- hex, 5/8 NF x 1-3/4 inch, grade 8

1шт.

3

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, 21/32 x 1-5/16 x 9/64 inch, hardened

1шт.

4

1346135C1

PISTON

- cylinder

1шт.

5

G105187

RING

- wear, piston

1шт.

6

G104439

RING

- seal, inner

1шт.

Part of seal kit P/N G110047

1шт.

7

G104454

SEALING RING,Locking, 65.89mm ID x 71.02mm OD x 6.96mm Thk

- piston

1шт.

Part of seal kit P/N G110047

1шт.

G108983

GLAND

ASSEMBLY - cylinder, Includes: Ref. 8 - 14

1шт.

8

G102864

BEARING

BUSHING - gland

1шт.

9

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G110047

1шт.

10

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of seal kit P/N G110047

1шт.

11

G109092

SEAL,31.37mm ID x 44.63mm OD x 3.05mm Thk

- piston rod, narrow

1шт.

Part of seal kit P/N G110047

1шт.

12

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

13

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod, wide

1шт.

Part of seal kit P/N G110047

1шт.

14

D95141

WIPER SEAL

WIPER - piston rod, outer

1шт.

Part of seal kit P/N G110047

1шт.

1978355C1

ROD

ASSEMBLY - piston, cylinder, 1-1/4 inch (32 mm) diameter, Includes: Ref. 15

1шт.

15

NSS

NOT SOLD SEPARAT

ROD - piston, cylinder

1шт.

16

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex, self tapping, No. 8 NC x 3/8 "

1шт.

G110047

GASKET KIT

KIT - seal, Includes Refs. 6, 7, 9, 10, 11, 13 and 14

1шт.
