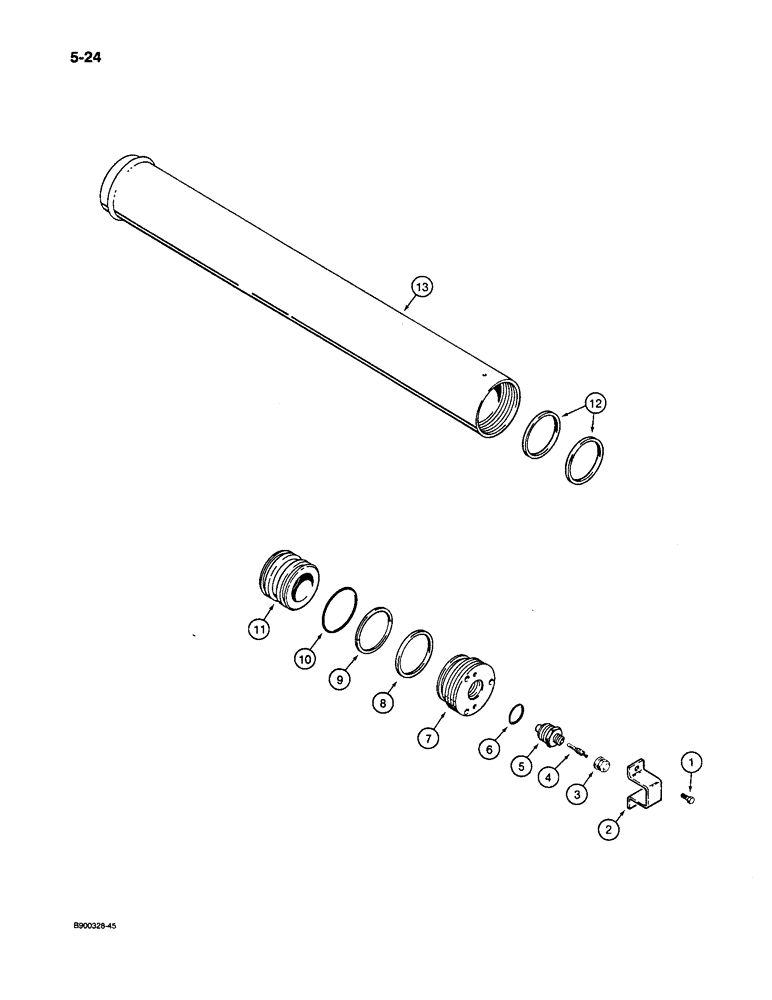

Запчасти Case 1085C (5-24) - STEERING ACCUMULATOR (05) - STEERING

S517626

ACCUMULATOR

ASSEMBLY - steering, see Figure: 5-12 for mounting hardware, Includes: Ref. 1 - 13

1шт.

1

S301367

SCREW

- special, bracket

2шт.

2

S301366

SUPPORT

BRACKET - protection, valve

1шт.

1978142C1

VALVE

ASSEMBLY - charge, Includes: Ref. 3 - 5

1шт.

3

1978144C1

CAP

- charge valve

1шт.

4

1978143C1

PISTON

VALVE - charge valve assembly

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

6

1978158C1

O-RING

- charge valve

1шт.

7

S301363

GLAND

- accumulator

1шт.

S301368

SEAL KIT

KIT - seal, accumulator, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

RING - seal, gland

1шт.

9

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

11

S301364

PISTON

- accumulator

1шт.

12

S301365

RING

- wear, Teflon, piston

2шт.

13

NSS

NOT SOLD SEPARAT

TUBE - accumulator

1шт.
