Запчасти Case 1085C (5-22) - PUMP COMPENSATOR KIT (05) - STEERING

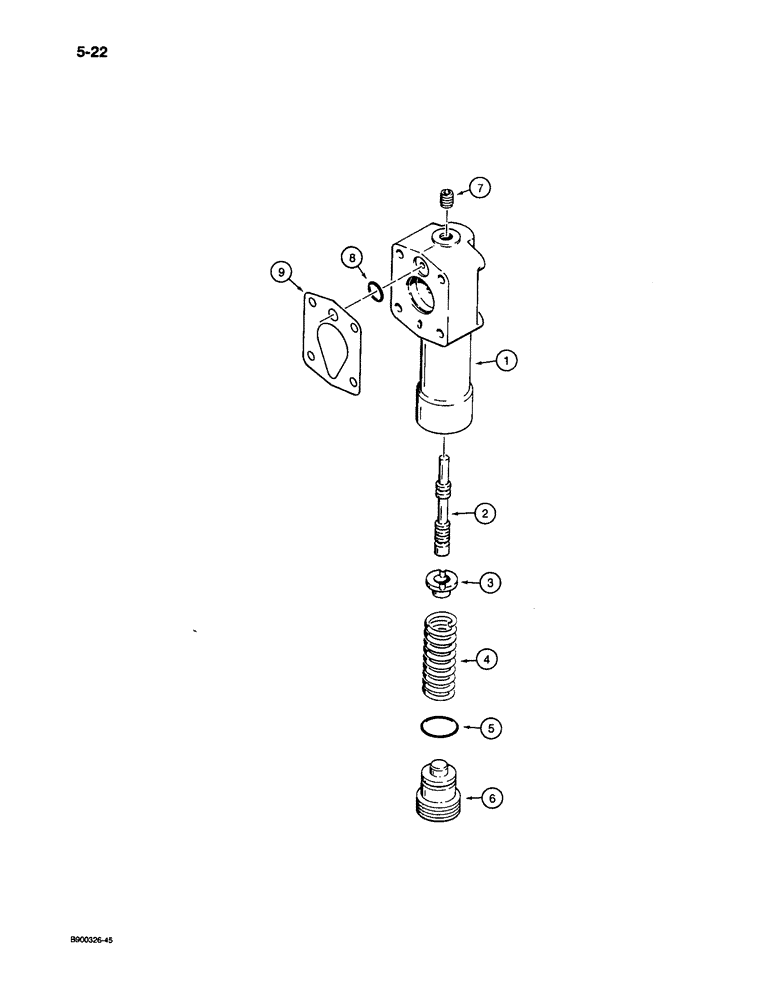

Схема запчастей Case 1085C - (5-22) - PUMP COMPENSATOR KIT (05) - STEERING

Артикул

Название

Примечание

Количество

1986597C1

KIT

- compensator, pump, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - compensator

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - pressure limiter

1шт.

3

NSS

NOT SOLD SEPARAT

SEAT - pressure limiter spool

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING - pressure limiter spool

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - pressure plug

1шт.

Part of O-ring, seal and gasket kit P/N 1263244C2

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG - spool adjusting

1шт.

7

NSS

NOT SOLD SEPARAT

PLUG - compensator body

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - compensator

1шт.

Part of O-ring, seal and gasket kit P/N 1263244C2

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET - compensator to valve block

1шт.

Part of O-ring, seal and gasket kit P/N 1263244C2

1шт.

1263244C2

PACKAGE

KIT - O-ring, seal and gasket, Includes Refs. 5, 8 and 9 this figure, 23 - 26 on figure 5-18, and 35 and 38 on figure 5-20

1шт.

Выбрано товаров: 14
