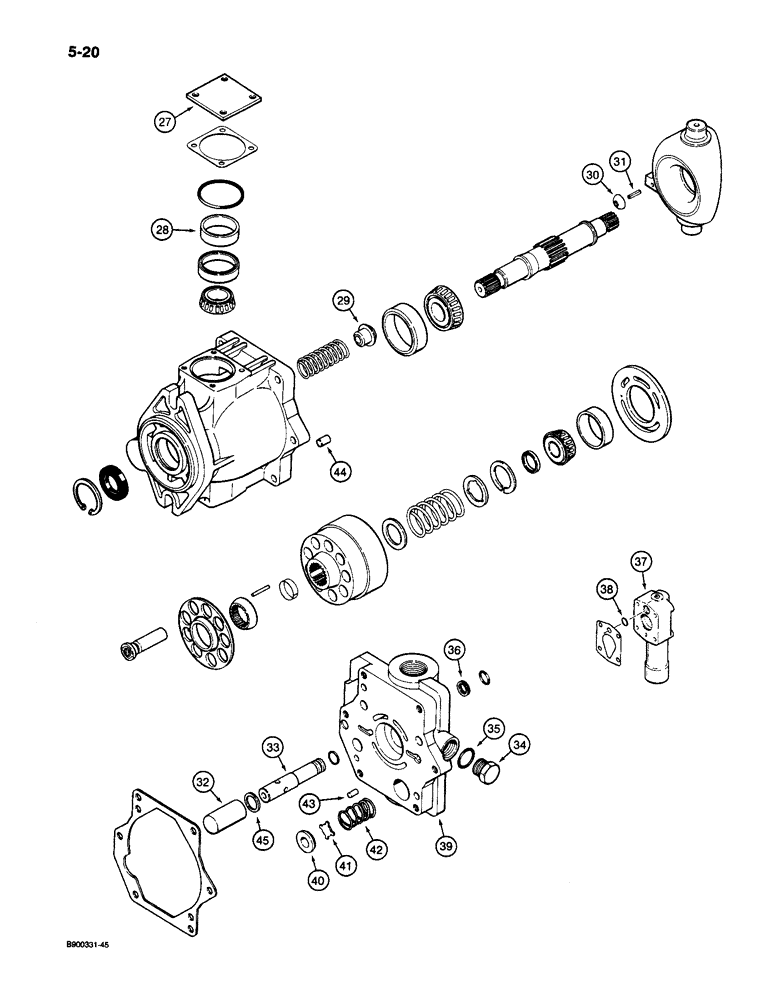

Запчасти Case 1085C (5-20) - STEERING AND CONTROL PUMP (05) - STEERING

1978376C1

PUMP

ASSEMBLY - steering and control, Includes: Ref. 27 - 45 and 1 - 26 on Figure 5-18

1шт.

27

NSS

NOT SOLD SEPARAT

COVER - housing

2шт.

28

NSS

NOT SOLD SEPARAT

SPACER - bearing

2шт.

29

NSS

NOT SOLD SEPARAT

SEAT - yoke spring

1шт.

30

NSS

NOT SOLD SEPARAT

SEAT - spherical

1шт.

31

NSS

NOT SOLD SEPARAT

PIN - roll, 3/16 x 1/2 inch

1шт.

32

NSS

NOT SOLD SEPARAT

PISTON - pump

1шт.

33

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

34

1288976C91

REMAN-HYD PUMP

1шт.

34

1949241C1

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP - N.A. Only

1шт.

35

NSS

NOT SOLD SEPARAT

O-RING - valve port plug

1шт.

Part of O-ring, seal and gasket kit P/N 1263244C2

1шт.

36

NSS

NOT SOLD SEPARAT

RING - retainer

1шт.

37

NSS

NOT SOLD SEPARAT

COMPENSATOR ASSEMBLY - pump, order 1986597C1 kit shown on Figure: 5-22

1шт.

38

NSS

NOT SOLD SEPARAT

O-RING - compensator

1шт.

Part of O-ring, seal and gasket kit P/N 1263244C2

1шт.

39

NSS

NOT SOLD SEPARAT

BLOCK - valve, pump

1шт.

40

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

41

NSS

NOT SOLD SEPARAT

VALVE - check

1шт.

42

NSS

NOT SOLD SEPARAT

SPRING - valve block

1шт.

43

NSS

NOT SOLD SEPARAT

PIN - headless, 1/4 x 1/2 inch

1шт.

44

NSS

NOT SOLD SEPARAT

PIN - housing to valve block

2шт.

45

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

1263244C2

PACKAGE

KIT - O-ring, seal and gasket, Includes Refs. 35 and 38 this figure, 23 - 26 figure 5-18, and 5, 8, and 9 figure 5-22

1шт.
