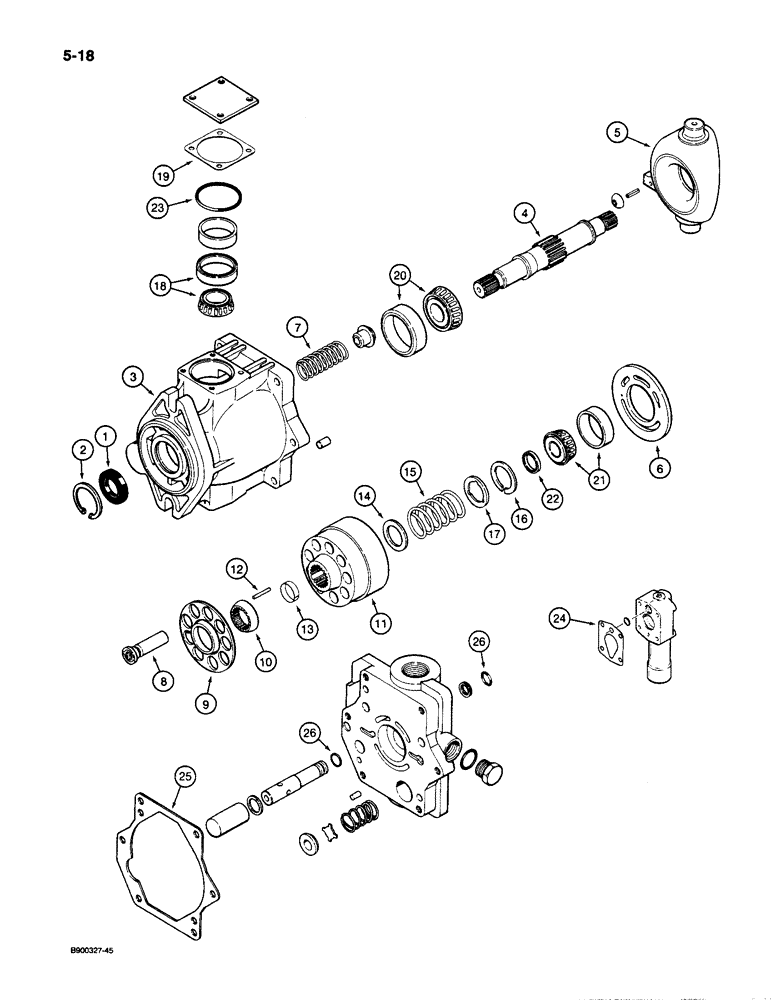

Запчасти Case 1085C (5-18) - STEERING AND CONTROL PUMP (05) - STEERING

1978376C1

PUMP

ASSEMBLY - steering and control, see Figure: 5-08 for mounting hardware, Includes: Ref. 1 - 26 and 27 - 45 on figure 5-20

1шт.

1

145587C1

SEAL

- lip

1шт.

2

309107R1

SNAP RING,1.75", Int, #175

Ring, Snap, 1.75", Int, #175

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

4

1263234C1

SHAFT

- drive

1шт.

5

1263235C1

YOKE

- swing

1шт.

6

A47302

PLATE

- wafer

1шт.

7

1263237C1

SPRING

- yoke

1шт.

A49787

KIT

- rotating group, Includes: Ref. 8 - 17

1шт.

8

NSS

NOT SOLD SEPARAT

PISTON - pump

9шт.

9

NSS

NOT SOLD SEPARAT

PLATE - piston shoe

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - spherical

1шт.

11

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

PIN - cylinder block

3шт.

13

NSS

NOT SOLD SEPARAT

RETAINER - pin

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER - spring, front

1шт.

15

NSS

NOT SOLD SEPARAT

SPRING - cylinder block

1шт.

16

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

17

NSS

NOT SOLD SEPARAT

WASHER - spring, notched ID

1шт.

1263241C1

WHEEL BEARING KIT

KIT - yoke bearing, Includes: Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

BEARING - yoke

2шт.

19

NSS

NOT SOLD SEPARAT

KIT - shim

1шт.

1263242C1

KIT

- shaft bearing, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

BEARING - shaft, yoke end

1шт.

21

NSS

NOT SOLD SEPARAT

BEARING - shaft, valve block end

1шт.

145582C91

PACKAGE

KIT - spacer

1шт.

22

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.139 inch

1шт.

22

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.142 inch

1шт.

22

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.145 inch

1шт.

22

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.148 inch

1шт.

22

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.151 inch

1шт.

22

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.154 inch

1шт.

22

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.157 inch

1шт.

22

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.160 inch

1шт.

22

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.163 inch

1шт.

22

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.166 inch

1шт.

22

NSS

NOT SOLD SEPARAT

SPACER - bearing, 0.169 inch

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - cover

2шт.

Part of O-ring, seal and gasket kit P/N 1263244C2

1шт.

24

NSS

NOT SOLD SEPARAT

GASKET -, Serial Range: compensator-pump

1шт.

Part of O-ring, seal and gasket kit P/N 1263244C2

1шт.

25

NSS

NOT SOLD SEPARAT

GASKET - valve block

1шт.

Part of O-ring, seal and gasket kit P/N 1263244C2

1шт.

26

NSS

NOT SOLD SEPARAT

O-RING - piston rod

2шт.

Part of O-ring, seal and gasket kit P/N 1263244C2

1шт.

1263244C2

PACKAGE

KIT - O-ring, seal and gasket, Includes Refs. 23, 24, 25 and 26 this figure, 35 and 38 on figure 5-20, and 5, 8, and 9 on figure 5-22

1шт.
