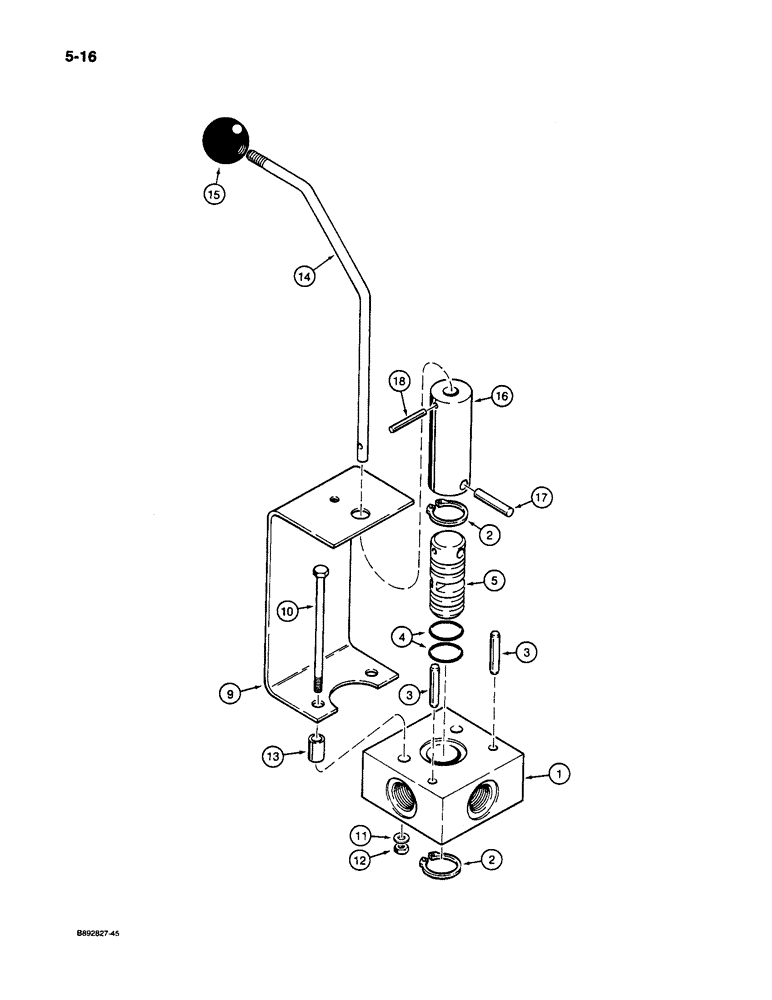

Запчасти Case 1085C (5-16) - STEERING REVERSAL VALVE AND MOUNTING (05) - STEERING

S239555

VALVE

ASSEMBLY - steering reversal, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - steering reversal valve

1шт.

2

B18206

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

2шт.

3

138-153

LOCK PIN,5/16" x 1", Slotted

PIN, , Valve body 5/16" x 1", Slotted

2шт.

4

N60361

O-RING

- spool

2шт.

5

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

6

NSS

NOT SOLD SEPARAT

HANDLE - valve, not shown, discard and use item 14 handle for service

1шт.

7

NSS

NOT SOLD SEPARAT

KNOB - handle, not shown, discard and use item 15 knob for service

1шт.

8

NSS

NOT SOLD SEPARAT

PIN - roll, spool, not shown, discard and use item 17 roll pin for service

1шт.

9

S243393

BRACKET

- mounting

1шт.

10

413-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

- hex, 5/16 NC x 3-3/4 inch

2шт.

11

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

12

231-1445

NUT,5/16"-18, GB

NUT - light hex, self-locking, 5/16 inch NC

2шт.

13

A143554

BUSHING

SPACER - mounting bracket

2шт.

14

S243394

HANDLE

- valve

1шт.

15

D49996

KNOB

- handle

1шт.

16

S243392

SHAFT

SLEEVE - spool

1шт.

17

138-160

LOCK PIN,5/16" x 2", Slotted

Pin, 5/16" x 2", Slotted

1шт.

18

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.
