Запчасти Case 1085C (5-14) - STEERING CONTROL VALVE (05) - STEERING

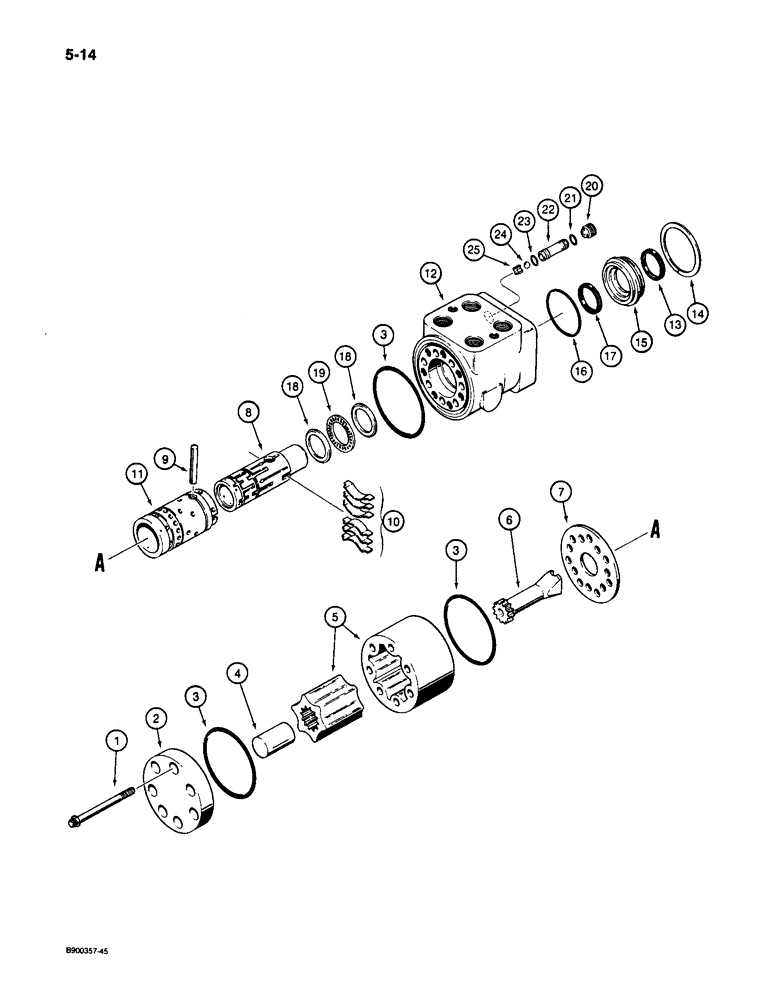

Схема запчастей Case 1085C - (5-14) - STEERING CONTROL VALVE (05) - STEERING

Артикул

Название

Примечание

Количество

1978377C1

VALVE

ASSEMBLY - steering control, see Figure 5-02, items 27 and 28 for mounting hardware, Includes: Ref. 1 - 25

1шт.

1

166-534

12 PT SCREW,Flg, 5/16" - 24 x 3", Gr 8

BOLT - Ferry head, 5/16 NF x 3 inch, grade 8

7шт.

2

D82809

COVER

CAP - end

1шт.

3

N6392

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

- housing

3шт.

Part of seal kit P/N D82802

1шт.

4

D51216

SPACER

- internal

1шт.

5

D82808

KIT

SET - gear, rotor and stator

1шт.

6

L30878

DRIVE SHAFT

SHAFT - drive, gear set

1шт.

7

S113037

PLATE

- spacer

1шт.

N60338

HOUSING

AND SPOOL ASSEMBLY - control valve, Includes: Ref. 8 - 12

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - sleeve

1шт.

9

L30888

PIN

- sleeve

1шт.

10

L30889

SPRING

- spool

6шт.

11

NSS

NOT SOLD SEPARAT

SLEEVE - spacer plate

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - steering control valve

1шт.

13

A28211

OIL SEAL

- spool, gland

1шт.

Part of seal kit P/N D82802

1шт.

14

S110169

WASHER

RING - retaining, gland

1шт.

15

S110170

BUSHING

GLAND - spool

1шт.

16

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

Gland, inner -225, 70 Duro, 1.859" ID x .139" Thk

1шт.

Part of seal kit P/N D82802

1шт.

17

S62820

RING

- quad, gland

1шт.

Part of seal kit P/N D82802

1шт.

18

D82804

RACE

WASHER - thrust, spool

2шт.

19

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Needle, Spool

1шт.

20

D82805

SET SCREW

SCREW - set, housing

1шт.

21

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- seat, outer

1шт.

Part of seal kit P/N D82802

1шт.

22

D82806

VALVE SEAT

SEAT - ball retainer

1шт.

23

L30893

O-RING,1/16" Thk x 5/16" ID

- seat, inner, 7/16 x 5/16 x 1/16 in

1шт.

Part of seal kit P/N D82802

1шт.

24

211-208

BALL,5/16" Dia

- 5/16 inch, grade 25, chrome alloy steel

1шт.

25

L35368

RETAINER

- ball

1шт.

D82802

SEAL PACKAGE

KIT - seal, Includes Refs. 3, 13, 16, 17, 21 and 23

1шт.

Выбрано товаров: 34
