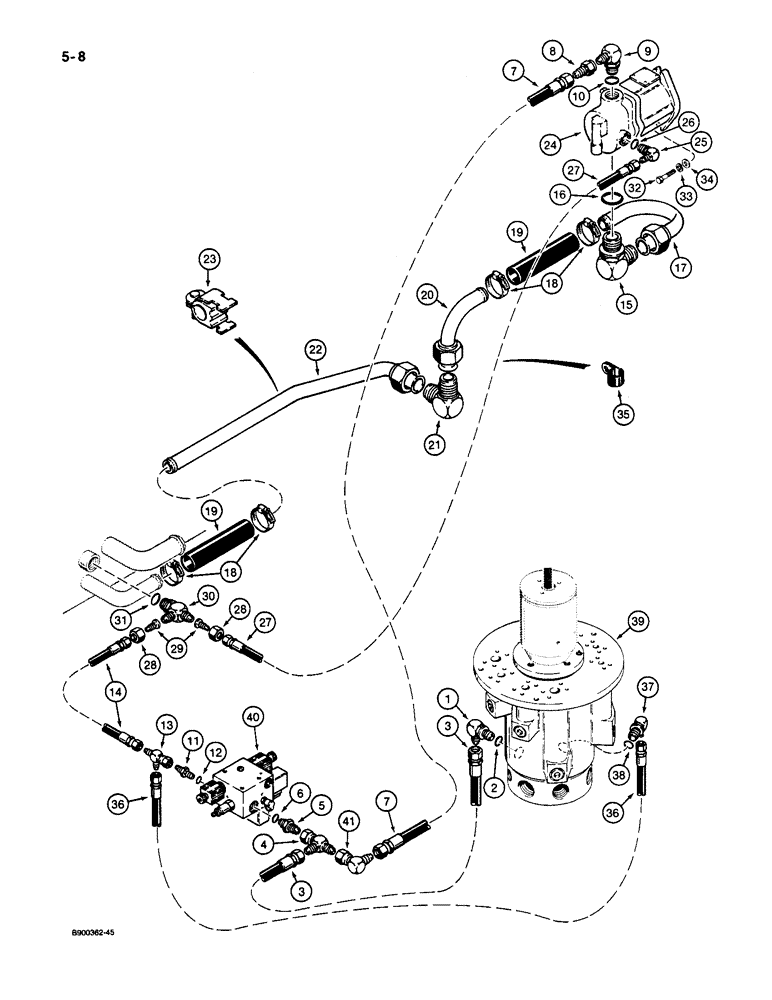

Запчасти Case 1085C (5-08) - LOWER STEERING HYDRAULIC CIRCUIT, HYDRAULIC SWIVEL TO STEERING AND CONTROL PUMP (05) - STEERING

1

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree adj, 7/8-14 flare x 1-1/16 inch O-ring, Includes: Ref. 2

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

3

S8577

HOSE

- 20 inch long, at swivel port 6

1шт.

4

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- 7/8-14 inch flare branch x flare x adj straight thread

1шт.

5

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss, Incl. Ref. 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

S8582

HOSE ASSY.

HOSE - 60 inch, from steering and control pump to swivel port 6

1шт.

8

218-785

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

- 1-1/16-12 fem straight thread x 7/8-14 inch flare

1шт.

9

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 deg adj, 1-1/16-12 flare x 1-5/16-12 inch O-ring, Includes: Ref. 10

1шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

11

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 12

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x adj straight thread

1шт.

14

D54320

HOSE

- 12 inch long, to lower manifold valve

1шт.

15

218-5113

ELBOW,90 Degree Elbow, 1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

- 90 degree adj, 1-7/8-12 inch flare x O-ring boss, Includes: Ref. 16

1шт.

16

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

17

S517774

TUBE

- at steering control pump

1шт.

18

214-382

CLAMP - hose

4шт.

19

L127301

HOSE,38.1 mm ID x 230.00 mm

Intermediate 38.1 mm ID x 230.00 mm

2шт.

20

S517772

TUBE

- intermediate

2шт.

21

218-480

FITTING

ELBOW - 90 degree, 1-7/8-12 inch flare

1шт.

22

S517770

TUBE

- to hose at hydraulic reservoir

1шт.

23

S98324

CLAMP

- tube, includes hardware

1шт.

24

1978376C1

PUMP

ASSEMBLY - steering and control, parts list Figure: 5-18

1шт.

25

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree adj, 3/4-16 flare x 7/8-14 inch O-ring, Includes: Ref. 26

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

27

S243639

HOSE ASSY.

HOSE - 1550 mm long, at steering and control pump

1шт.

28

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - hex, 1-1/16-12 inch

2шт.

29

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

- 3/4 tube OD x 3/4-16 inch flare

2шт.

30

218-5585

TEE,37 Degree, 1 1/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12

- 1-1/16-12 fl branch x fl x 1-5/16-12 inch adj O-ring, Includes: Ref. 31

1шт.

31

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

32

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

34

496-31053

WASHER,13.49mm ID x 26.98mm OD x 4.78mm Thk

- flat, 17/32 x 1-1/16 x 3/16 inch, hardened

2шт.

35

T42284

CLAMP

- hose, uses transmission mounting hardware

1шт.

36

S11226

HOSE

- 20 inch long, at swivel port 4

1шт.

37

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree adj, 3/4-16 flare x 1-1/16-12 inch O-ring, Includes: Ref. 38

1шт.

38

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

39

S619177

PIVOT

SWIVEL ASSEMBLY - lower hydraulic, parts list Figure: 8-60

1шт.

40

S517869

VALVE

ASSEMBLY - lower manifold, parts list Figure: 8-118

1шт.

41

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel flare

1шт.
