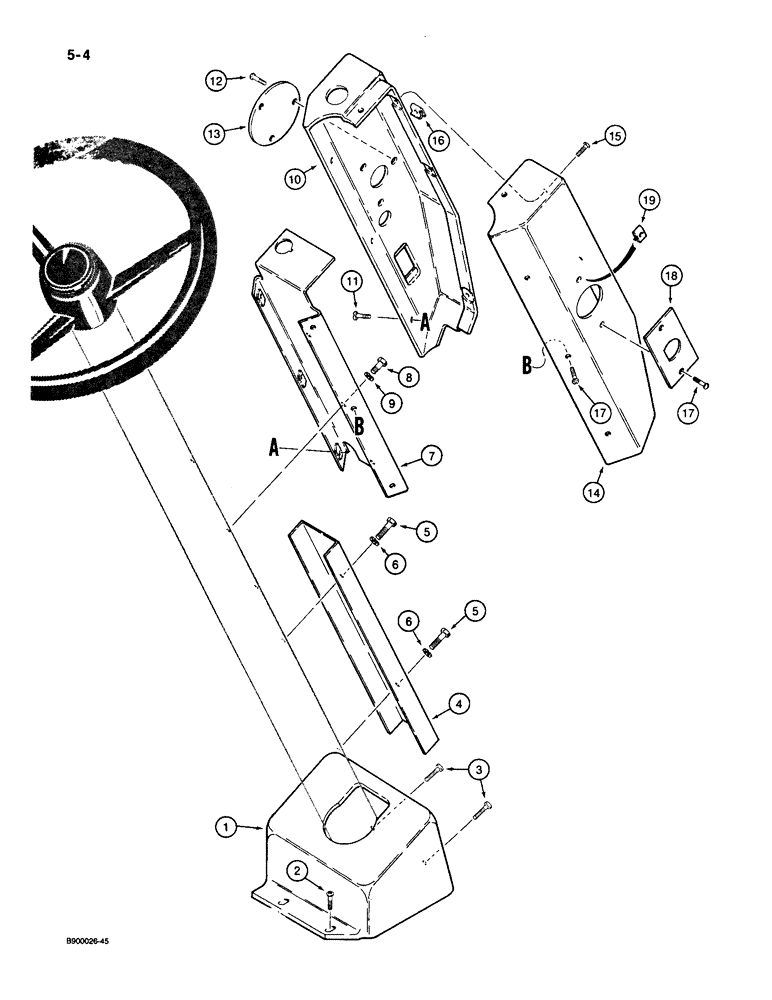

Запчасти Case 1085C (5-04) - STEERING COLUMN CONSOLES AND COVERS (05) - STEERING

1

S517579

COVER

- steering column support

1шт.

2

140-110

SCREW,Cross Pan Hd, #10 - 24 x 1"

- machine, pan Phillips, No. 10 NC x 7/8 inch

2шт.

3

175-474

SCREW - machine, truss head slotted, No. 10 NC x 1/2 inch

2шт.

4

S243384

COVER

- wire, steering column support

1шт.

5

414-416

BOLT,Hex, 1/4" - 28 x 1", Gr 5

- hex, 1/4 NF x 1 inch

2шт.

6

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

S517582

BRACKET

- mounting, steering column

1шт.

8

414-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

3шт.

9

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

10

S619425

CONSOLE

- steering, left-hand

1шт.

11

175-474

SCREW - machine, truss head slotted, No. 10 NC x 1/2 inch

3шт.

12

140-108

SCREW,Cross Pan Hd, #10 - 24 x 3/4"

3шт.

13

S243737

COVER

- left-hand steering console

1шт.

14

S619424

CONSOLE

- steering, right-hand

1шт.

15

175-474

SCREW - machine, truss head slotted, No. 10 NC x 1/2 inch

4шт.

16

S117167

CLIP

NUT - U-type, No. 10 NC

4шт.

17

175-474

SCREW - machine, truss head slotted, No. 10 NC x 1/2 inch

5шт.

18

S242795

PLATE

COVER - right-hand steering console

1шт.

19

131-143

SPRING NUT,Tinn, U, #10-24

2шт.
