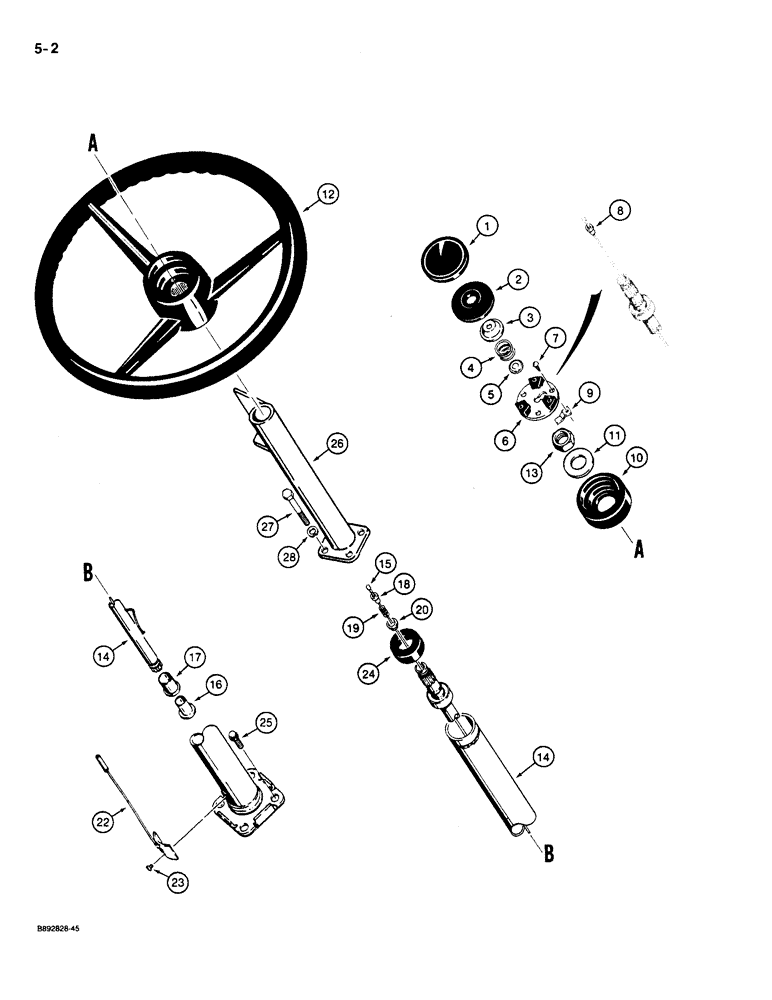

Запчасти Case 1085C (5-02) - STEERING COLUMN (05) - STEERING

L114161

BUTTON

ASSEMBLY - horn, Includes: Ref. 1 - 9

1шт.

1

A13088

CAP

COVER - horn button

1шт.

2

A13089

BUTTON

- horn

1шт.

3

A13092

CAP

CUP - contact

1шт.

4

A13091

SPRING

- horn button

1шт.

5

A13090

CAP

- contact

1шт.

6

N9013

PLATE

- horn

1шт.

7

168-25

DRIVE SCREW,Type U, Rnd Hd, #10 x 5/8"

- self-tapping, No. 10 NC x 5/8 inch

3шт.

8

A13058

FERRULE

INSULATOR - terminal

1шт.

9

N14635

CLIP

SPRING - insulator

1шт.

10

L60175

ADAPTER

- horn button

1шт.

11

495-81262

WASHER,1.02" ID x 2" OD x 0.05" Thk

- flat, 1-1/64 x 2 x 1/8 inch

1шт.

12

A65544

STEERING WHEEL

1шт.

13

L33715

JAM NUT

- steering wheel retaining

1шт.

S238868

STEERING COLUMN

COLUMN ASSEMBLY - steering, Includes: Ref. 14 - 25

1шт.

14

NSS

NOT SOLD SEPARAT

COLUMN - with shaft

1шт.

15

N60346

ELECTRICAL WIRE

WIRE - with terminal

1шт.

16

S63470

INSULATOR

- plastic ring

1шт.

17

S63469

RING

- contact

1шт.

18

S63454

CONTACT

INSULATOR - terminal

1шт.

19

S63458

CONTACT

SPRING - insulator

1шт.

20

S63467

WASHER

RETAINER - spring

1шт.

S109356

BRUSH, COMMUTATOR

KIT - insulator and brush, Includes: Ref. 21 and 22

1шт.

21

NSS

NOT SOLD SEPARAT

PACKAGE - grease, not shown

1шт.

22

NSS

NOT SOLD SEPARAT

INSULATOR - with brush, steering column

1шт.

23

187-1116

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/4"

SCREW - pan Phillips, self-tapping, No. 10 NC x 1/4 inch

2шт.

24

S115351

CAP

SEAL - steering column

1шт.

25

166-43

12 PT SCREW,Flg, 3/8" - 16 x 3/4", Gr 8

BOLT - Ferry head, 3/8 NC x 3/4 inch, grade 8, used for shipping purposes, see items 27 and 28

2шт.

26

S517587

SUPPORT

- steering column

1шт.

27

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

4шт.

28

492-11038

LOCK WASHER,3/8"

4шт.
