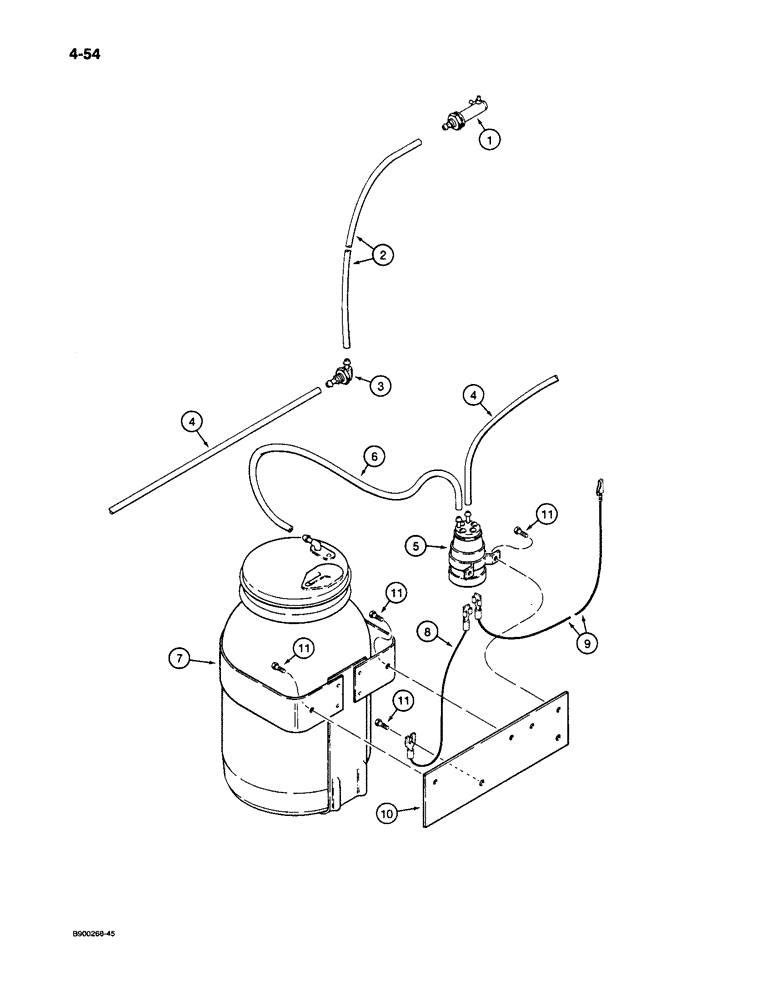

Запчасти Case 1085C (4-54) - WINDSHIELD WASHER (04) - ELECTRICAL SYSTEMS

1

S117715

NOZZLE INJECTION

NOZZLE - windshield washer

1шт.

2

S117556

TUBE,0.25" ID x 73" L

- 73 inch long, elbow to nozzle

1шт.

3

1968053C1

ELBOW

CONNECTOR - bulkhead, 90 degree

1шт.

4

388725R1

PIPE

TUBE - 17 inch long, Serial Range: connector-pump

1шт.

5

S117698

PUMP

- windshield washer, component parts not sold separately

1шт.

6

S117557

TUBE,10" L

- 10 inch long, reservoir to pump, cut from S117556, item 2

1шт.

7

S515124

WASHER

RESERVOIR - windshield washer

1шт.

8

S118706

HARNESS

WIRE - 6 inch long, pump ground

1шт.

9

S118704

HARNESS

WIRE - 23 inch long, washer pump to cab harness

1шт.

10

S243764

BRACKET

PLATE - mounting, reservoir and washer pump

1шт.

11

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

- machine, hex, No. 10 NC x 1/2 inch

6шт.
