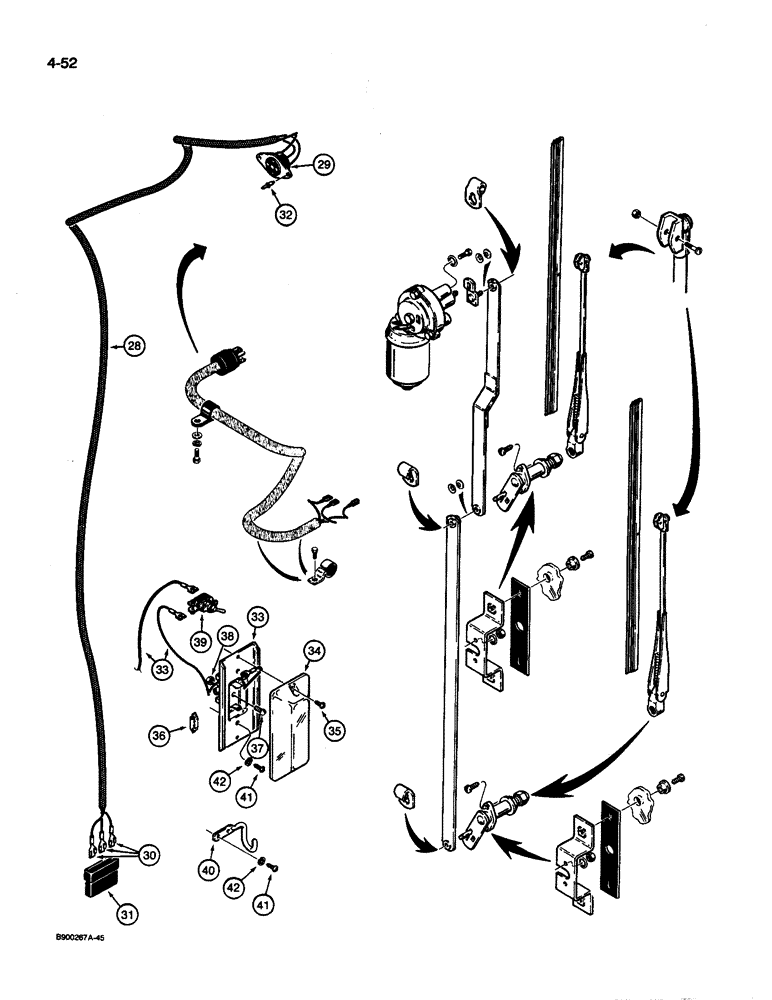

Запчасти Case 1085C (4-52) - WINDSHIELD WIPER AND DOME LAMP, USED WITH EXCAVATOR CAB (04) - ELECTRICAL SYSTEMS

28

S239623

HARNESS

- cab wiring, Includes: Ref. 29 and 30

1шт.

29

S117120

DRAG LINK

SOCKET - female

1шт.

30

223-178

TERMINAL CONNECTOR

TERMINAL - male blade, wire size 14-16

3шт.

31

223-172

CONNECTOR, ELEC

CONNECTOR - female

1шт.

32

151-543

RIVET,Pop, 3.17mm OD x 10.16mm L

- pop, 1/8 inch

2шт.

S239624

LIGHT ASSY.

LAMP ASSEMBLY - dome, Includes: Ref. 33 - 39

1шт.

S117653

COURTESY LIGHT

BODY ASSEMBLY - dome lamp, Includes: Ref. 33 - 38

1шт.

33

NSS

NOT SOLD SEPARAT

BODY - dome lamp, includes wires

1шт.

34

N13033

LENS

- dome lamp

1шт.

35

187-1716

SELF-TAP SCREW,Slotted Pan Hd, #6 x 5/8"

SCREW - self-tapping, pan head, No. 6 NC x 5/8 inch

2шт.

36

F64364

BULB,12V

- dome lamp, No. 561

1шт.

37

182-514

SCREW

- machine, pan head slotted, No. 6 NC x 1/2 inch

1шт.

38

225-14106

NUT,#6-32

1шт.

39

S117668

SWITCH

- toggle, dome lamp

1шт.

40

S61769

HOOK

- coat

1шт.

41

182-526

SCREW,Cross Pan Hd, #10 - 24 x 3/8"

- machine, pan Phillips head, No. 10 NC x 3/8 inch

4шт.

42

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.
